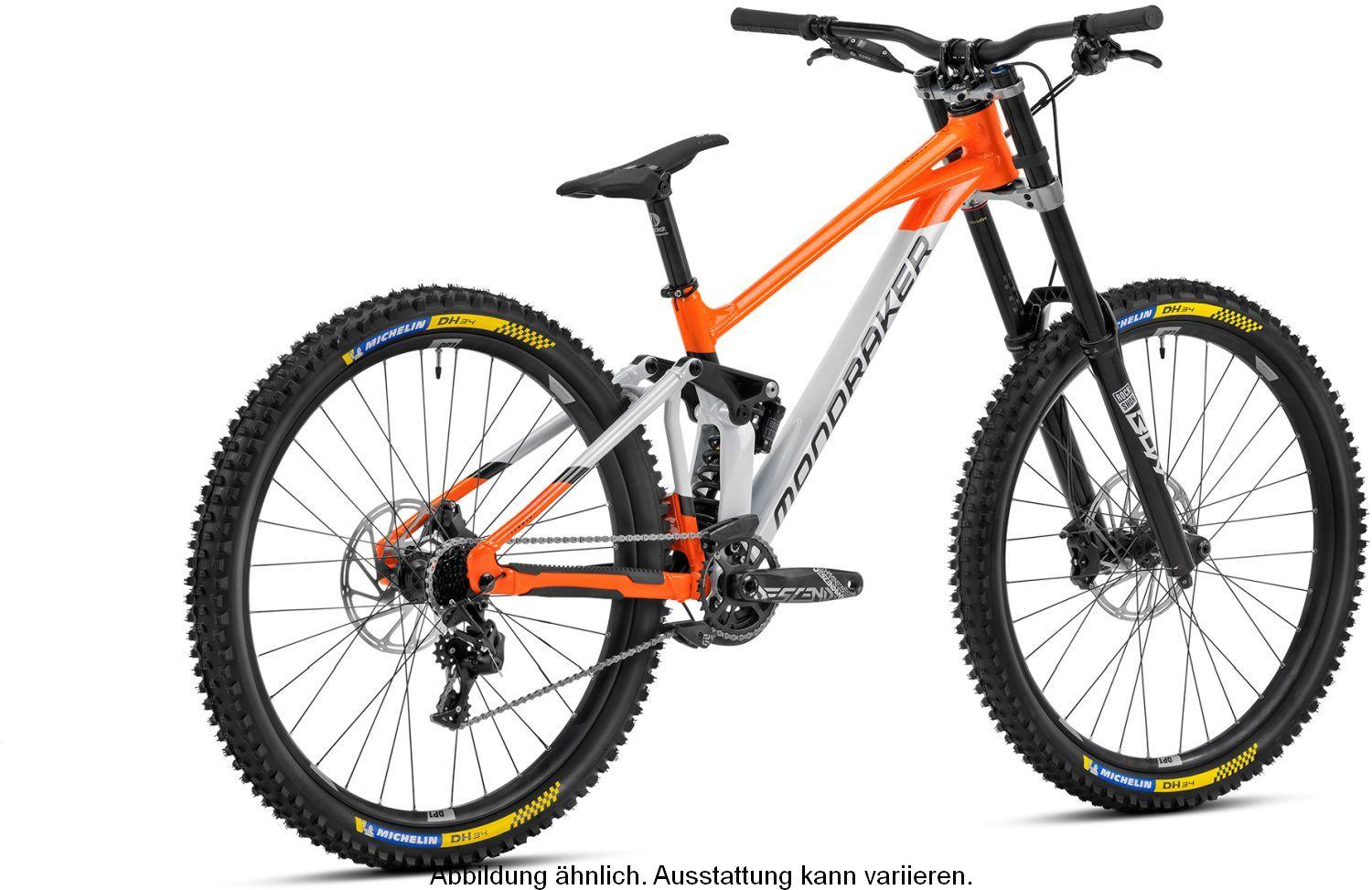

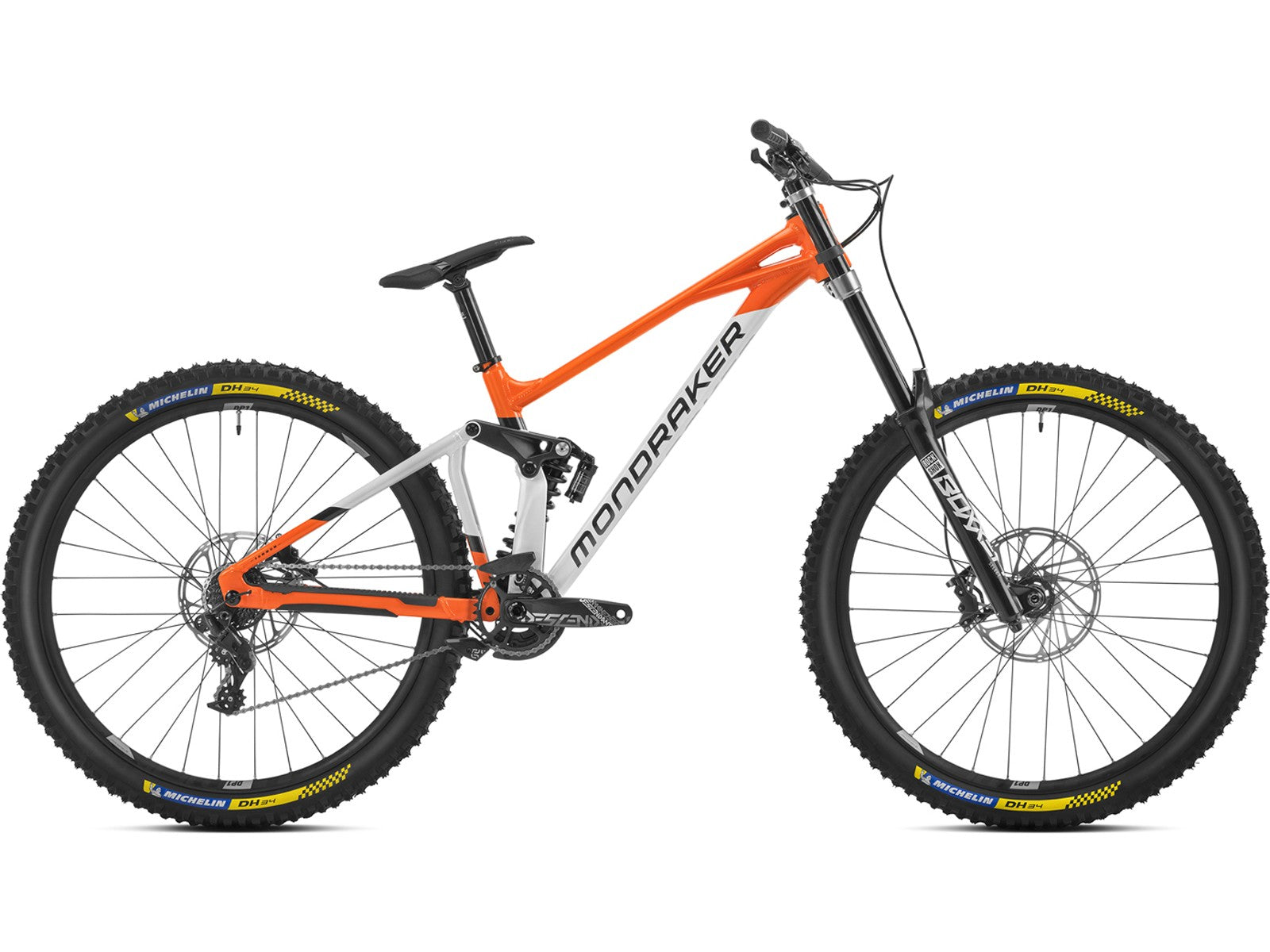

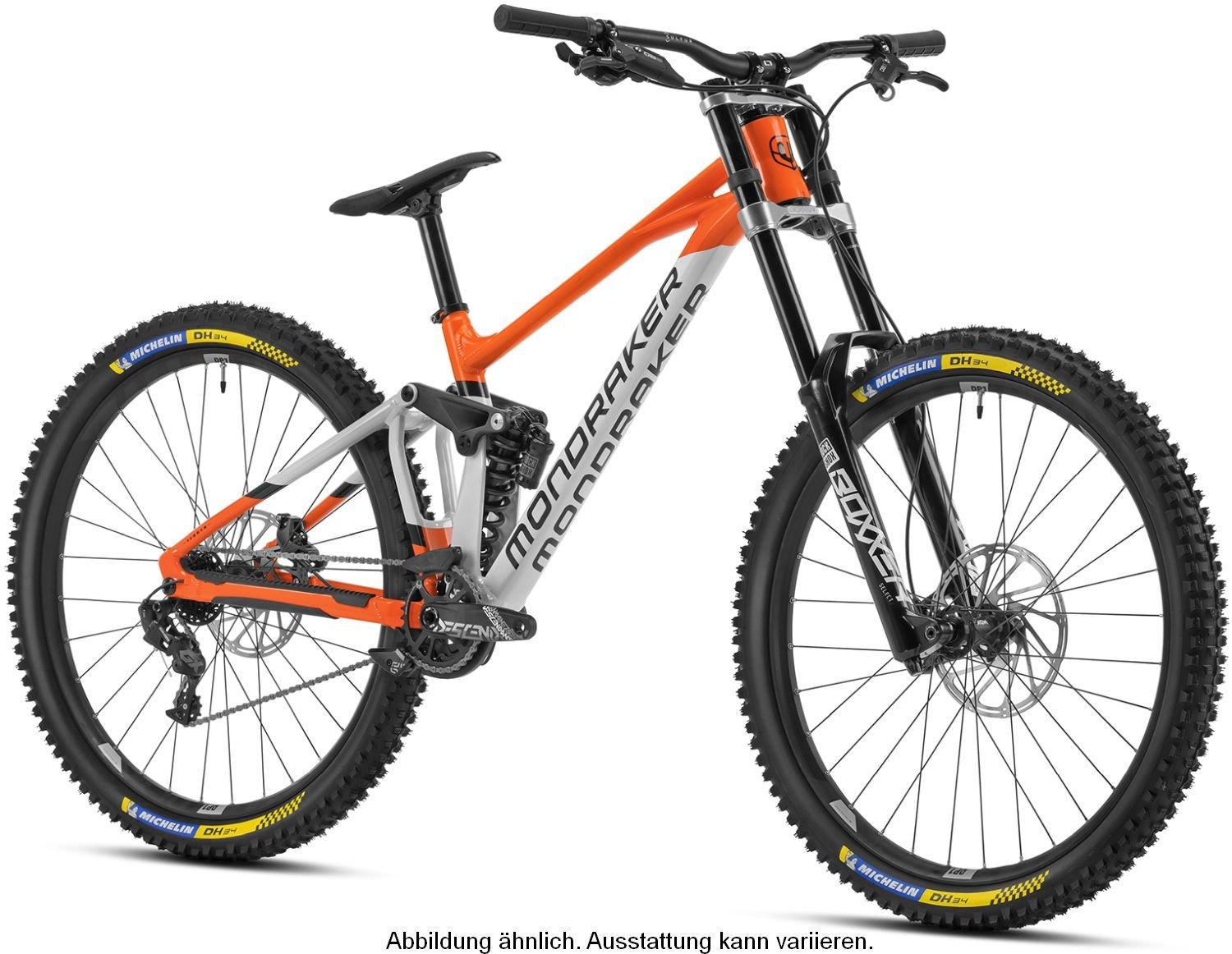

Mondraker Summum MX Gloss Dirty White / Orange 2023 | Mountain bike
As an entry-level model in the SUMMUM model series, this bike embodies our 20-year tradition in building high-performance DH bikes. If you consider all the top positions that were achieved with it in the World Cup and the 2016 championships in Val Di Sole, where first, second and third places were taken on the podium, it is clear that our bikes are among the best in the world. The podium coup in 2016 was a historic milestone that proves that even the simplest bike in a series can make it to the top. It's no surprise that the chassis and key features are identical to those of the SUMMUM CARBON RR that our MS Mondraker Team riders ride. The Geometry Kit is optionally available for this model.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Summum 29 6061 Stealth Evo aluminum, hydroformed tube set, Zero Suspension System, 200mm travel, aluminum upper rocker with damper bearing, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internally routed lines and cables, ISCG 05
Steuersatz
Onoff Mercurium 1.5 ZS for 1-1/8” head tube, 41x30, 15x7x45°x45° sealed ACB bearings, Geometry Kit bearing cups, outer diameter 56mm
Gabel
RockShox Boxxer Select RC 29, 200mm, DebonAir, 1-1/8” head tube, Boost 20x110mm axle, 56mm offset. Settings: low-speed compression, rebound, air pressure
Dämpfer
Rock Shox Super Deluxe Coil Select R, 225x70mm. LNM ST B1, linear rebound, medium compression, preload. Upper mounting: Trunnion, lower bearings 30x8mm
Felge
MDK-DP1 29, 27mm inner width, 32 holes
Naben
VR:MDK DA4371B-M20, Boost 20x110mm, IS 6-hole HR:MDK DA4352B, 12x157mm, sealed bearings, IS 6-hole
Reifen
VR:Michelin DH34 29x2.4, Tubeless Ready, Magi-X DH Compound, double-reinforced DH Shield carcass, clincher. HR:Michelin DH34 29x2.4, Tubeless Ready, Magi-X DH Compound, double-reinforced DH Shield carcass, clincher
Laufradgröße
29"
Schaltwerk
Sram GX DH, 7-speed, medium cage, X-Actuation 1:1
Schalthebel
Sram Trigger GX DH, 7-speed, X-Actuation 1:1
Kette
Sram PC1110, 11-speed, Powerlock
Kurbel
Truvativ Descendant DH, DUB axle, direct mount chainring, 165mm
Kassette
Sram PG 720, 11-25T, 7-speed
Bremsen
Sram DB8, oversized 4-piston brake caliper, one-piece 220mm (front) / 203mm (rear) 6-hole centerline brake disc, sintered brake pads with steel backplate
Lenker
Onoff Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Twin, lock-on single, 135mm
Vorbau
Onoff Krypton DH CNC Integrated FG, 25-30mm length adjustable, 31.8mm handlebar diameter, 6061 aluminum, 2x6mm spacers
Sattel
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura side panels
Sattelstütze
SDG Micro I-Beam SP-751 aluminum, diameter 31.6mm, length 300mm, micro adjustment
Pedale
Nicht im Lieferumfang enthalten
