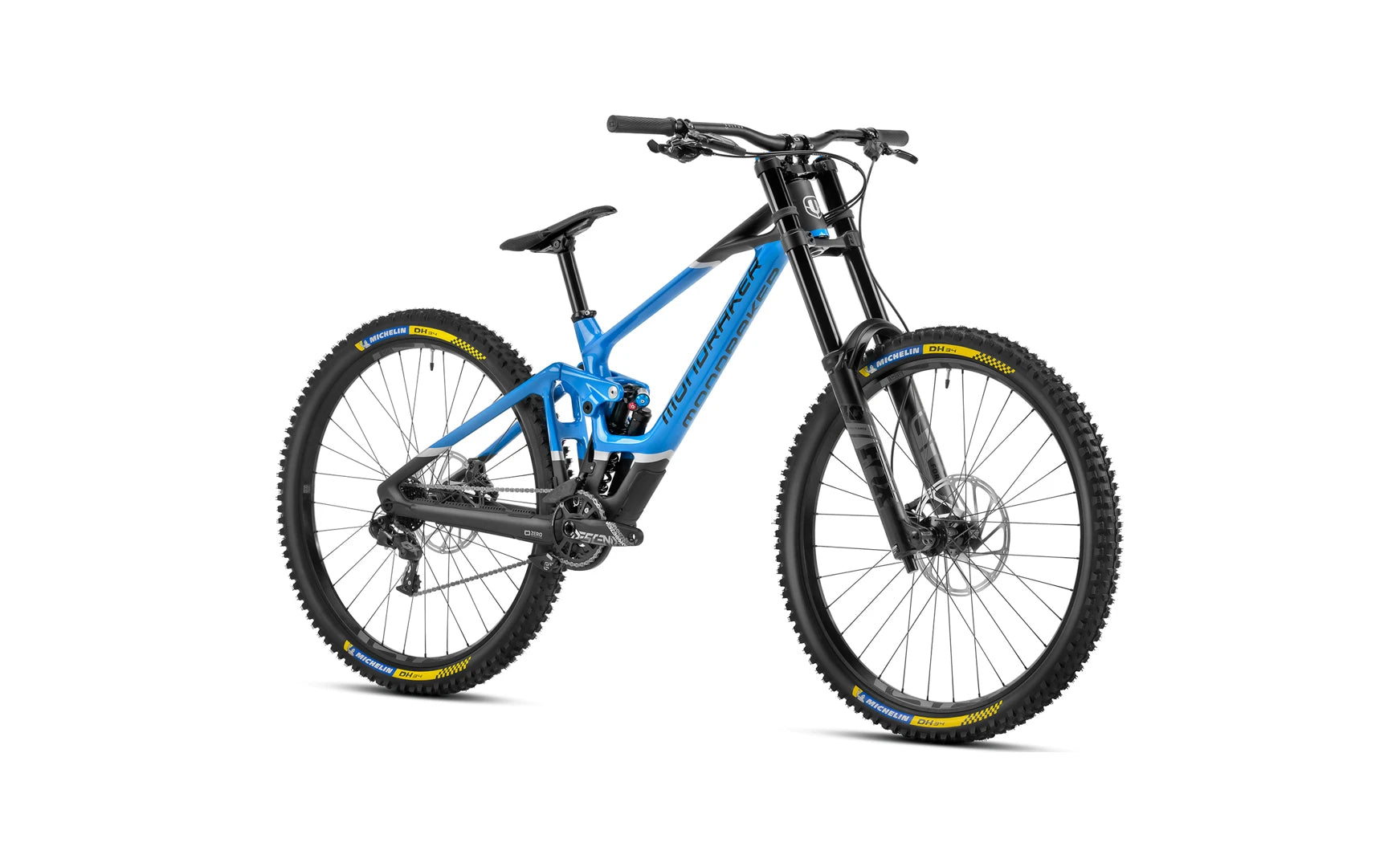

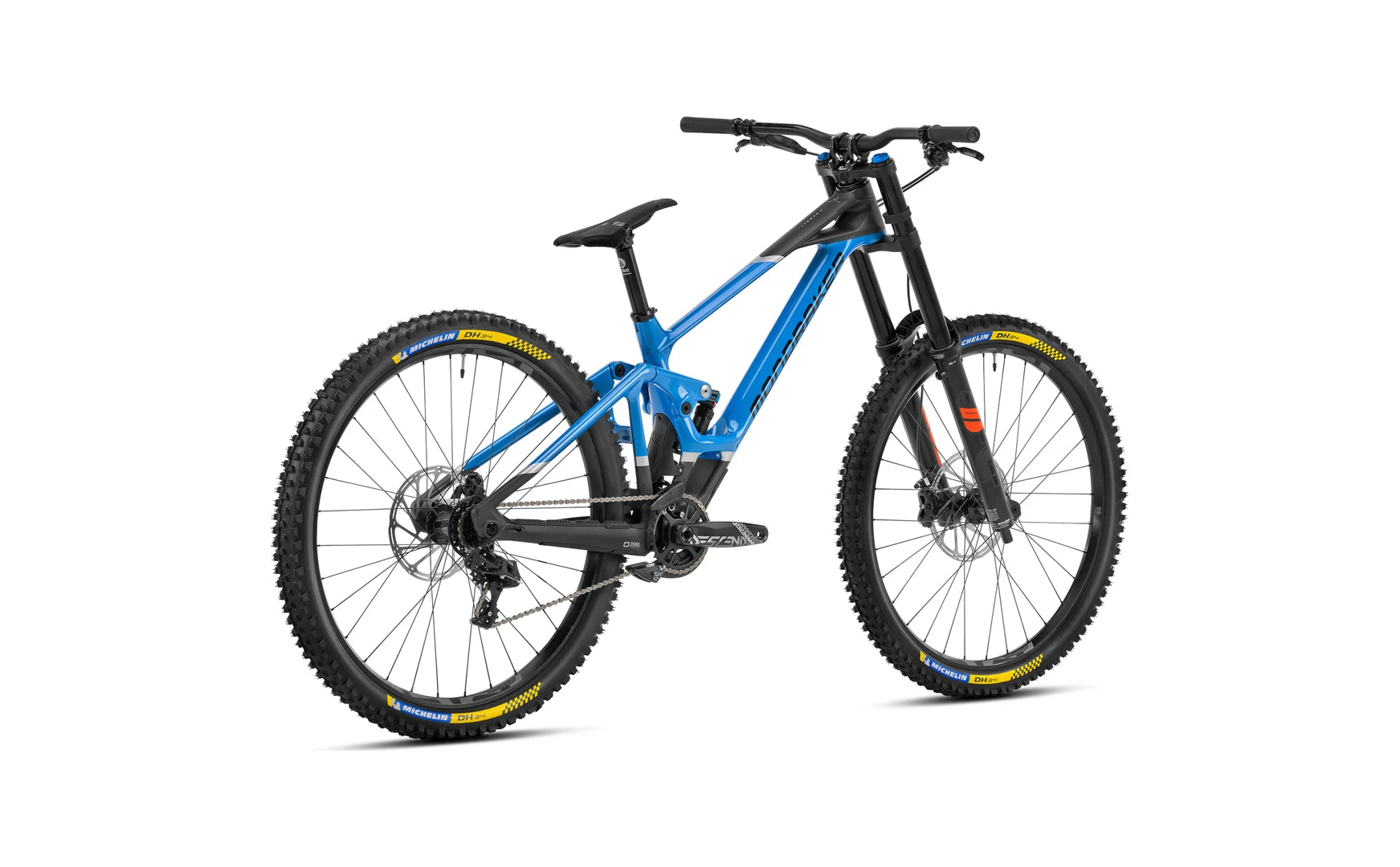

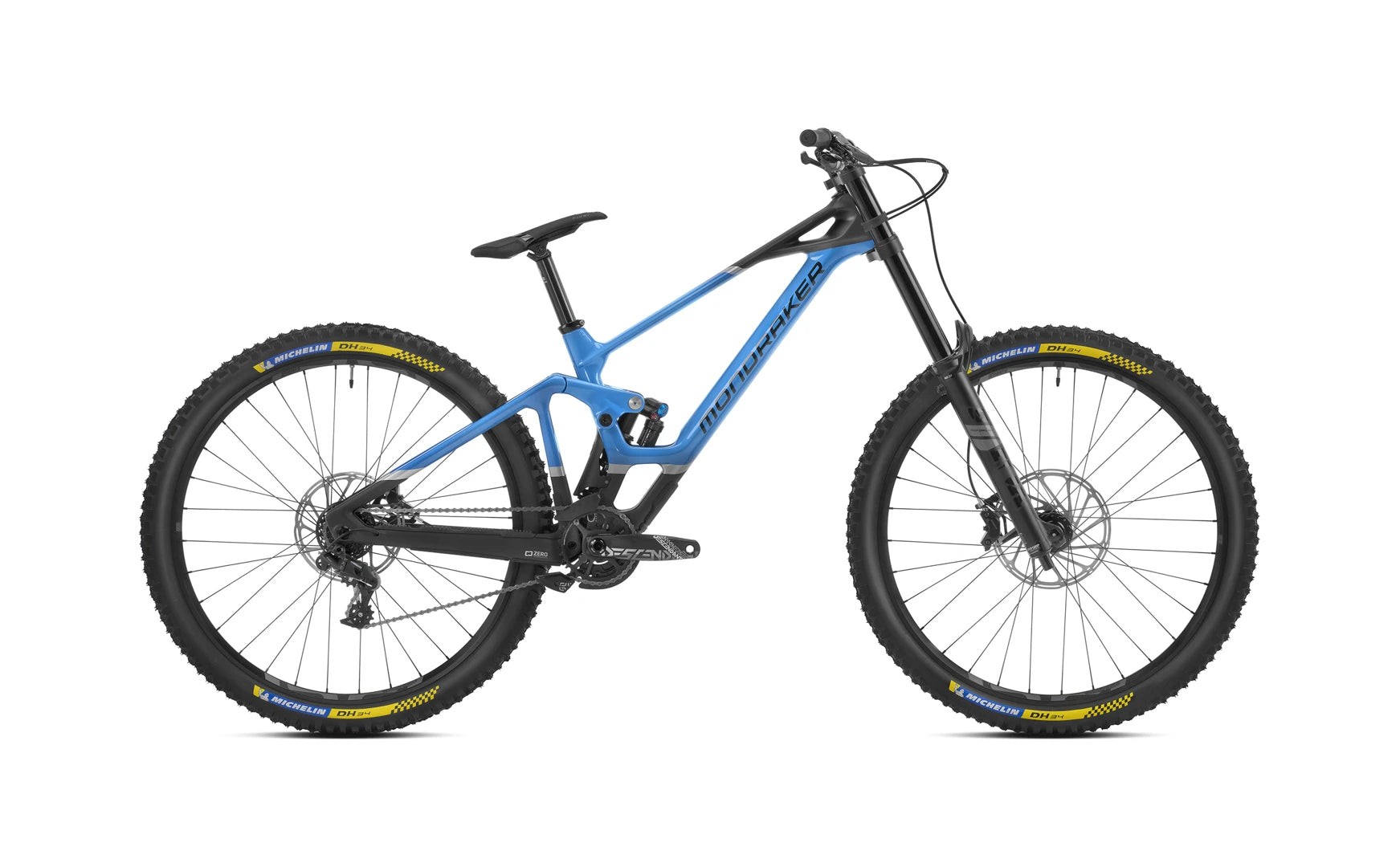

Mondraker Summum Carbon R MX Gloss Marlin Blue / Matte Carbon / Silver 2023 | Mountain bike
The SUMMUM CARBON R has all the great features of the CARBON RR, but with cheaper components. It has the same frame as the Carbon RR and also allows for either a 29" setup or MX, with a 29" wheel at the front and 27.5" at the rear. The SUMMUM CARBON R is light and effective. This makes it the perfect machine to to fight for the podium places in every DH race. The Geometry Kit is optionally available.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Summum Carbon Stealth Air full carbon, Zero Suspension System, 200mm travel, upper rocker carbon monoblock, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internally routed lines and cables, splash guard for shock, ISCG 05
Steuersatz
Onoff Mercurium 1.5 ZS for 1-1/8” head tube, 41x30, 15x7x45°x45° sealed ACB bearings, Geometry Kit bearing cups, outer diameter 56mm
Gabel
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” head tube, 20x110mm axle, 56mm offset. Settings: low-speed compression, low-speed rebound, air pressure
Dämpfer
Fox DHX2 Performance Elite, 225x70mm. Settings: Low-speed compression, low-speed rebound, preload, upper mount: Trunnion, lower bearings: 30x8mm
Felge
e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 aluminum welded, 30mm inner width, tubeless ready, 32 spokes
Naben
FR:e*thirteen Boost 20x110mm, triple sealed, milled aluminum, IS 6-hole HR:e*thirteen SuperBoost 12x157mm, triple sealed, milled aluminum with 6° teeth, IS 6-hole
Reifen
VR:Michelin DH34 29x2.4, Tubeless Ready, Magi-X DH Compound, double-reinforced DH Shield carcass, clincher. HR:Michelin DH34 29x2.4, Tubeless Ready, Magi-X DH Compound, double-reinforced DH Shield carcass, clincher
Laufradgröße
29"
Schaltwerk
Sram GX DH, 7-speed, medium cage, X-Actuation 1:1
Schalthebel
Sram Trigger GX DH, 7-speed, X-Actuation 1:1
Kette
Sram PC1110, 11-speed, Powerlock
Kurbel
Truvativ Descendant DH, DUB axle, direct mount chainring, 165mm
Kassette
Sram PG 720, 11-25T, 7-speed
Bremsen
Sram Code R, oversized 4-piston brake caliper, one-piece 220mm (front) / 203mm (rear) 6-hole centerline brake disc, sintered metal brake pads with steel backplate
Lenker
Onoff Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Desert, lock-on single, 135mm
Vorbau
Onoff Krypton DH CNC Integrated FG, 25-30mm length adjustable, 31.8mm handlebar diameter, 6061 aluminum, 2x6mm spacers
Sattel
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura side panels
Sattelstütze
SDG Micro I-Beam SP-751 aluminum, diameter 31.6mm, length 300mm, micro adjustment
Pedale
Nicht im Lieferumfang enthalten
