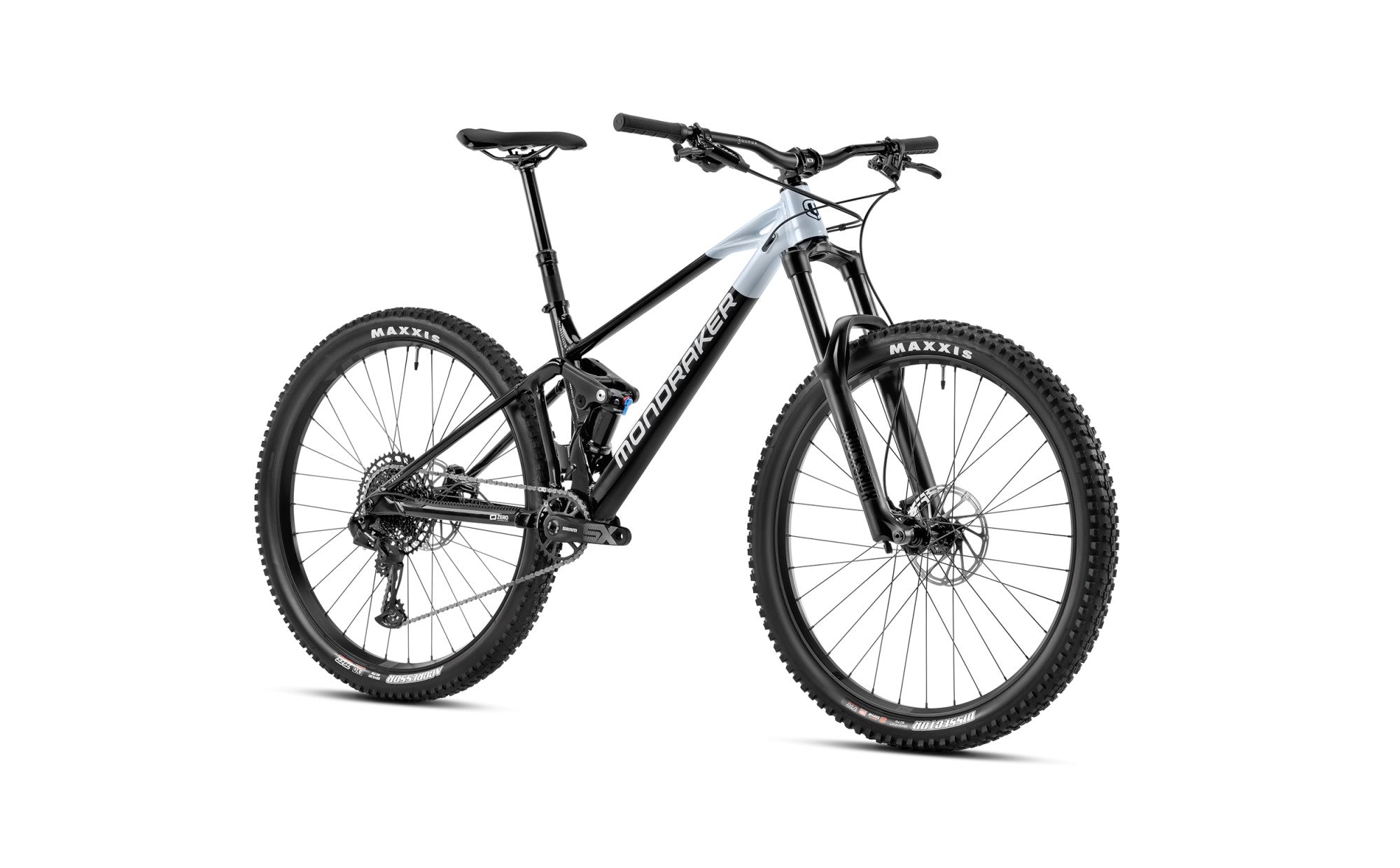

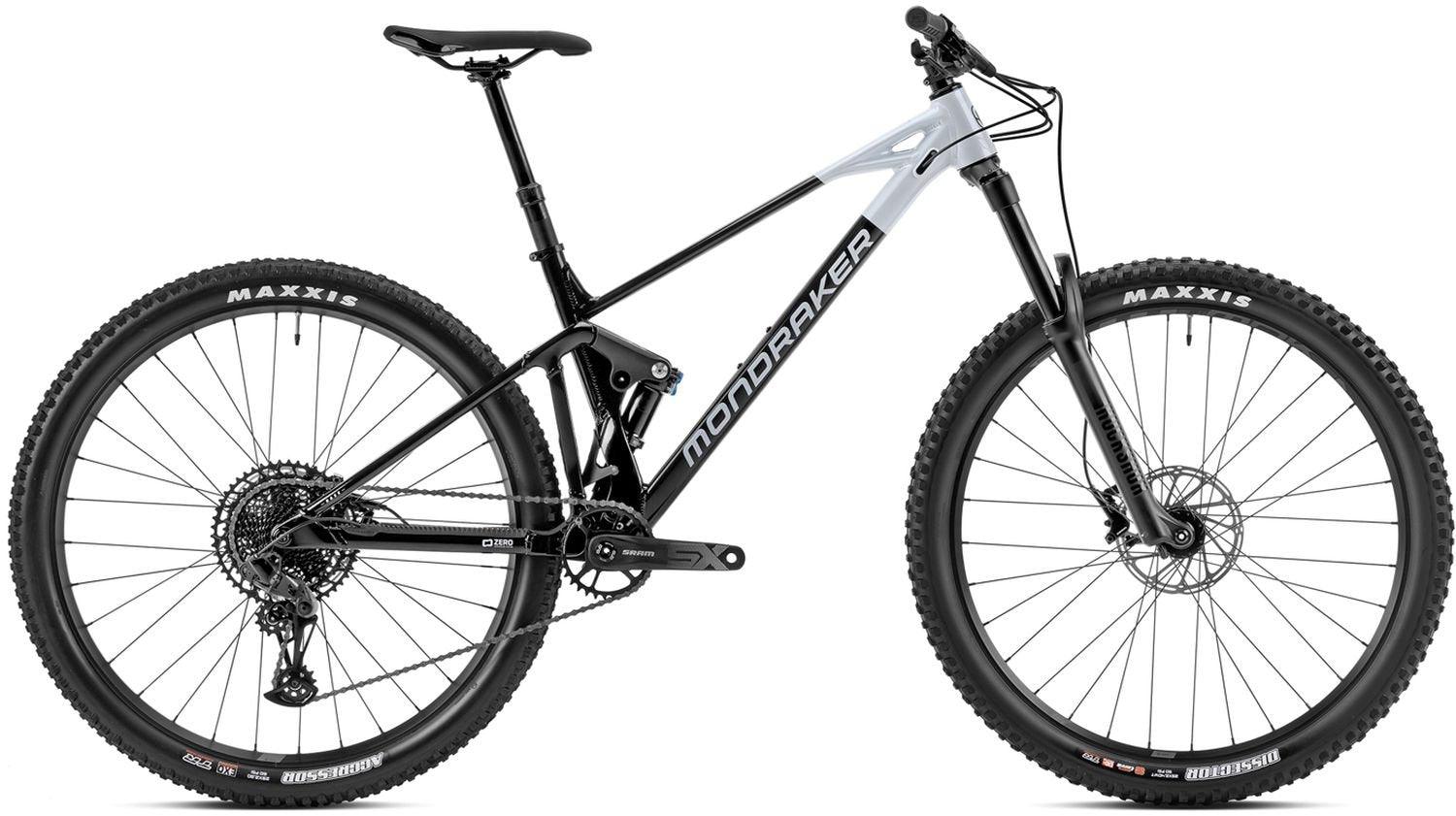

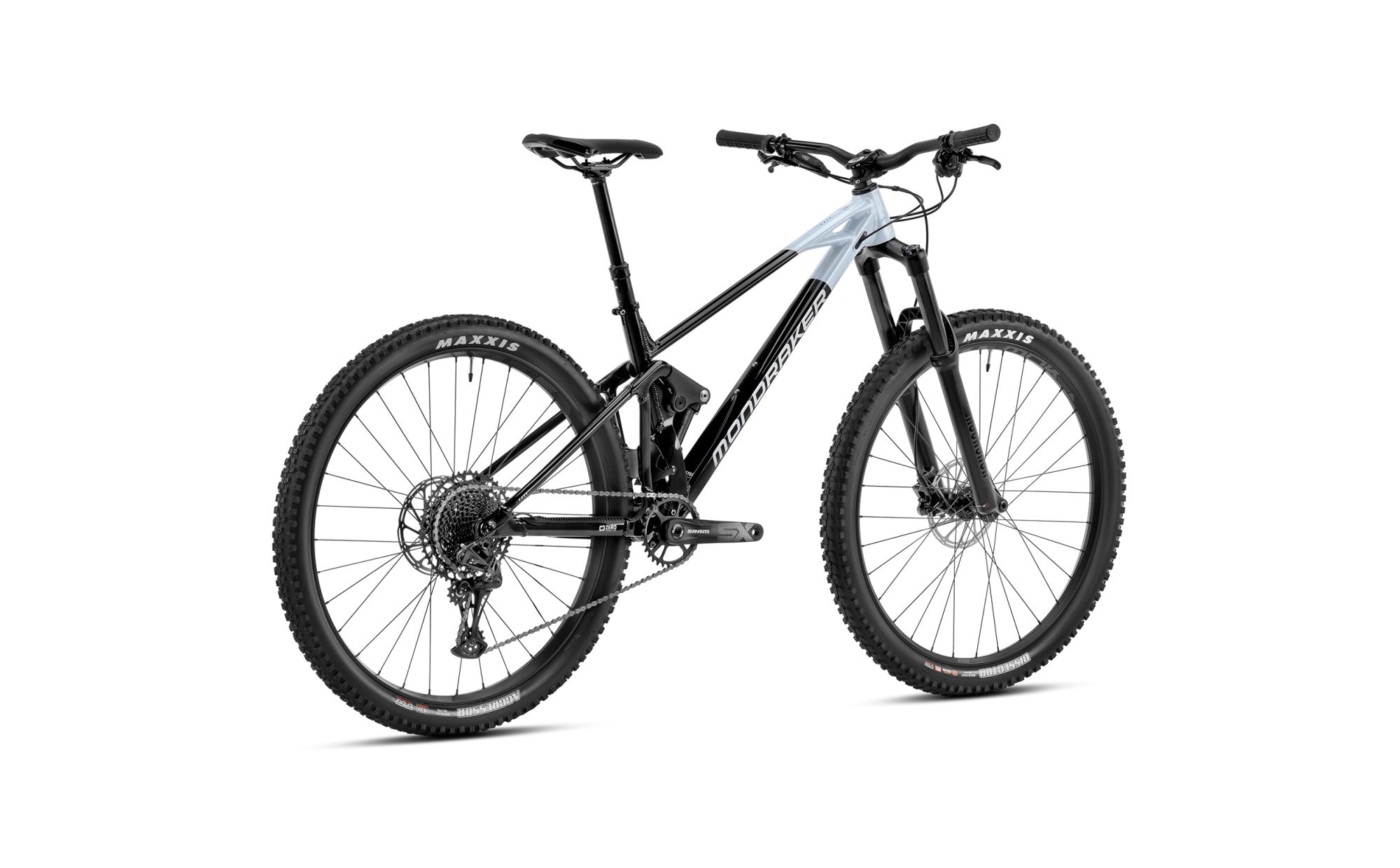

Mondraker Raze Gloss Black / Dirty White 2023 | Mountain bike
Perfect for riders looking for a bike that offers the full package at a reasonable price. Thanks to our exclusive technologies ALLOY STEALTH EVO, FORWARD GEOMETRY and ZERO SUSPENSION SYSTEM, the RAZE is the trail bike that offers you the best performance in its category. And all of this without making you poor! Like all other models in the range, whether carbon or aluminum, the RAZE is based on the philosophy of getting your money's worth both uphill and downhill thanks to its diverse talents. With 150mm of travel at the front and 130mm at the rear, you'll be surprised at how versatile it is and how fun this bike is. The ultimate all-rounder!
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Raze 29 6061 Stealth Evo aluminum, hydroformed tubing, Zero Suspension System, 130mm travel, Boost 12x148 rear axle, 73mm BSA bottom bracket, specific design for 1x drivetrains, sealed "MAX Capacity" bearings, ISCG 05
Steuersatz
Onoff Saturn butted for 1-1/8" to 1-1/2" head tube, sealed ACB bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Gabel
RockShox 35 Gold 29 RL, 150mm, Solo Air, butted head tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: Low-speed compression to lock, rebound, air pressure
Dämpfer
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-stage compression (Open/Mid/Lock), air pressure. Upper mounting: Trunnion, lower bearings: 30x8mm
Felge
MDK-EP1 29, 30mm inner width, tubeless ready, 32 spokes
Naben
VR:Formula DC711, Boost 15x110mm, sealed bearings, IS 6-hole HR:Formula DHT148 Boost 12x148mm, sealed bearings, IS 6-hole
Reifen
VR:Maxxis Dissector 29x2.4 WT, Tubeless Ready, 3C MAXX TERRA Compound, EXO+ puncture protection, 120 TPI, foldable HR:Maxxis Aggressor 29x2.3, Tubeless Ready, Dual Compound, EXO Protection, 60 TPI, foldable
Laufradgröße
29"
Schaltwerk
Sram SX Eagle, Roller Bearing Clutch Type 3, Cage Lock, long cage, 1x12 gear, X-Actuation 1:1
Schalthebel
Sram Trigger SX Eagle, 12-speed, X-Actuation 1:1
Kette
Sram SX Eagle, 12-speed, power lock
Kurbel
Sram SX Eagle, Boost, DUB axle, direct mount chainring, size S/M: 170mm, size L/XL: 175mm
Kassette
Sram PG-1210, 11-50T, 12-speed
Bremsen
Sram Level T, two-piece caliper, one-piece 180mm 6-hole Centerline brake disc, organic brake pads with steel backplate
Lenker
Onoff Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Twin, lock-on single, 135mm
Vorbau
Onoff Sulfur FG 30mm 0º, forged 6061 aluminum, 31.8mm handlebar diameter
Sattel
MDK PU series 2023
Sattelstütze
Onoff Pija retractable, internal cable routing, diameter 31.6mm, size S: 405x95-125mm, size M 458x120-150mm, size L: 498x140-170mm, size XL: 498x140-170mm
Pedale
Nicht im Lieferumfang enthalten
