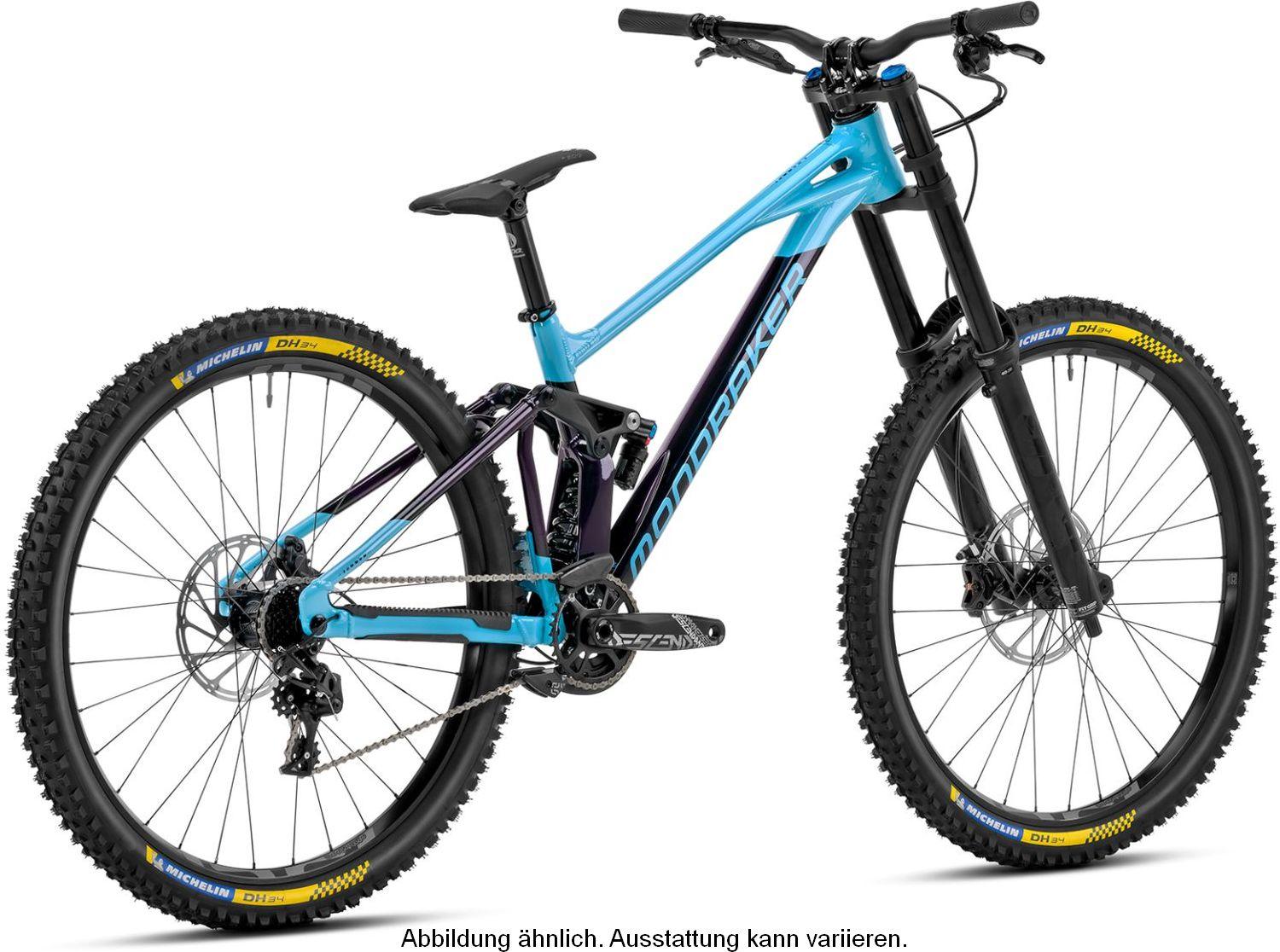

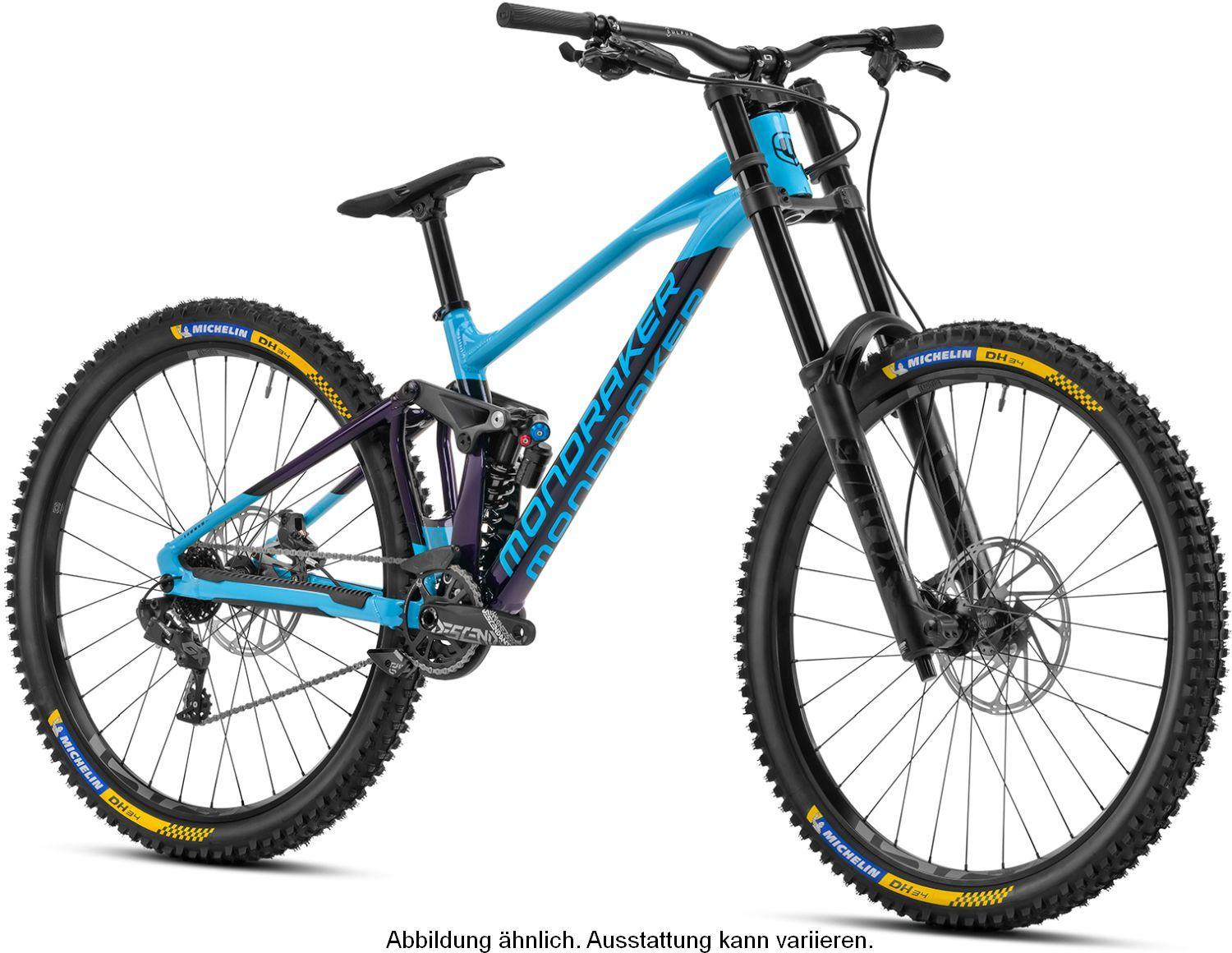

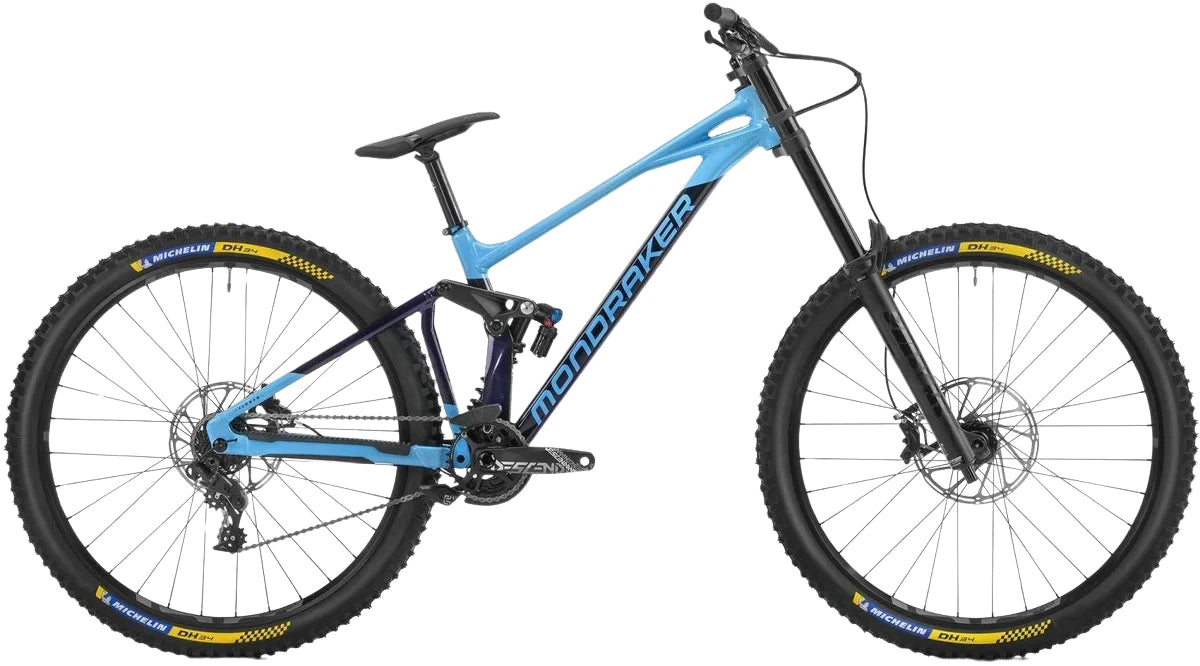

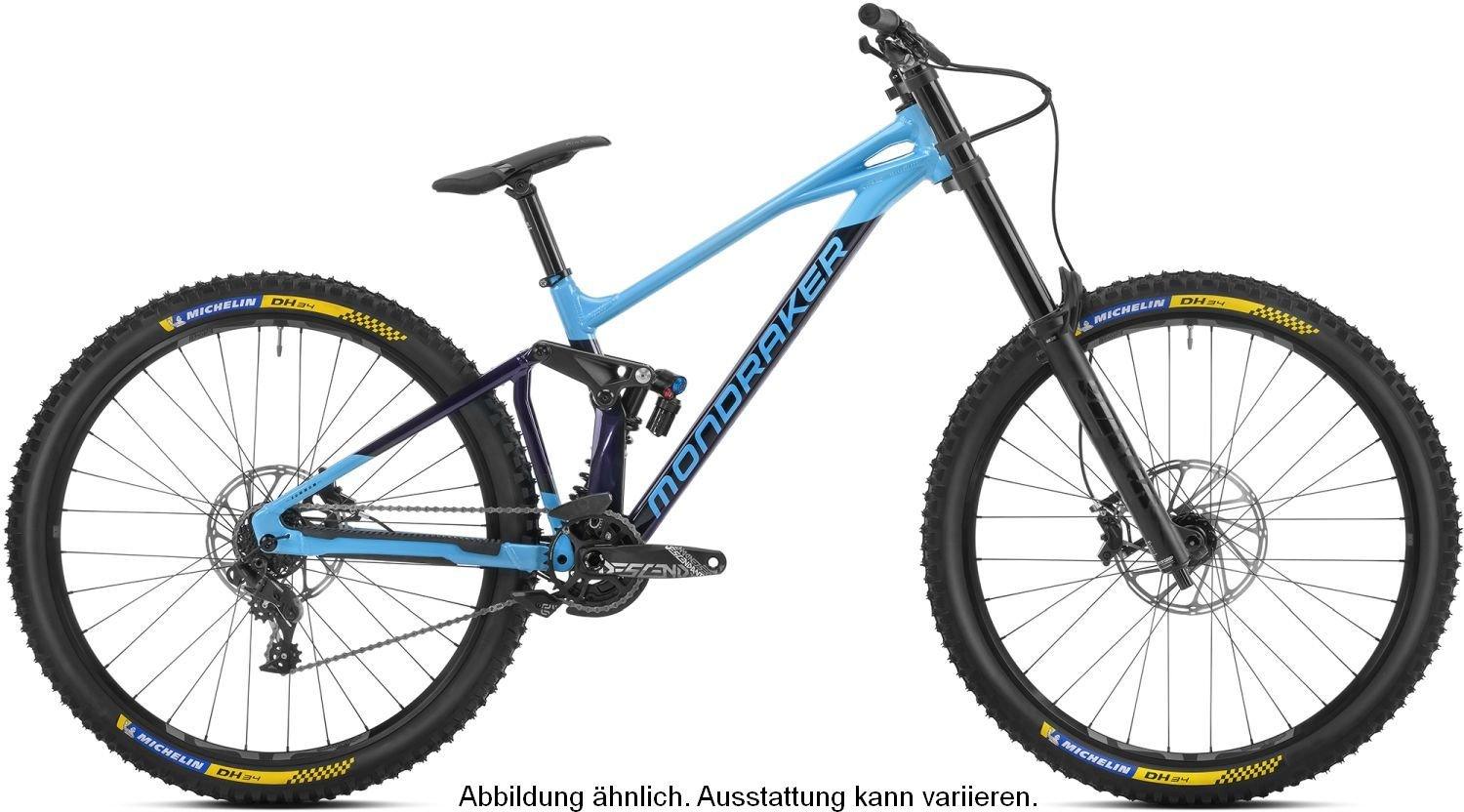

Mondraker Summum R MX Gloss Deep Purple / Light Blue 2023 | Mountain bike
The little brother of the SUMMUM CARBON models features a hydroformed 6061 aluminum frame and our groundbreaking technologies ALLOY STEALTH EVO, ZERO SUSPENSION SYSTEM and FORWARD GEOMETRY. The combination of amazingly low weight and cutting-edge geometry results in breathtaking handling. You can also choose to ride an MX version with a 29" wheel at the front and 27.5" at the rear. With the optional Geometry Kit you can give your bike the perfect polish and adapt the riding characteristics perfectly to your needs.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Summum 29 6061 Stealth Evo aluminum, hydroformed tube set, Zero Suspension System, 200mm travel, aluminum upper rocker with damper bearing, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internally routed lines and cables, ISCG 05
Steuersatz
Onoff Mercurium 1.5 ZS for 1-1/8” head tube, 41x30, 15x7x45°x45° sealed ACB bearings, Geometry Kit bearing cups, outer diameter 56mm
Gabel
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” head tube, 20x110mm axle, 56mm offset. Settings: low-speed compression, low-speed rebound, air pressure
Dämpfer
Fox DHX2 Performance Elite, 225x70mm. Settings: Low-speed compression, low-speed rebound, preload, upper mount: Trunnion, lower bearings: 30x8mm
Felge
e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 aluminum welded, 30mm inner width, tubeless ready, 32 spokes
Naben
VR:e*thirteen Boost 20x110mm, triple sealed, milled aluminum, IS 6-hole HR:e*thirteen SuperBoost 12x157mm, triple sealed, milled aluminum with 6° teeth, IS 6-hole
Reifen
VR:Michelin DH34 29x2.4, Tubeless Ready, Magi-X DH Compound, double-reinforced DH Shield carcass, clincher. HR:Michelin DH34 29x2.4, Tubeless Ready, Magi-X DH Compound, double-reinforced DH Shield carcass, clincher
Laufradgröße
29"
Schaltwerk
Sram GX DH, 7-speed, medium cage, X-Actuation 1:1
Schalthebel
Sram Trigger GX DH, 7-speed, X-Actuation 1:1
Kette
Sram PC1110, 11-speed, Powerlock
Kurbel
Truvativ Descendant DH, DUB axle, direct mount chainring, 165mm
Kassette
Sram PG 720, 11-25T, 7-speed
Bremsen
Sram Code R, oversized 4-piston brake caliper, one-piece 220mm (front) / 203mm (rear) 6-hole centerline brake disc, sintered metal brake pads with steel backplate
Lenker
Onoff Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Desert, lock-on single, 135mm
Vorbau
Onoff Krypton DH CNC Integrated FG, 25-30mm length adjustable, 31.8mm handlebar diameter, 6061 aluminum, 2x6mm spacers
Sattel
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura side panels
Sattelstütze
SDG Micro I-Beam SP-751 aluminum, diameter 31.6mm, length 300mm, micro adjustment
Pedale
Nicht im Lieferumfang enthalten
