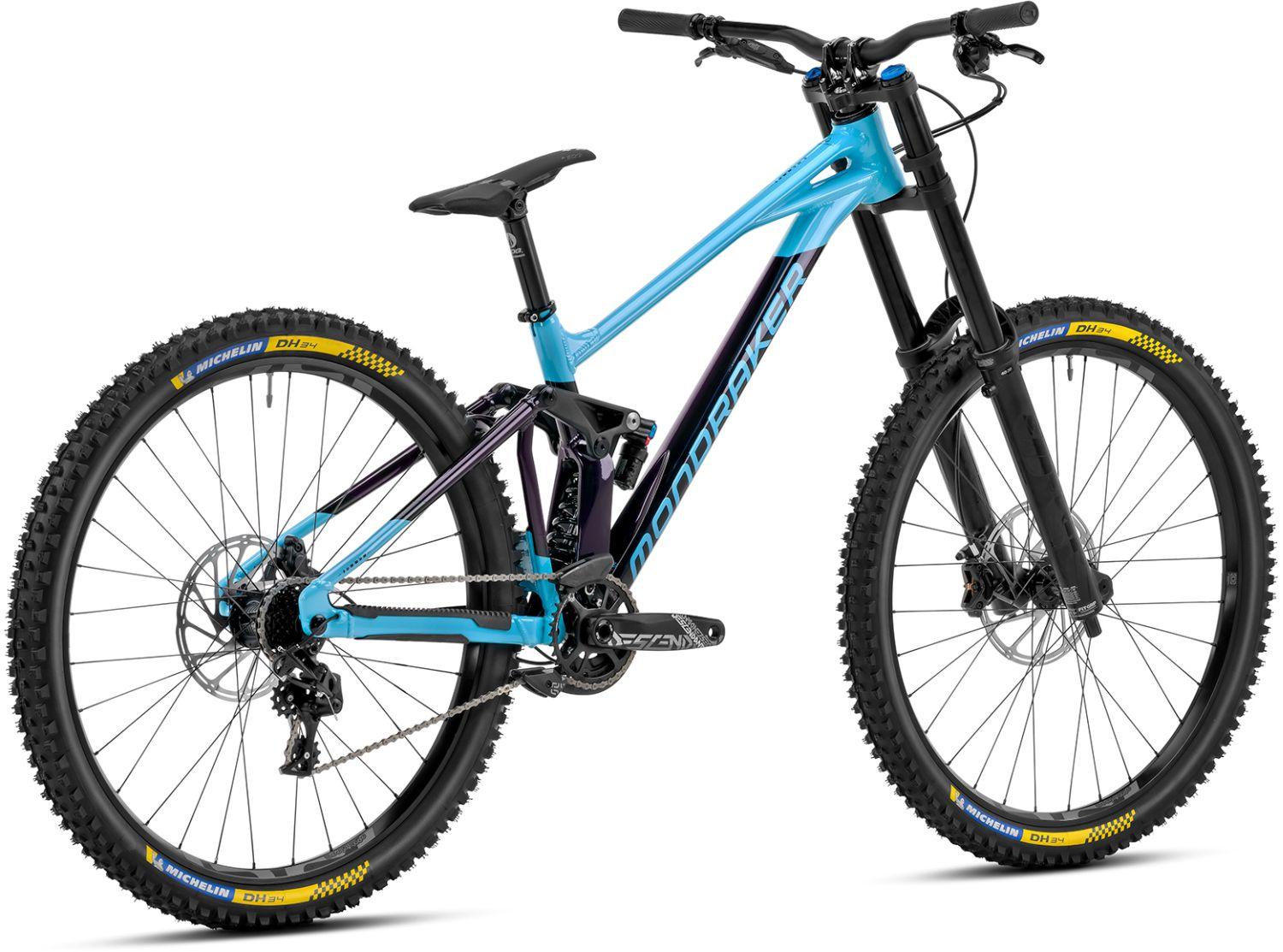

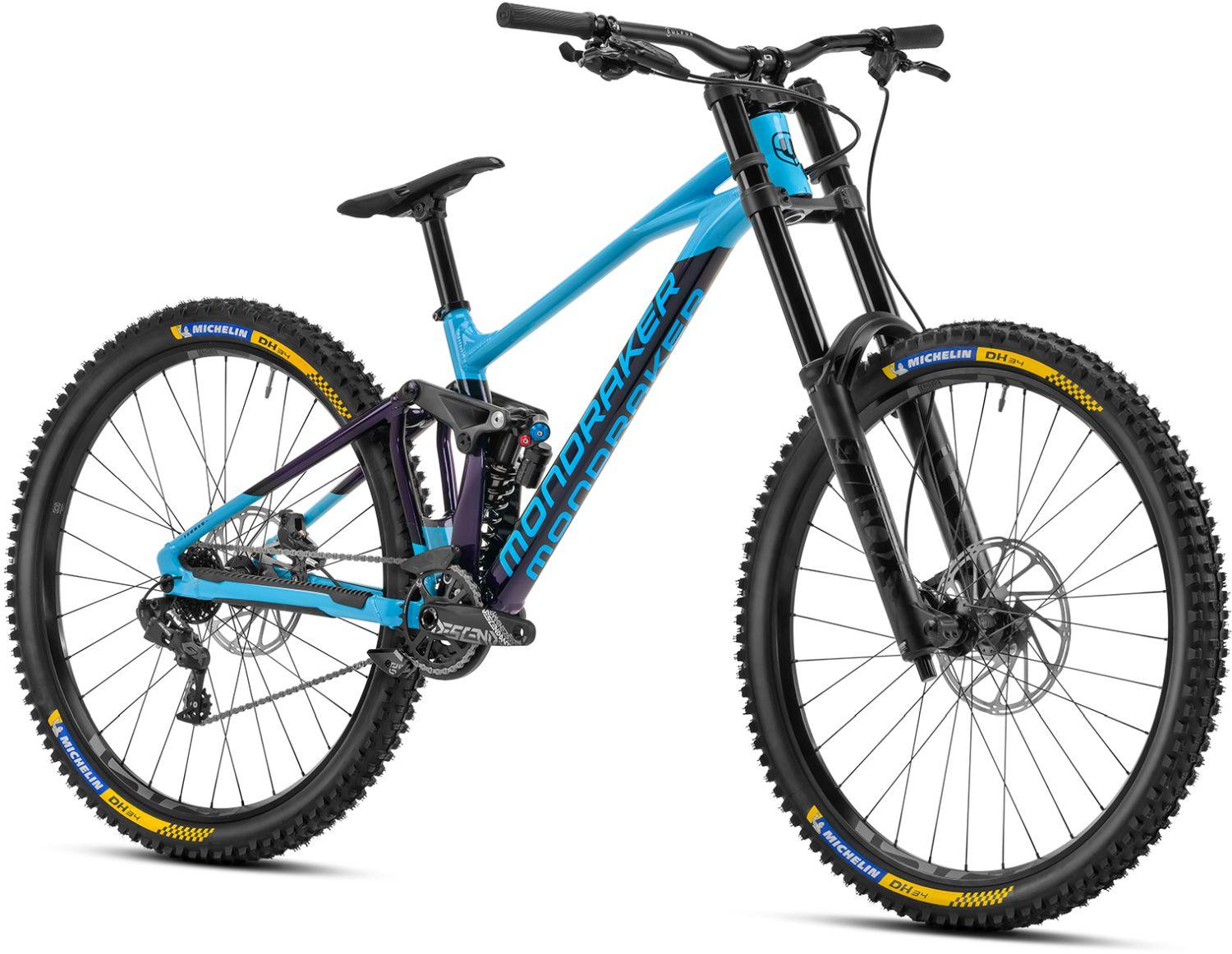

Mondraker Summum R Gloss Deep Purple / Light Blue 2023 | Downhill mountain bike
The little brother of the SUMMUM CARBON models features a hydroformed 6061 aluminum frame and our groundbreaking technologies ALLOY STEALTH EVO, ZERO SUSPENSION SYSTEM and FORWARD GEOMETRY. The combination of amazingly low weight and cutting-edge geometry results in breathtaking handling. You can also choose to ride an MX version with a 29" wheel at the front and 27.5" at the rear. With the optional Geometry Kit you can give your bike the perfect polish and adapt the riding characteristics perfectly to your needs.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Summum 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings
Steuersatz
Onoff Mercurium 1.5 ZS for 1-1/8" steerer tube, 41x30.15x7x45°x45° ACB sealed bearings, geometry kit cups, external diameter 56mm
Gabel
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm.
Dämpfer
Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Felge
e*thirteen LG1 Plus DH, IW29 29” Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes
Naben
VR: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts | HR: e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
Reifen
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Laufradgröße
29"
Schaltwerk
Sram GX DH, 7s, medium cage, X-actuation 1:1
Schalthebel
Sram trigger GX DH 7s, X-actuation 1:1
Kette
Sram PC1110 11s, Powerlock
Kurbel
Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm
Kassette
Sram PG 720 11-25T, 7s
Bremsen
VR: Sram Code R, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads | Rear: Sram Code R, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Lenker
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Griffe
Onoff Desert, 1lock-on, 135mm
Vorbau
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Sattel
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Sattelstütze
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Pedale
Nicht im Lieferumfang enthalten
