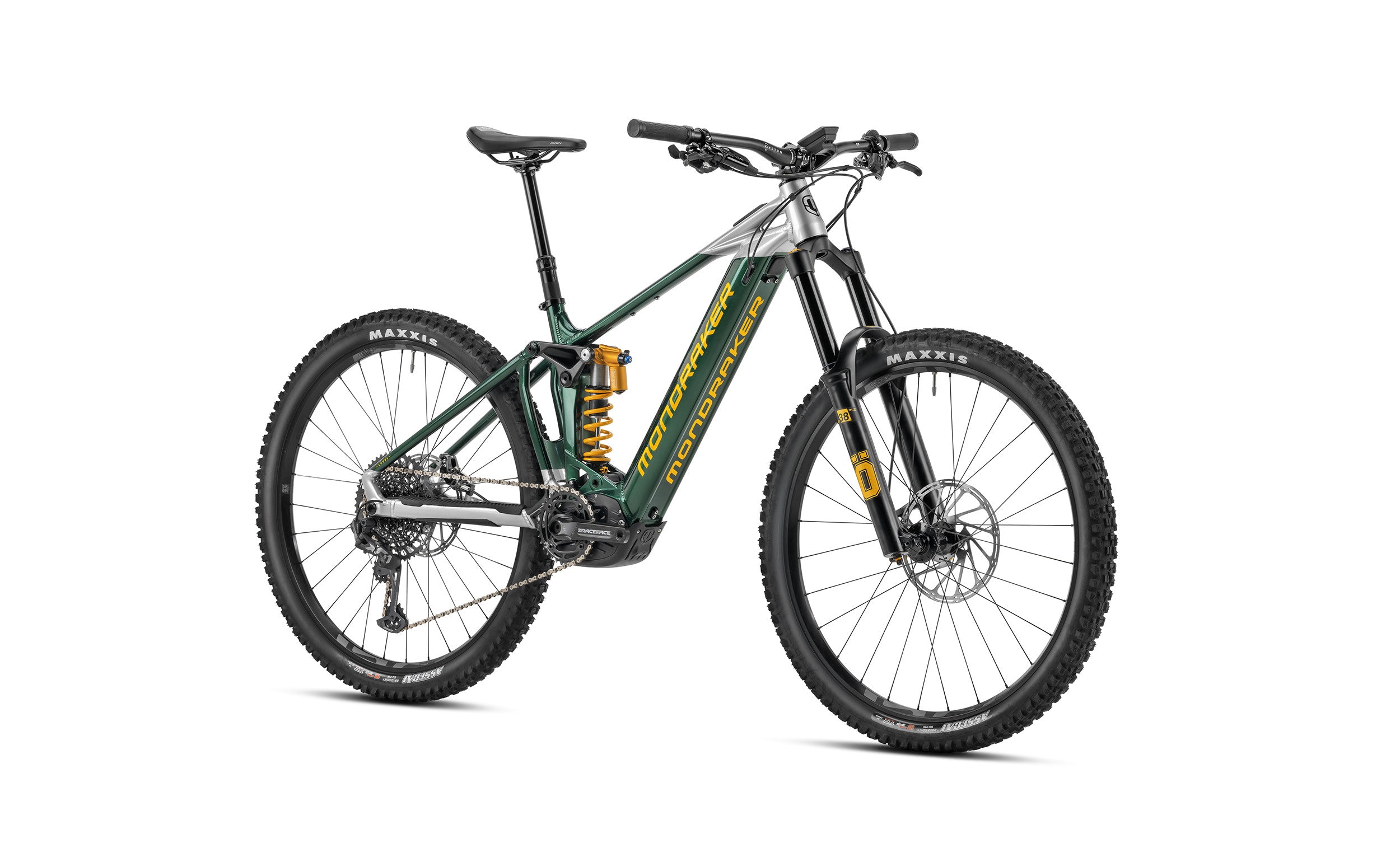

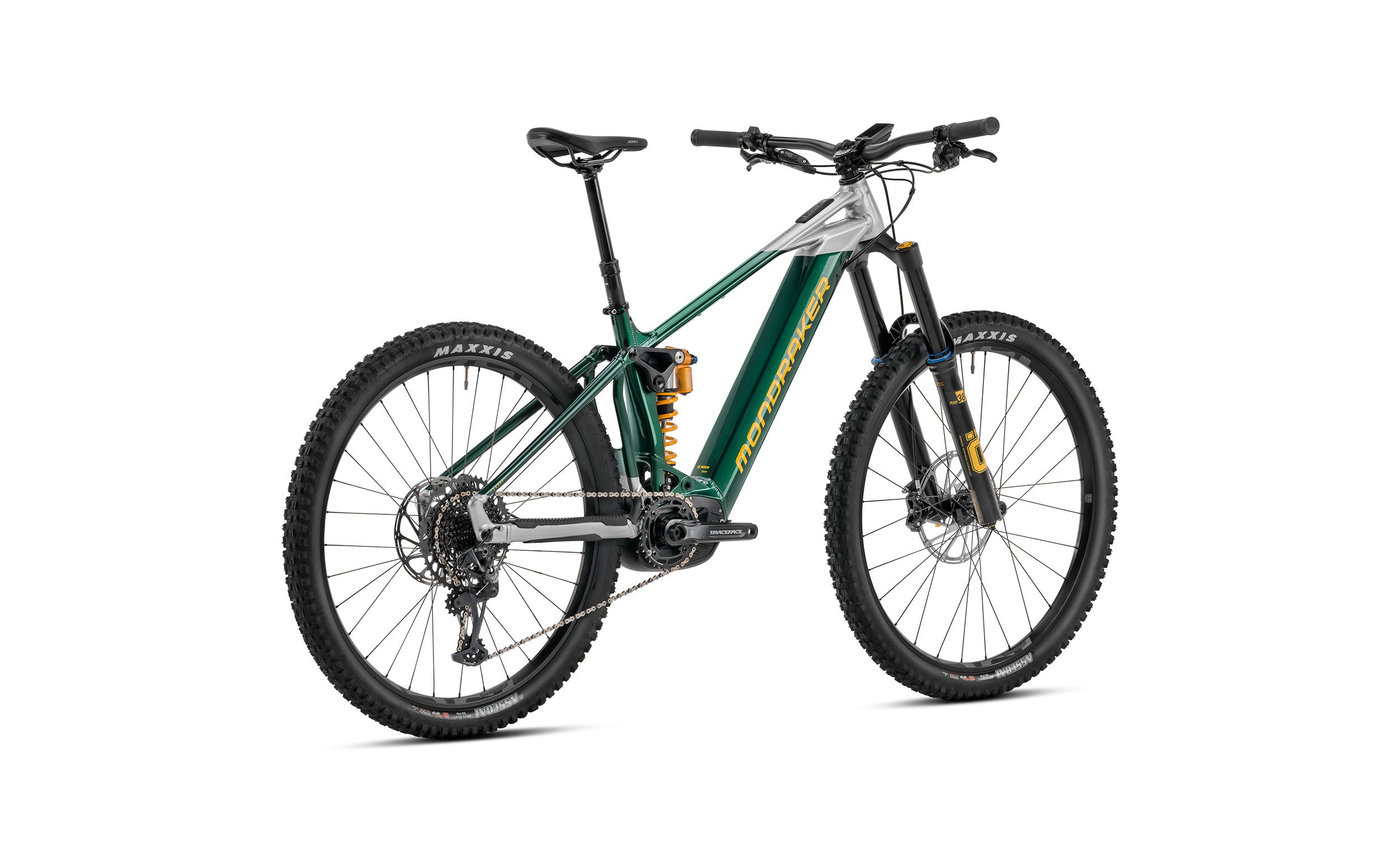

Mondraker Level XR Gloss British Green / Silver / Yellow 2023 | E-mountain bike
For 2023 we have launched a new model in the LEVEL range, the XR. With its 180mm suspension fork and 170mm rear travel, the LEVEL XR is the most radical Super Enduro e-MTB animal in the family. The Bosch Performance Line CX G4 Smart System drive comes with a KIOX 300 display, the new 3-button mini remote control (with wireless Bluetooth connection) and the new system controller in the top tube. With the 750Wh battery you simply have more range, no matter what you want to tackle. Of course, the LEVEL XR comes standard with Öhlins chassis consisting of an RFX38 M.2 fork and a TTX22M coil shock. SRAM's X01 Eagle / GX Eagle drivetrain provides power transfer, the e*Thirteen e*spec Plus wheels keep things rolling, and SRAM's Code RSC brakes compress your speed. ONOFF components control the cockpit and your contact points to the bike.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Level 6061 Stealth Evo aluminum, Zero Suspension System optimized for e-bikes, HHG internal cables and cables, extra large 17mm axles, speed sensor integrated in the dropout, exclusive plastic motor cover
Steuersatz
Onoff Saturn butted for 1-1/8" to 1-1/2" head tube, sealed ACB bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Gabel
Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, butted head tube, Boost 15x110mm axle, 44mm offset. Settings: High-speed compression via lever with climb mode, low-speed compression, rebound, air pressure, ramp chamber
Dämpfer
Öhlins TTX22M 225x75mm. Settings: High-speed compression via lever with climb mode. Low-speed compression, rebound, preload. Upper mounting: Trunnion, lower bearings: 25x10mm
Antrieb
Bosch Performance Line CX Cruise (25Km/h) Smart System
Akku
Bosch Powertube 750Wh
Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Felge
e*thirteen E*Spec Plus, IW30 Hookless, 6069 aluminum welded, 30mm inner width, tubeless ready, front 28 / rear 32 spokes
Naben
VR:e*thirteen Boost 15x110mm, triple sealed, milled aluminum, IS 6-hole HR:e*thirteen SuperBoost 12x148mm, triple sealed, milled aluminum with 6° teeth, IS 6-hole
Reifen
VR:Maxxis Assegai 29x2.5 WT, Tubeless Ready, 3C MAXX GRIP Compound, DH carcass, 60x2 TPI, foldable HR:Maxxis Assegai 29x2.5 WT, Tubeless Ready, 3C MAXX GRIP Compound, DH carcass, 60x2 TPI, foldable
Laufradgröße
29"
Schaltwerk
Sram X01 Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
Schalthebel
Sram Trigger GX Eagle, 12-speed, X-Actuation 1:1, Single Click
Kette
Sram GX Eagle, 12-speed, Powerlock
Kurbel
Race Face Aeffect e-Bike, 165mm
Kassette
Sram XG-1275, 10-52T, 12-speed
Bremsen
Sram Code RSC, oversized 4-piston brake caliper, one-piece 220mm (front) / 200mm (rear) 6-hole centerline brake disc, sintered metal brake pads with steel backplate
Lenker
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Desert, lock-on single, 135mm
Vorbau
Onoff Krypton FG 30mm, CNC, 31.8mm handlebar diameter
Sattel
FIZIK Terra Aidon X5 145mm
Sattelstütze
Onoff Pija retractable, internal cable routing, diameter 31.6mm, size S: 405x95-125mm, size M 458x120-150mm, size L: 498x140-170mm, size XL: 498x140-170mm
Pedale
Nicht im Lieferumfang enthalten
