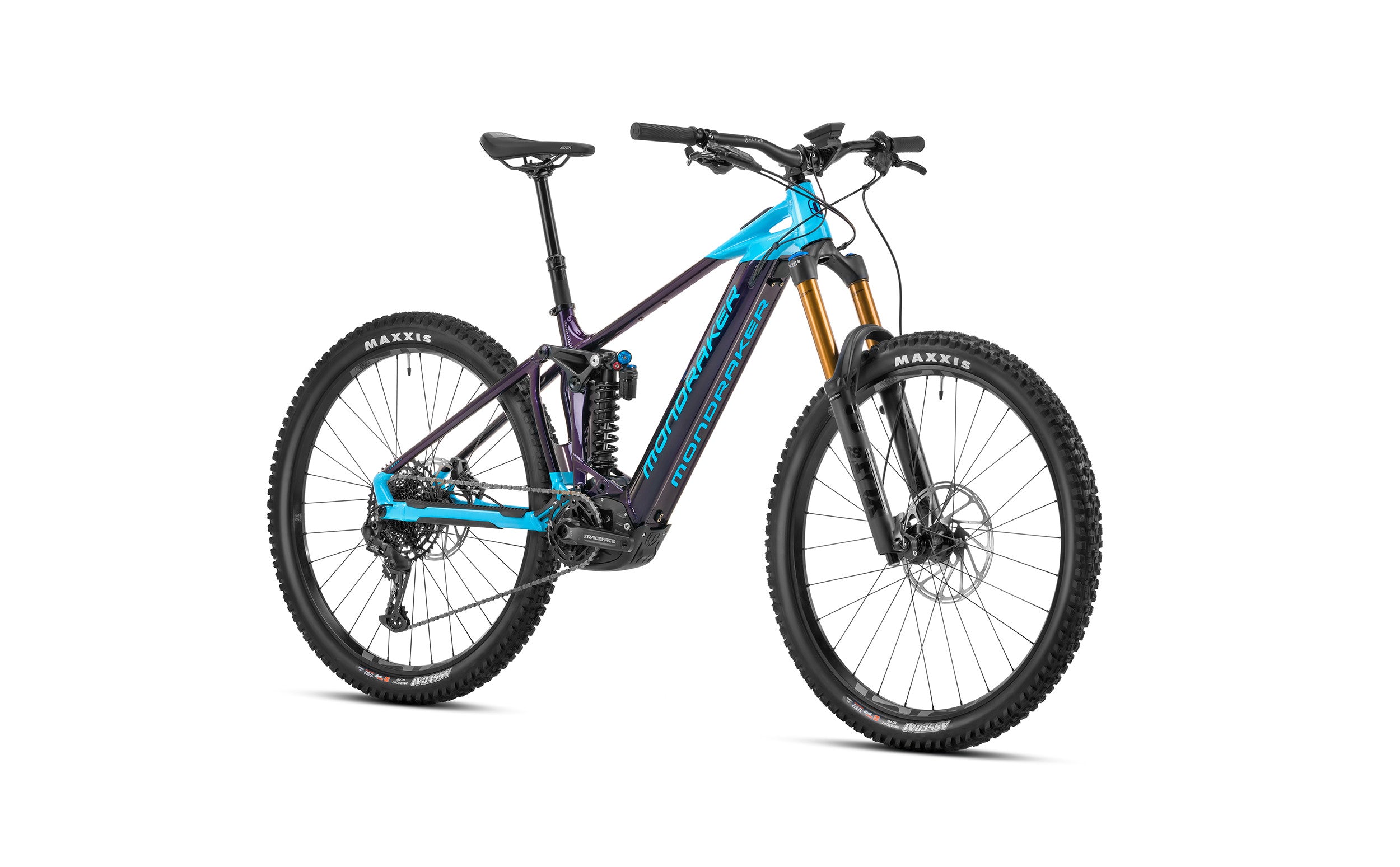

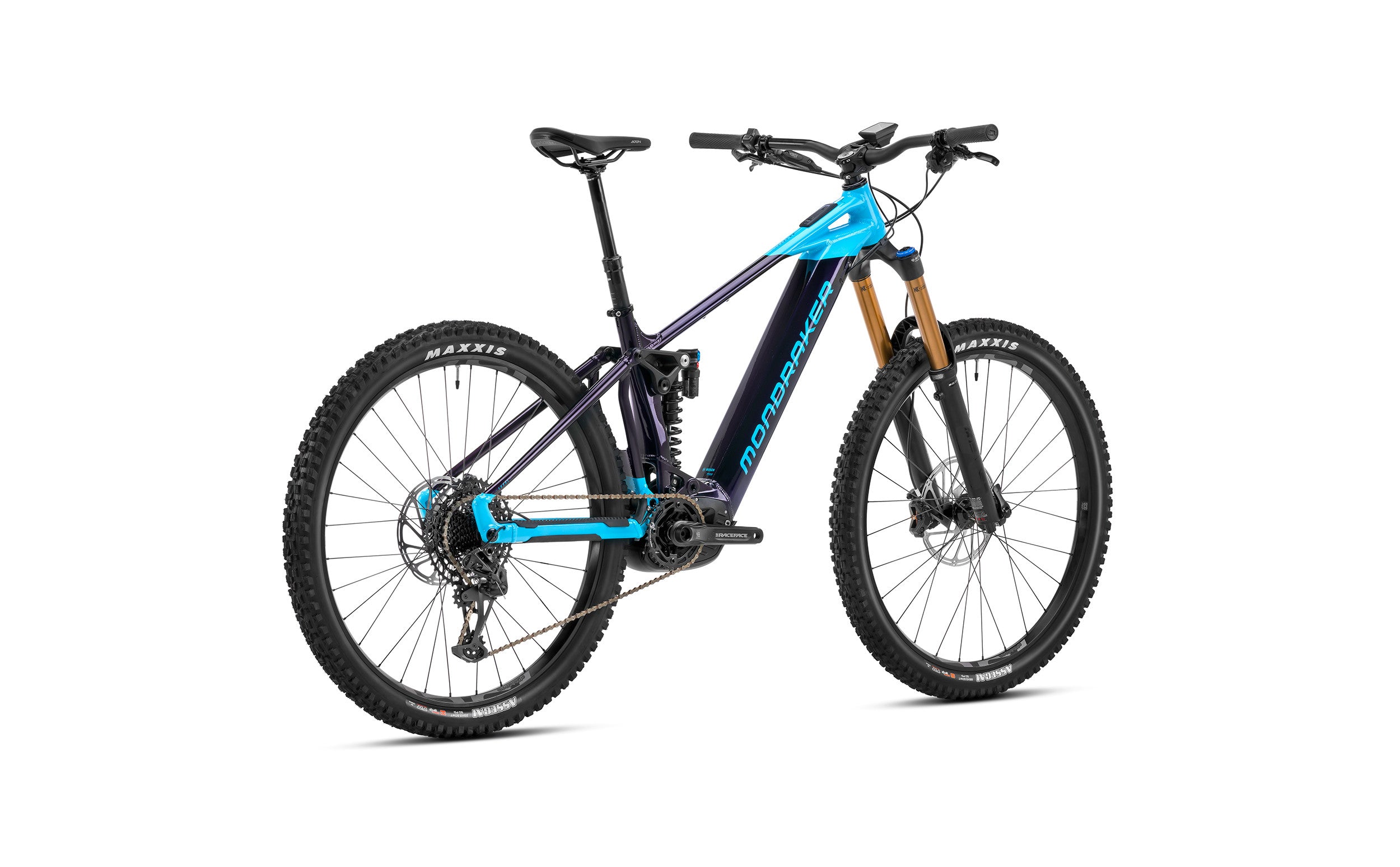

Mondraker Level RR Gloss Deep Purple / Light Blue 2023 | E-mountain bike
The LEVEL RR comes complete with a Bosch Performance Line CX G4 Smart System drive and has a 750Wh battery that is fully integrated into the down tube. In combination with the new Mini Remote remote control and the System Controller from Bosch, you have everything under control, even if you haven't installed the KIOX display. The LEVEL RR offers aFox 38 Float suspension fork and a Fox DHX2 coil shock for even better response, a SRAM GX Eagle/NX Eagle drive: e*thirteen e*spec Plus IW30 wheels, SRAM Code R brakes. Its ONOFF components are the icing on the cake. This is what a decent Super Enduro e-bike looks like!
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Level 6061 Stealth Evo aluminum, Zero Suspension System optimized for e-bikes, HHG internal cables and cables, extra large 17mm axles, speed sensor integrated in the dropout, exclusive plastic motor cover
Steuersatz
Onoff Saturn butted for 1-1/8" to 1-1/2" head tube, sealed ACB bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Gabel
Fox 38 29 Float FIT GRIP2 Factory Kashima, 180mm, optimized for e-bikes, butted head tube, Boost 15x110mm axle, 44mm offset. Settings: High and low-speed compression, high and low-speed rebound, air pressure
Dämpfer
Fox DHX2 Performance Elite, 225x75mm. Settings: Low-speed compression, low-speed rebound, preload, upper mount: Trunnion, lower bearings: 25x10mm
Antrieb
Bosch Performance Line CX Cruise (25Km/h) Smart System
Akku
Bosch Powertube 750Wh
Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Felge
e*thirteen E*Spec, IW30 Hookless, 6069 aluminum welded, 30mm inner width, tubeless ready, front 28 / rear 32 spokes
Naben
VR:e*thirteen Boost 15x110mm, triple sealed, milled aluminum, IS 6-hole HR:e*thirteen SuperBoost 12x148mm, triple sealed, milled aluminum with 6° teeth, IS 6-hole
Reifen
VR:Maxxis Assegai 29x2.5 WT, Tubeless Ready, 3C MAXX GRIP Compound, DH carcass, 60x2 TPI, foldable HR:Maxxis Assegai 29x2.5 WT, Tubeless Ready, 3C MAXX GRIP Compound, DH carcass, 60x2 TPI, foldable
Laufradgröße
29"
Schaltwerk
Sram GX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
Schalthebel
Sram Trigger NX Eagle, 12-speed, X-Actuation 1:1, Single Click
Kette
Sram SX Eagle, 12-speed, power lock
Kurbel
Race Face Aeffect e-Bike, 165mm
Kassette
Sram PG-1210, 11-50T, 12-speed
Bremsen
Sram Code R, oversized 4-piston brake caliper, one-piece 220mm (front) / 200mm (rear) 6-hole centerline brake disc, sintered metal brake pads with steel backplate
Lenker
Onoff Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Desert, lock-on single, 135mm
Vorbau
Onoff Sulfur FG 30mm 0º, forged 6061 aluminum, 31.8mm handlebar diameter
Sattel
FIZIK Terra Aidon X5 145mm
Sattelstütze
Onoff Pija retractable, internal cable routing, diameter 31.6mm, size S: 405x95-125mm, size M 458x120-150mm, size L: 498x140-170mm, size XL: 498x140-170mm
Pedale
Nicht im Lieferumfang enthalten
