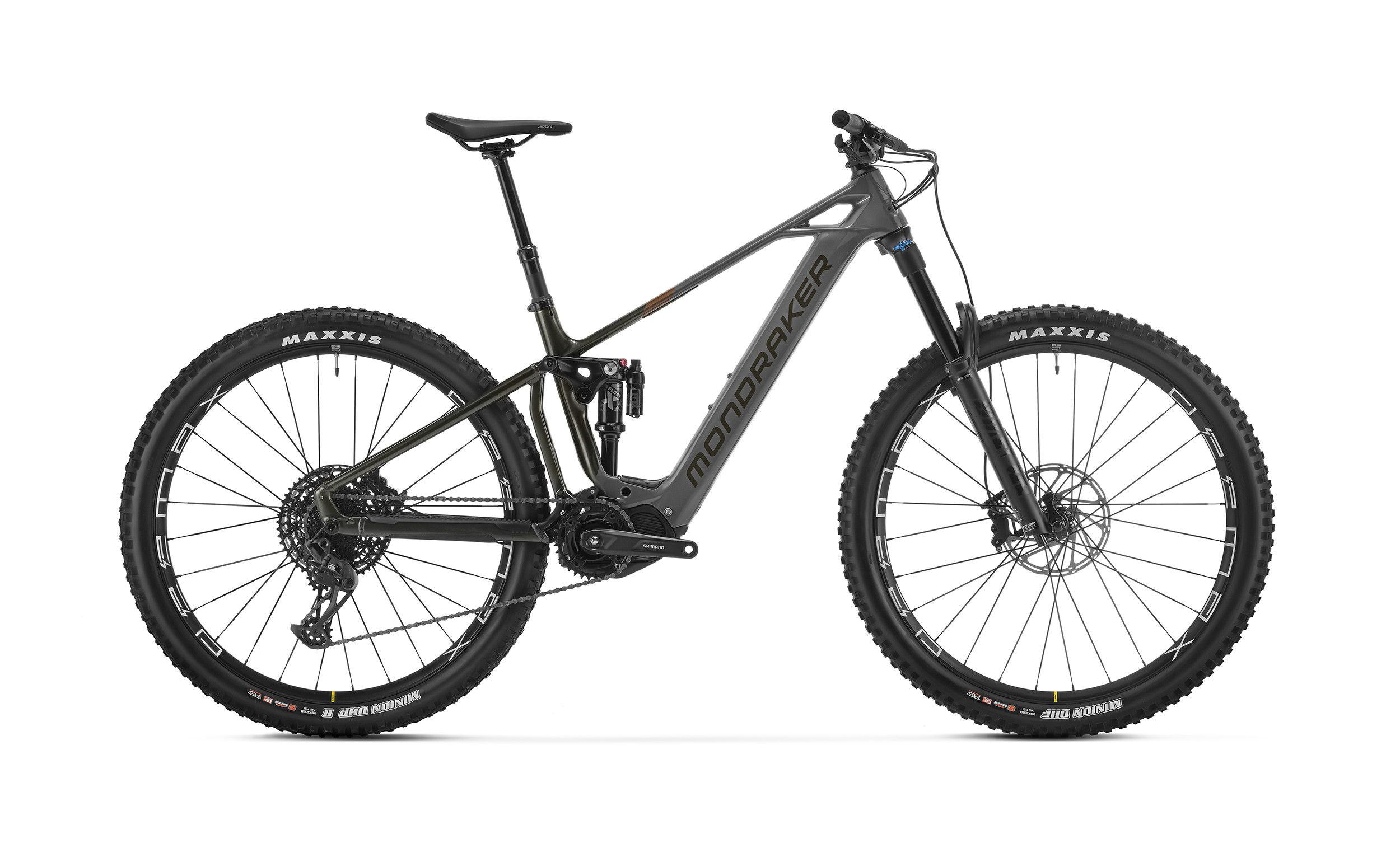

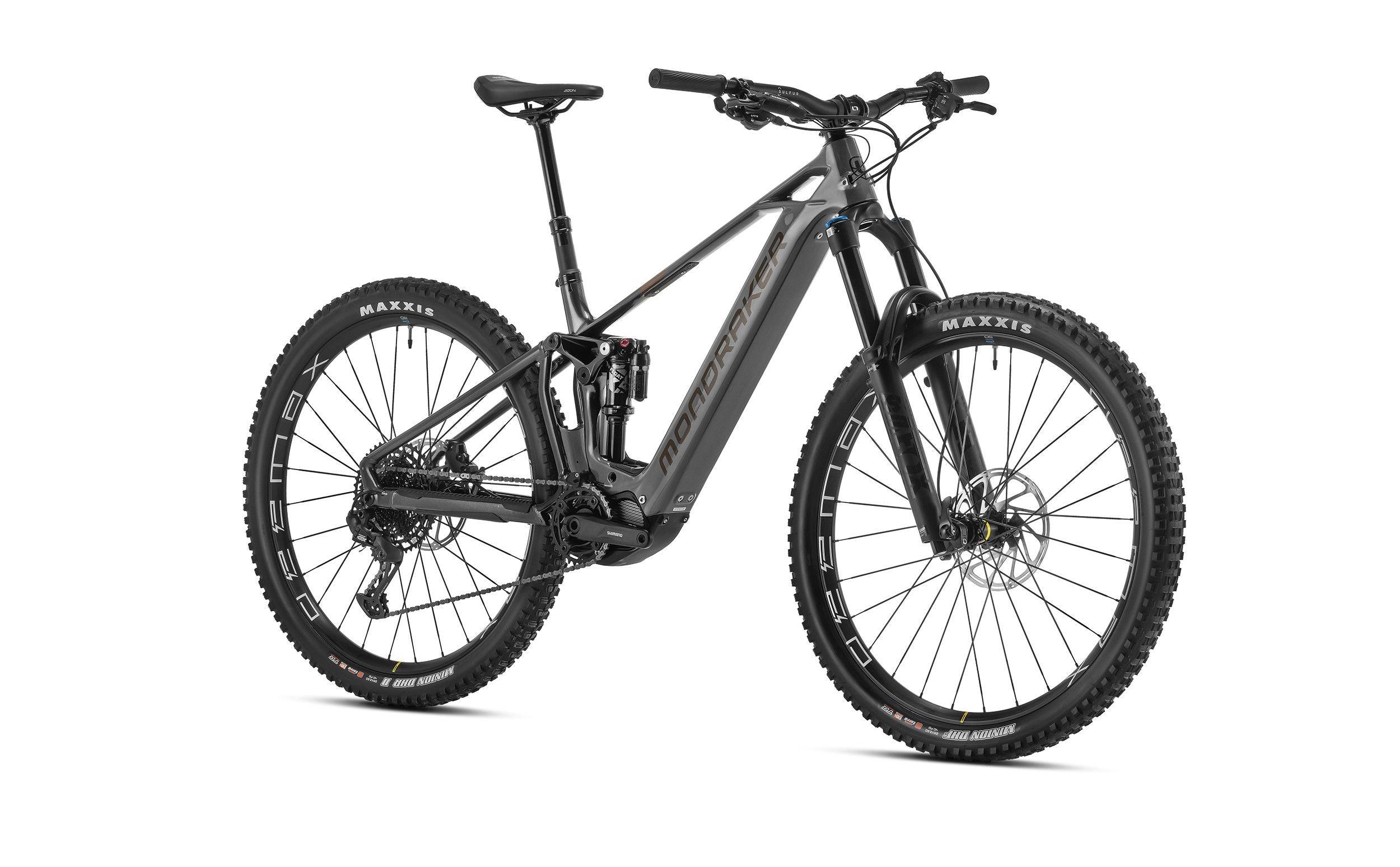

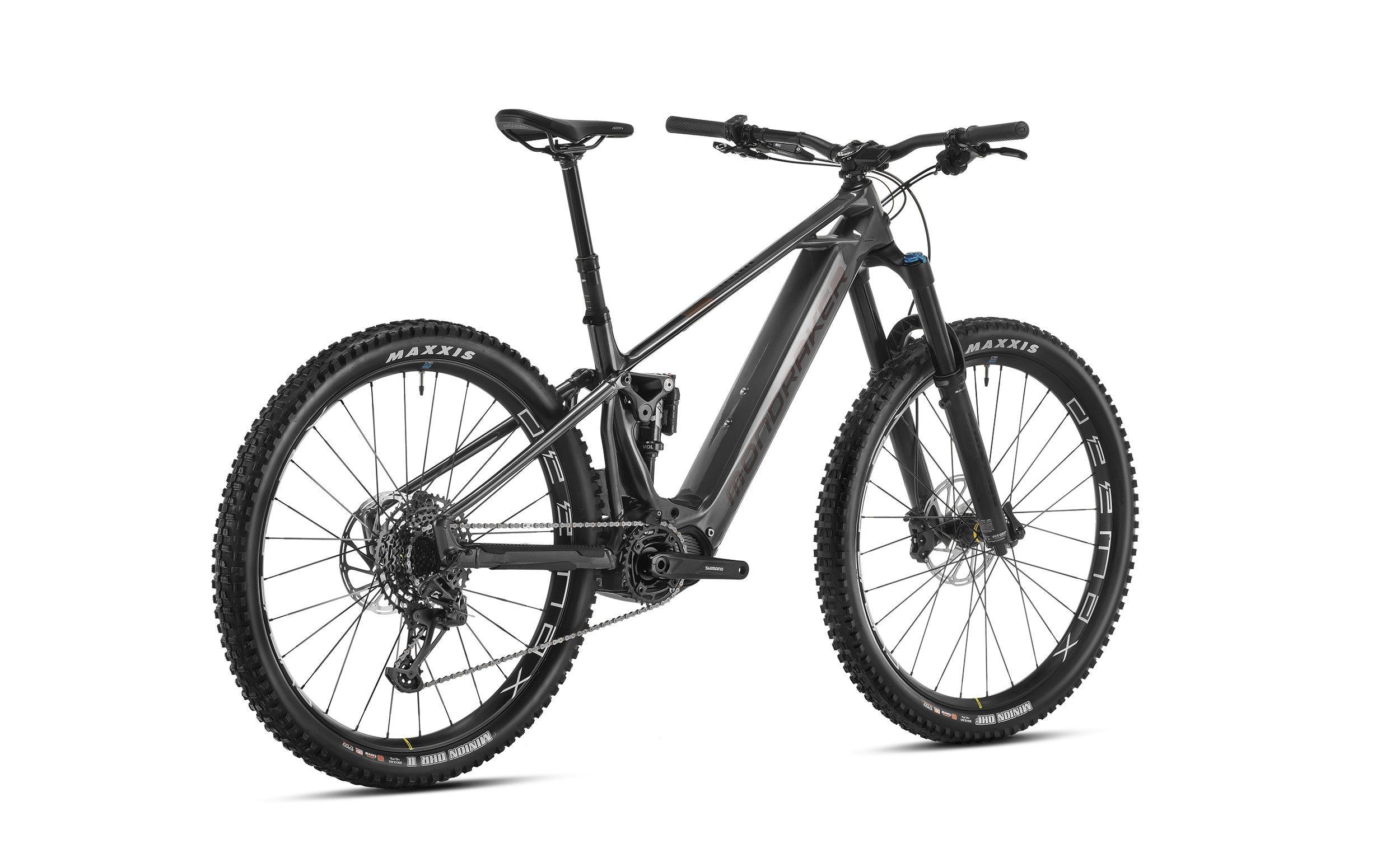

Mondraker Crusher Nimbus Gray 2023
- Fast delivery: The shipping process begins immediately after payment is received to minimize waiting times.
- Reliable shipping partner : Collaboration with GO! Logistics for safe and fast delivery.
- Complete pre-assembly : Your bike will be delivered 95% pre-assembled. Only simple tools are required to put the finishing touches on the bike.
📦 Schnelle & Zuverlässige Lieferung: Sobald deine Bestellung bei uns eingeht, setzen wir alles in Bewegung, um deine Kleinteile und Zubehör so rasch wie möglich auf den Versandweg zu bringen.
🔄 Einfache Rückgabe: Wir hoffen, dass du mit deinem Kauf vollkommen zufrieden bist. Sollte doch einmal etwas nicht deinen Vorstellungen entsprechen, kannst du die Ware unkompliziert innerhalb von 30 Tagen an uns zurücksenden. Weitere Details findest du HIER.
⭐ Expertise, die überzeugt: Das Vertrauen und die Zufriedenheit von über 125.000+ Kunden bestärken uns in unserer Kompetenz in der Beratung und Auswahl von Fahrradausrüstung.
Brauchst du Hilfe?
Unser Kundenservice steht bereit, um dir mit Rat und Tat zur Seite zu stehen. Du kannst uns jederzeit telefonisch oder über unser Kontaktformular erreichen.
Telefonzeiten
Mo – Fr: 10.00 – 18.00 Uhr
Sa: 10.00 – 14.00 Uhr
+49 (0)2961-9148869
Maximum flexibility : Enjoy the freedom to test products for 30 days and return them without any problem if you don't like them or don't fit.
more information about the return policy
Sign up for the Liquid Life newsletter now and secure all the benefits!
- Voucher : As a thank you for registering, you will receive a €5 voucher, ideal for your next cycling adventure or accessory purchase.
- Current information : You will always stay informed about the latest products, exclusive offers and exciting cycling events.
- Part of the community : By registering, you become part of the Liquid Life community and will no longer miss any news.
Size Chart
Height | Recommended Size |
---|
Calculate Size
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-bike optimized Zero Suspension System
Steuersatz
Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 above, ZS56/40 below
Gabel
Fox 38 29 Float FIT GRIP EVOL Performance, 160 mm, adapted to e-bikes, tapered head tube, 15 x 110 mm boost axle, 44 mm offset. Settings: 3 positions with micro-adjustable compression, low-speed rebound
Dämpfer
Fox Float-X LV Performance, 205 x 65 mm. Settings: Compression via 2-way lever, low-speed rebound, air preload. Top trunnion mount, bottom bushings: 25 x 10 mm
Antrieb
Shimano STEPS EP801
Akku
Simplo internal 720 Wh G3
Display
Shimano EN600
Felge
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Naben
VR: Mavic, Boost 15 x 110 mm, IS 6-hole | Rear: Mavic, Boost 12 x 148 mm, ID360 freewheel system with spur teeth, IS 6-bolt, HG freewheel
Reifen
VR: Maxxis Minion DHF 29 x 2.6, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead | Rear: Maxxis Minion DHR II 29 x 2.6, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead
Laufradgröße
29"
Schaltwerk
SRAM GX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
Schalthebel
SRAM Trigger NX Eagle, 12-speed, X-Actuation 1:1, Single Click
Kette
SRAM SX Eagle, 12-speed, Powerlock
Kurbel
Shimano Steps FC-EM600 E-Bike, 165mm
Kassette
SRAM PG-1210, 11-50T, 12-speed
Bremsen
SRAM DB8, 4-piston caliper, one-piece 200mm IS 6-hole centerline brake disc, organic brake pads with steel backplate
Lenker
ONOFF Sulfur 1.0, double butted 6061 aluminum, rise: 20 mm, width: 800 mm, 9° horizontal offset/backsweep, 5° vertical offset/upsweep, 31.8 mm handlebar diameter
Griffe
ONOFF Desert, single lock-on, 135 mm
Vorbau
ONOFF Sulfur FG 30 mm 0°, forged 6061 aluminum, 31.8 mm handlebar diameter
Sattel
FIZIK Terra Aidon X5 145mm
Sattelstütze
ONOFF Pija telescopic support, internal cable routing, diameter 31.6 mm, 1 remote lever with bearing, size S: 405 x 95-125 mm, size M: 458 x 120-150 mm, size L: 498 x 140-170 mm, Size XL: 558 x 170-200mm
Pedale
Nicht im Lieferumfang enthalten
