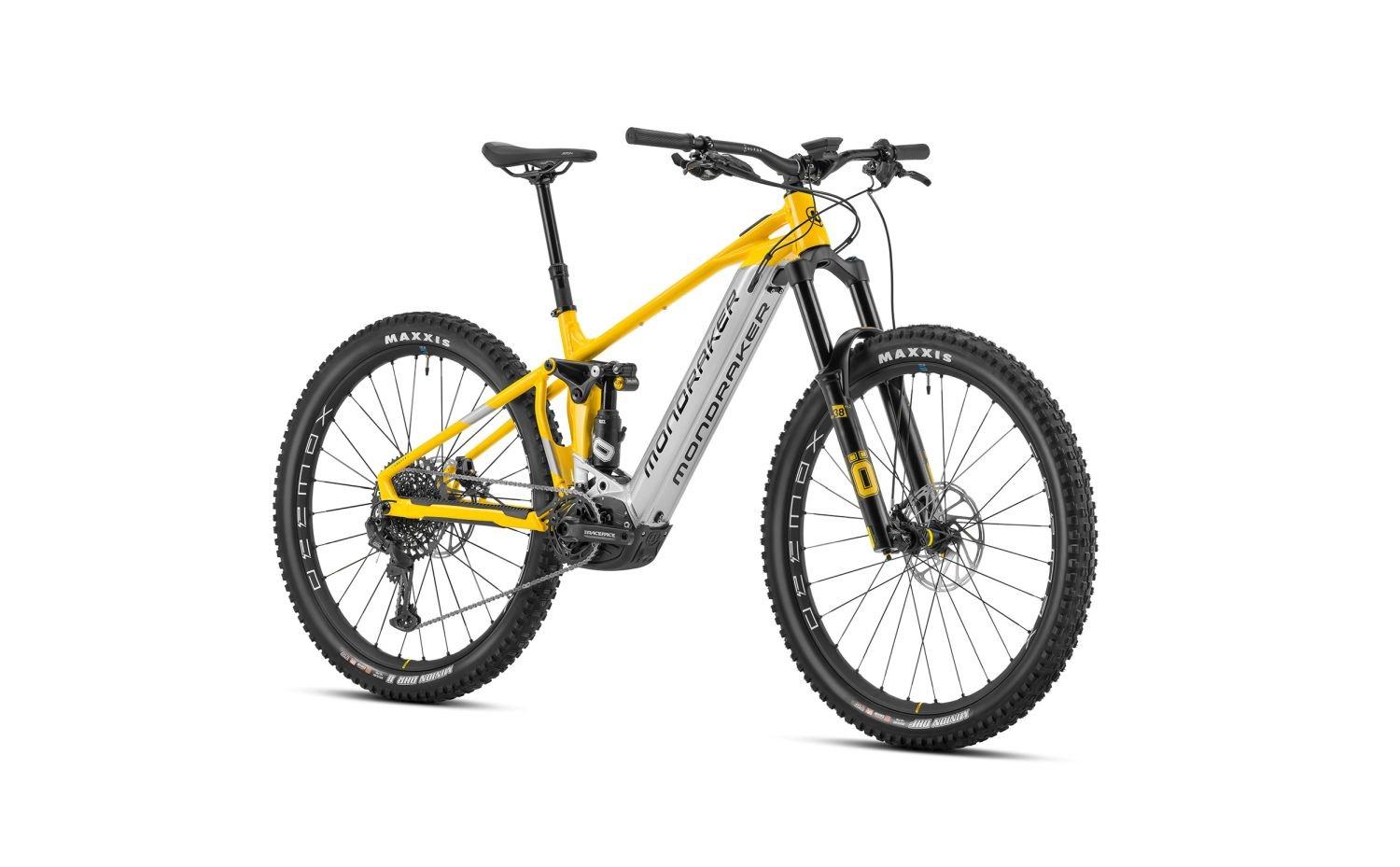

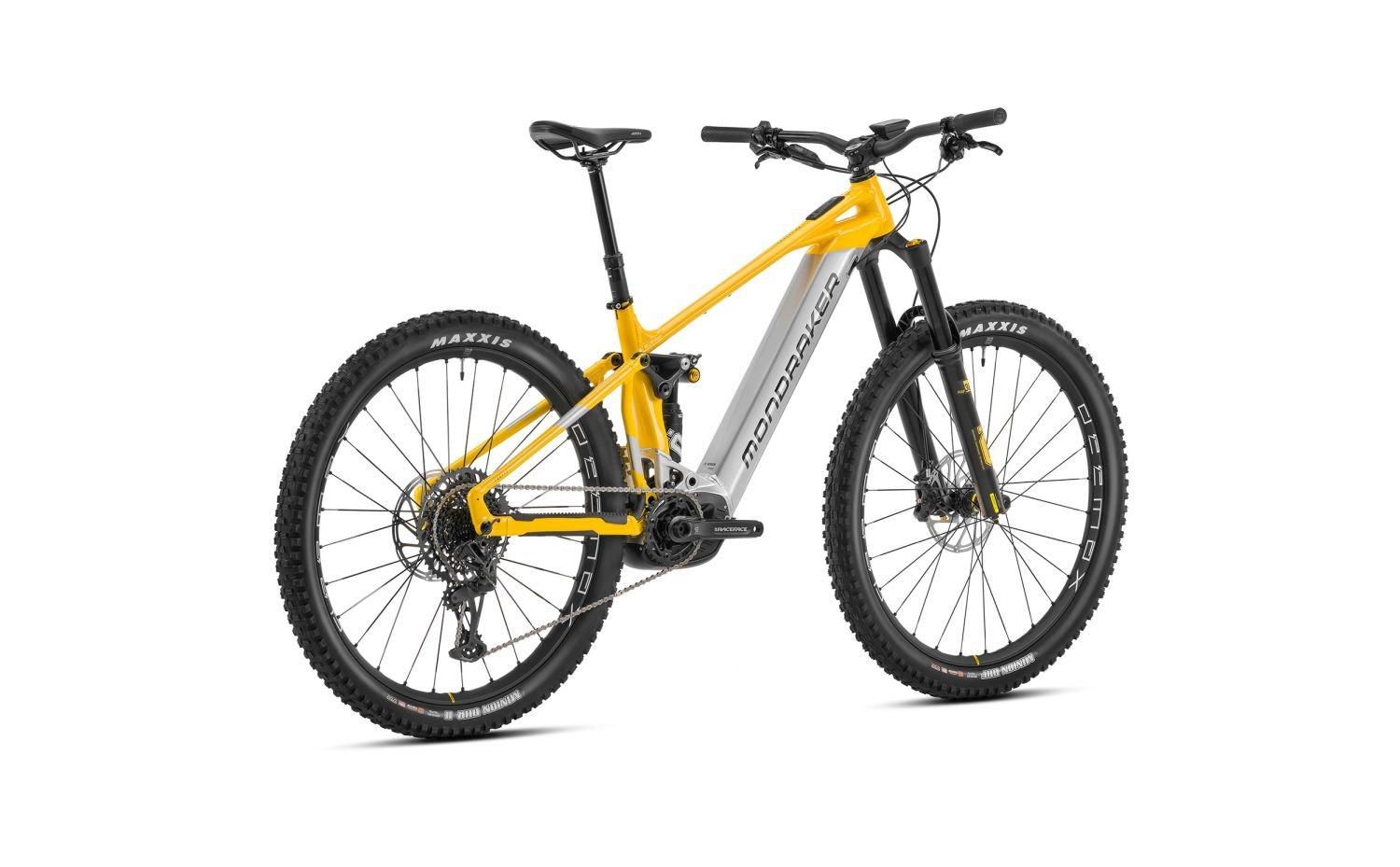

Mondraker Crafty XR yellow/grey 2023
The CRAFTY XR is the sickest Super Enduro e-MTB with an aluminum frame in its class. The suspension work is carried out by the renowned Swedish suspension expert Öhlins, which offers up to 170mm of suspension travel at the front and 150mm at the rear. The entire chassis was perfectly coordinated with the improved Performance Line CX Smart System drive from Bosch, including its brand new system controller and the Bluetooth Mini Remote. It goes without saying that you can benefit from our market-leading technologies such as FORWARD GEOMETRY, ZERO SUSPENSION SYSTEM and STEALTH ALLOY EVO. The CRAFTY XR is the perfect choice if you are looking for an enduro e-MTB with an aluminum frame and without compromises. The Bosch Smart System drive with all its improvements for 2023 and its 750Wh battery gives you endless possibilities to enjoy your Crafty XR.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Crafty 6061 Stealth Evo aluminum, zero suspension system optimized for e-bikes, 150mm travel, forward geometry, integrated non-removable battery, Boost 12x148mm rear axle
Steuersatz
ONOFF Saturn butted for 1-1/8" to 1-1/2" head tube, sealed ACB bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Gabel
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, butted head tube, Boost 15x110mm axle, 44mm offset. Settings: High-speed compression via lever with climb mode, low-speed compression, rebound, air pressure, ramp chamber
Dämpfer
Öhlins Ttx Air 205X65Mm. Settings: High Speed Compression Lever With Climb Mode, Low Speed
Antrieb
Bosch Performance Line CX (25km/h) Smart System
Akku
Bosch Powertube 750Wh
Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Felge
Mavic E-Deemax S 29, 30mm inner width, welded rim made of Maxtal, PFP, tubeless ready, 28 spokes
Naben
VR: Mavic Boost 15x110mm, IS 6-hole | Rear: Mavic Boost 12x148mm, ID360 freehub system, IS 6-bolt, XD freehub
Reifen
VR: Mavic Boost 15x110mm, IS 6-hole | Rear: Mavic Boost 12x148mm, ID360 freehub system, IS 6-bolt, XD freehub
Laufradgröße
29"
Schaltwerk
Sram GX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
Schalthebel
Sram Trigger GX Eagle, 12-speed, X-Actuation 1:1, Single Click
Kette
Sram NX Eagle, 12-speed, Powerlock
Kurbel
Race Face Aeffect e-Bike, 165mm
Kassette
Sram XG-1275, 10-52T, 12-speed
Bremsen
Sram Code R, oversized 4-piston brake caliper, one-piece 200mm 6-hole Centerline brake disc, sintered metal brake pads with steel backplate
Lenker
ONOFF Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
ONOFF Desert, lock-on single, 135mm
Vorbau
ONOFF Sulfur FG 30mm 0º, forged 6061 aluminum, 31.8mm handlebar diameter
Sattel
FIZIK Terra Aidon X5 145mm
Sattelstütze
ONOFF Pija retractable, internal cable routing, diameter 31.6mm, size S: 405x95-125mm, size M 458x120-150mm, size L: 498x140-170mm, size XL: 498x140-170mm
Pedale
Nicht im Lieferumfang enthalten
