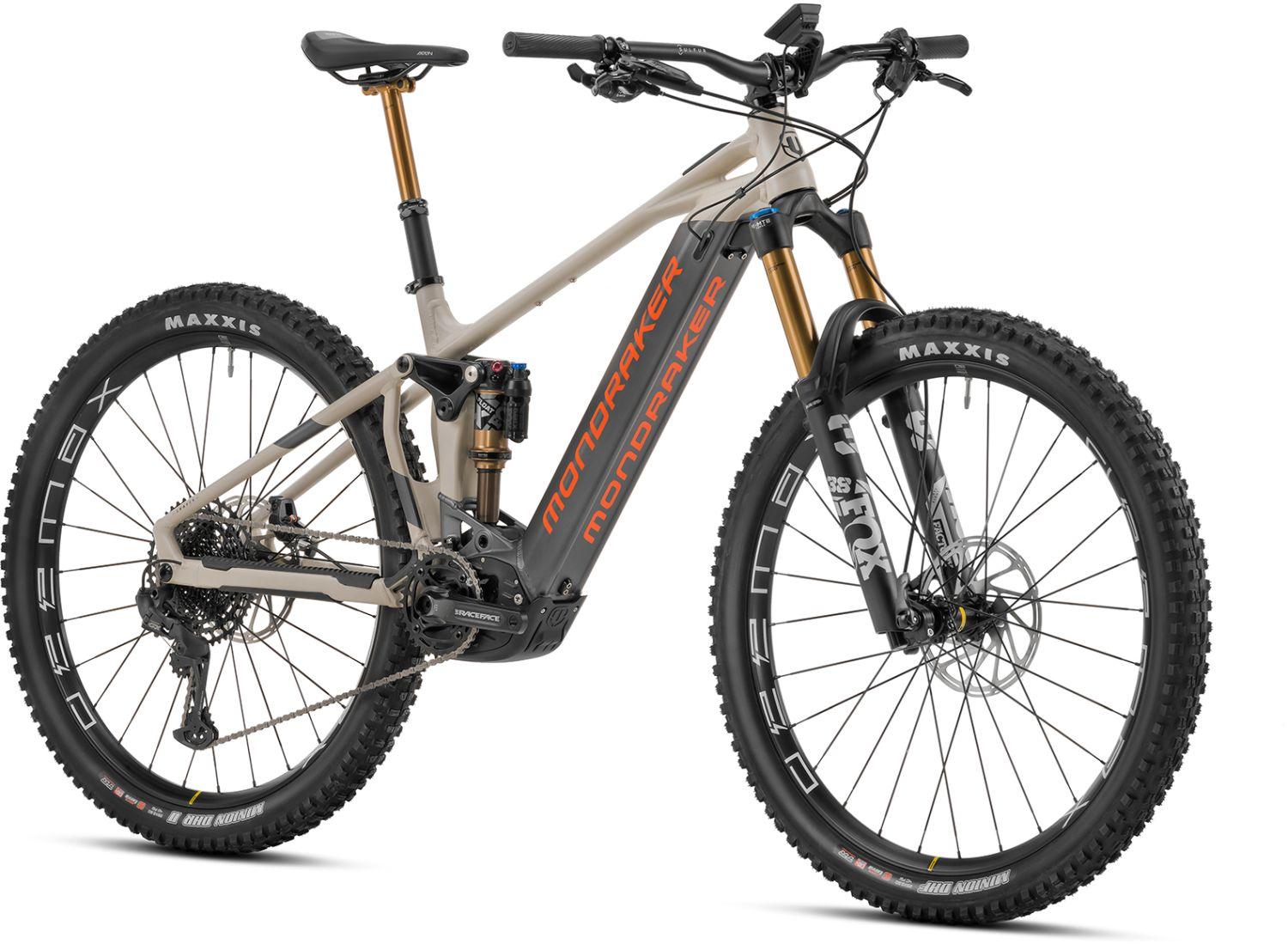

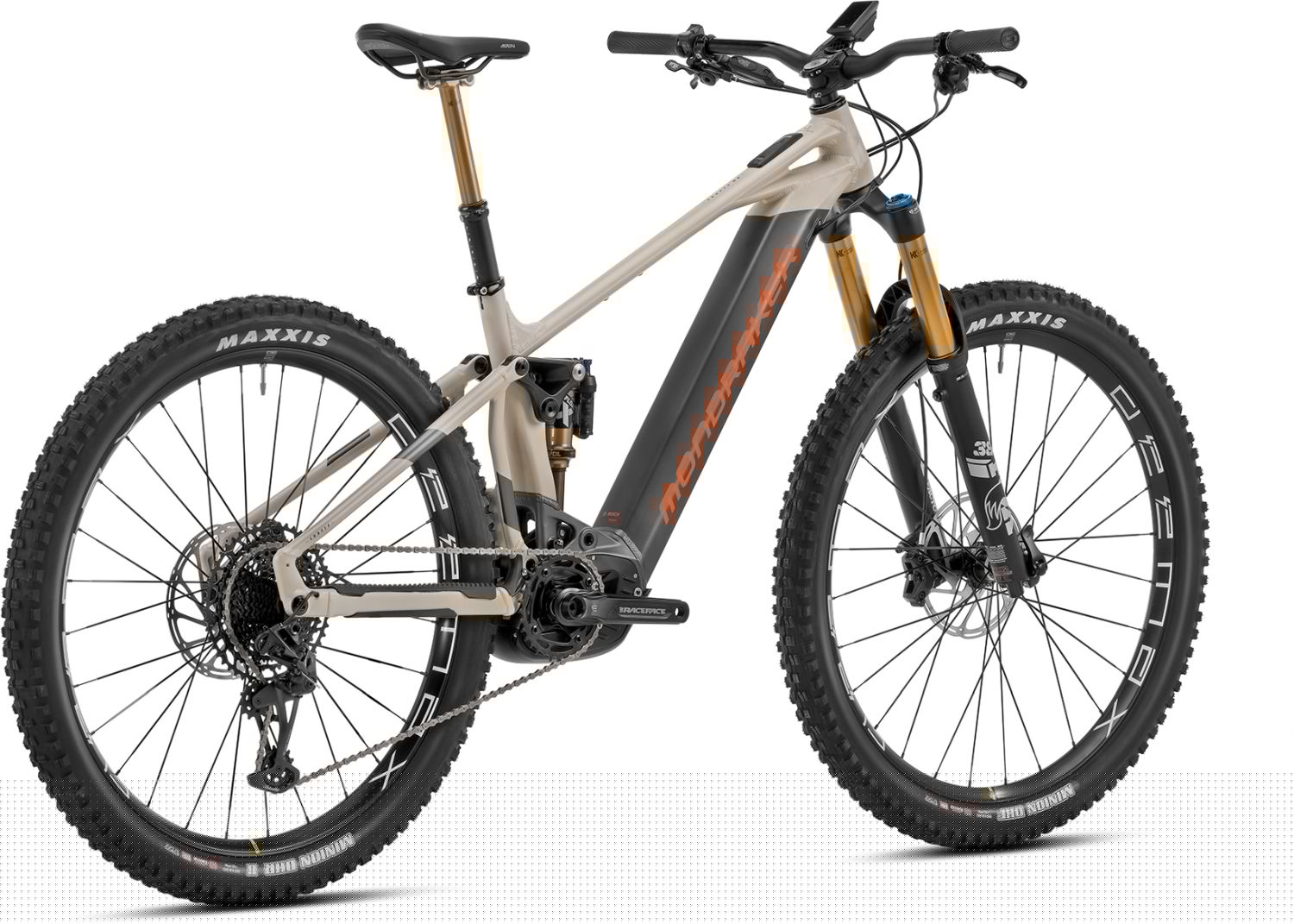

Mondraker Crafty RR Matte Desert Gray / Graphite / Orange 2023 | Mountain bike
This bike uses all the possibilities of its optimized ZERO SUSPENSION SYSTEM and absorbs the vibrations of the trails while you sleep. Added to this are the FORWARD GEOMETRY and a STEALTH ALLOY EVO frame to give you spectacular agility and the greatest possible riding pleasure. TheFox 38 suspension fork and Fox Float X shock, both from the Factory range, offer superior control in all situations, no matter how wild the trails get. No question - the latest improvements to the CRAFTY RR will make you feel like a pro!
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Crafty 6061 Stealth Evo aluminum, Zero Suspension System optimized for e-bikes, HHG internal cables and cables, extra large 17mm axles, speed sensor integrated in the dropout, exclusive plastic motor cover.
Steuersatz
Onoff Saturn butted for 1-1/8" to 1-1/2" head tube, sealed ACB bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Gabel
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, optimized for e-bikes, butted head tube, Boost 15x110mm axle, 44mm offset. Settings: High and low-speed compression, high and low-speed rebound, air pressure
Dämpfer
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression via two-stage lever, low-speed compression, low-speed rebound, air pressure. Upper mounting: Trunnion, lower bearings 25x10mm
Antrieb
Bosch Performance Line CX Cruise (25Km/h) Smart System
Akku
Bosch Powertube 750Wh
Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Felge
Mavic E-Deemax 29, 30mm inner width, welded, PFP, tubeless ready, 28 spokes
Naben
VR:Mavic Boost 15x110mm, IS 6-hole HR:Mavic Boost 12x148mm, ID360 freewheel system, IS 6-hole
Reifen
VR:Maxxis Minion DHF 29x2.6, Tubeless Ready, 3C MAXX TERRA, EXO+ puncture protection, 120 TPI, foldable HR:Maxxis Minion DHR II 29x2.6, Tubeless Ready, 3C MAXX TERRA, EXO+ Protection, 120 TPI, foldable
Laufradgröße
29"
Schaltwerk
Sram GX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
Schalthebel
Sram Trigger GX Eagle, 12-speed, X-Actuation 1:1, Single Click
Kette
Sram NX Eagle, 12-speed, Powerlock
Kurbel
Race Face Aeffect e-Bike, 165mm
Kassette
Sram XG-1230, 11-50T, 12-speed
Bremsen
Sram Code R, oversized 4-piston brake caliper, one-piece 200mm 6-hole Centerline brake disc, sintered metal brake pads with steel backplate
Lenker
Onoff Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Desert, lock-on single, 135mm
Vorbau
Onoff Sulfur FG 30mm 0º, forged 6061 aluminum, 31.8mm handlebar diameter
Sattel
FIZIK Terra Aidon X5 145mm
Sattelstütze
Fox Transfer Factory Kashima, internal cable routing, diameter 31.6mm, size S: 363.5x125mm, size M/L: 418.3x150mm, size XL: 475.1x175mm
Pedale
Nicht im Lieferumfang enthalten
