Mondraker Crafty Carbon XR LTD special paint green 2023
- Fast delivery: The shipping process begins immediately after payment is received to minimize waiting times.
- Reliable shipping partner : Collaboration with GO! Logistics for safe and fast delivery.
- Complete pre-assembly : Your bike will be delivered 95% pre-assembled. Only simple tools are required to put the finishing touches on the bike.
📦 Schnelle & Zuverlässige Lieferung: Sobald deine Bestellung bei uns eingeht, setzen wir alles in Bewegung, um deine Kleinteile und Zubehör so rasch wie möglich auf den Versandweg zu bringen.
🔄 Einfache Rückgabe: Wir hoffen, dass du mit deinem Kauf vollkommen zufrieden bist. Sollte doch einmal etwas nicht deinen Vorstellungen entsprechen, kannst du die Ware unkompliziert innerhalb von 30 Tagen an uns zurücksenden. Weitere Details findest du HIER.
⭐ Expertise, die überzeugt: Das Vertrauen und die Zufriedenheit von über 125.000+ Kunden bestärken uns in unserer Kompetenz in der Beratung und Auswahl von Fahrradausrüstung.
Brauchst du Hilfe?
Unser Kundenservice steht bereit, um dir mit Rat und Tat zur Seite zu stehen. Du kannst uns jederzeit telefonisch oder über unser Kontaktformular erreichen.
Telefonzeiten
Mo – Fr: 10.00 – 18.00 Uhr
Sa: 10.00 – 14.00 Uhr
+49 (0)2961-9148869
Maximum flexibility : Enjoy the freedom to test products for 30 days and return them without any problem if you don't like them or don't fit.
more information about the return policy
Sign up for the Liquid Life newsletter now and secure all the benefits!
- Voucher : As a thank you for registering, you will receive a €5 voucher, ideal for your next cycling adventure or accessory purchase.
- Current information : You will always stay informed about the latest products, exclusive offers and exciting cycling events.
- Part of the community : By registering, you become part of the Liquid Life community and will no longer miss any news.
Size Chart
Height | Recommended Size |
---|
Calculate Size
LIMITED QUANTITY - UNLIMITED POWER
AND ONLY AVAILABLE FROM LIQUID-LIFE
For several reasons, the new Mondraker CRAFTY CARBON On the one hand it is the unique paintwork and on the other hand the BOSCH Performance Line CX Race motor that makes the bike so special. The CRAFTY CARBON XR SE is one of the first bikes available on the market to use this new motor. A premium combination of elegant appearance and previously unseen engine performance and characteristics. The bike will only be available in very limited quantities and only from us.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen

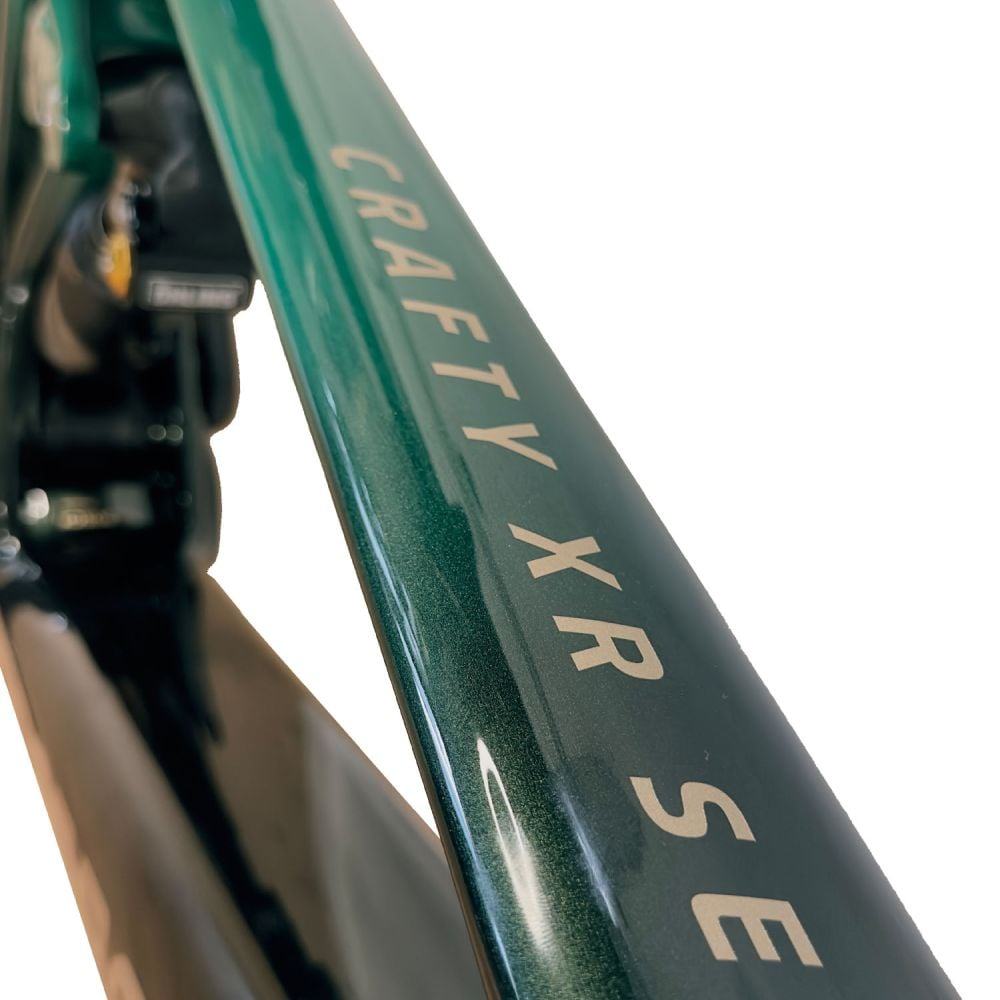

Crafty Stealth Air full carbon, optimized zero suspension system, 150mm travel, forward geometry, integrated battery, boost rear axle, upper rocker monoblock one-piece, sealed "MAX Capacity" bearings, 17mm axles, integrated speed sensor
Steuersatz
Acros Custom for 1-1/2" head tube, angular contact ball bearings 40x52x7, internal cable routing
Gabel

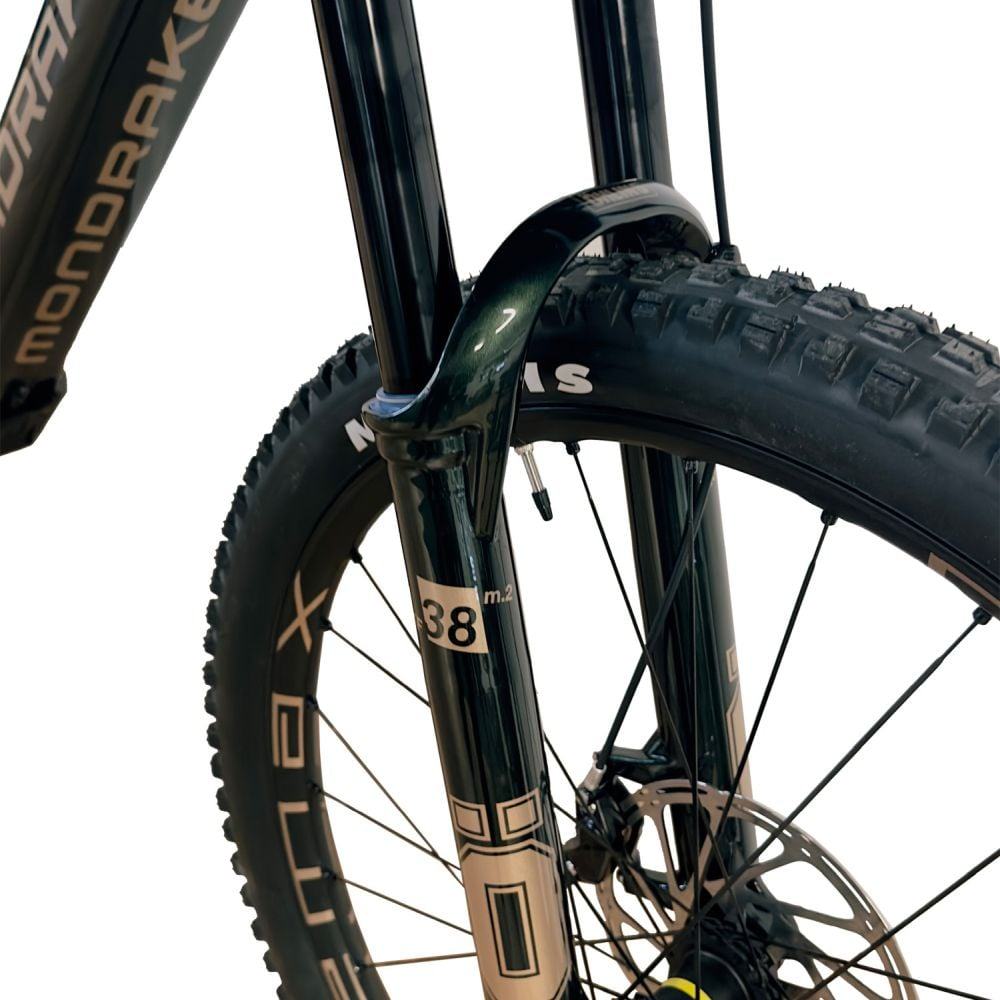

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, butted head tube, Boost 15x110mm axle, 44mm offset. Settings: High-speed compression via lever with climb mode, low-speed compression, rebound, air pressure, ramp chamber
Dämpfer

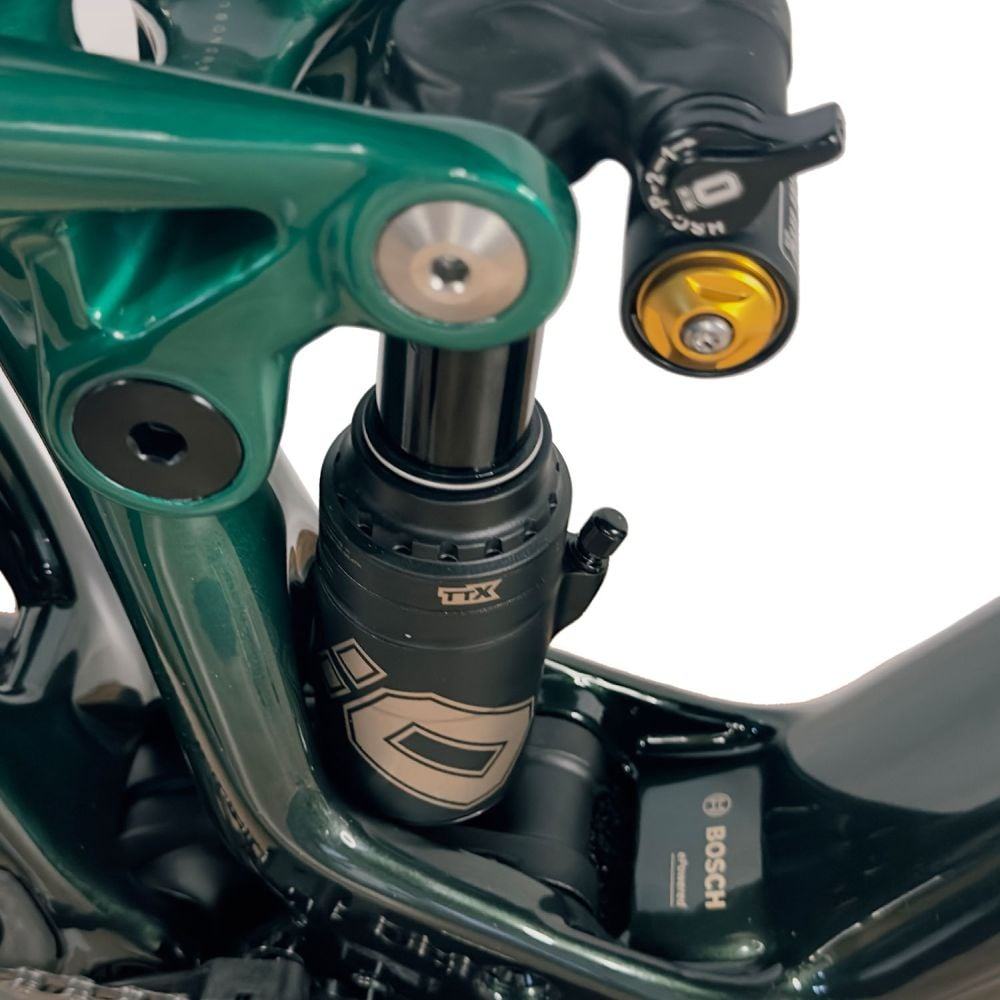

Öhlins TTX Air 205x65mm. Settings: High-speed compression via lever with climb mode. Low-speed compression, rebound, air pressure. Upper mounting: Trunnion, lower bearings: 25x10mm
Antrieb
Bosch Performance Line CX-Race (25Km/h), Smart System
Akku
Bosch Powertube 750Wh
Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Felge
Mavic E-Deemax S 29, 30mm inner width, welded rim made of Maxtal, PFP, tubeless ready, 28 spokes
Naben
VR: Mavic Boost 15x110mm, IS 6-hole | Rear: Mavic Boost 12x148mm, ID360 freehub system, IS 6-bolt, XD freehub
Reifen
VR: Maxxis Minion DHF 29x2.6, Tubeless Ready, 3C MAXX TERRA, EXO+ puncture protection, 120 TPI, foldable | HR: Maxxis Minion DHR II 29x2.6, Tubeless Ready, 3C MAXX TERRA, EXO+ Protection, 120 TPI, foldable
Laufradgröße
29"
Schaltwerk
Sram X01 Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
Schalthebel
Sram Trigger GX Eagle, 12-speed, X-Actuation 1:1, Single Click
Kette
Sram NX Eagle, 12-speed, Powerlock
Kurbel
E.13 TRS Race Carbon e-Bike, 165mm
Kassette
Sram XG-1275, 10-52T, 12-speed
Bremsen
Sram Code RSC, oversized 4-piston brake caliper, one-piece 200mm 6-hole Centerline brake disc, sintered metal brake pads with steel backplate
Lenker
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Desert, lock-on single, 135mm
Vorbau
Onoff Krypton FG 30mm, CNC, 31.8mm handlebar diameter
Sattel
FIZIK Terra Aidon X5 145mm
Sattelstütze
Onoff Pija retractable, internal cable routing, diameter 31.6mm, size S: 405x95-125mm, size M 458x120-150mm, size L: 498x140-170mm, size XL: 498x140-170mm
Pedale
Nicht im Lieferumfang enthalten
