Mondraker Crafty Carbon XR LTD Limited Edition brown 2023
MONDRAKER'S LIMITED EDITION MODEL
The new Mondraker CRAFTY CARBON On the one hand it is the unique paintwork and on the other hand the BOSCH Performance Line CX Race motor that makes the bike so special. The CRAFTY CARBON XR LTD is one of the first bikes available on the market to use this new engine. A premium combination of elegant appearance and previously unseen engine performance and characteristics. The bike will only be available in very limited quantities.

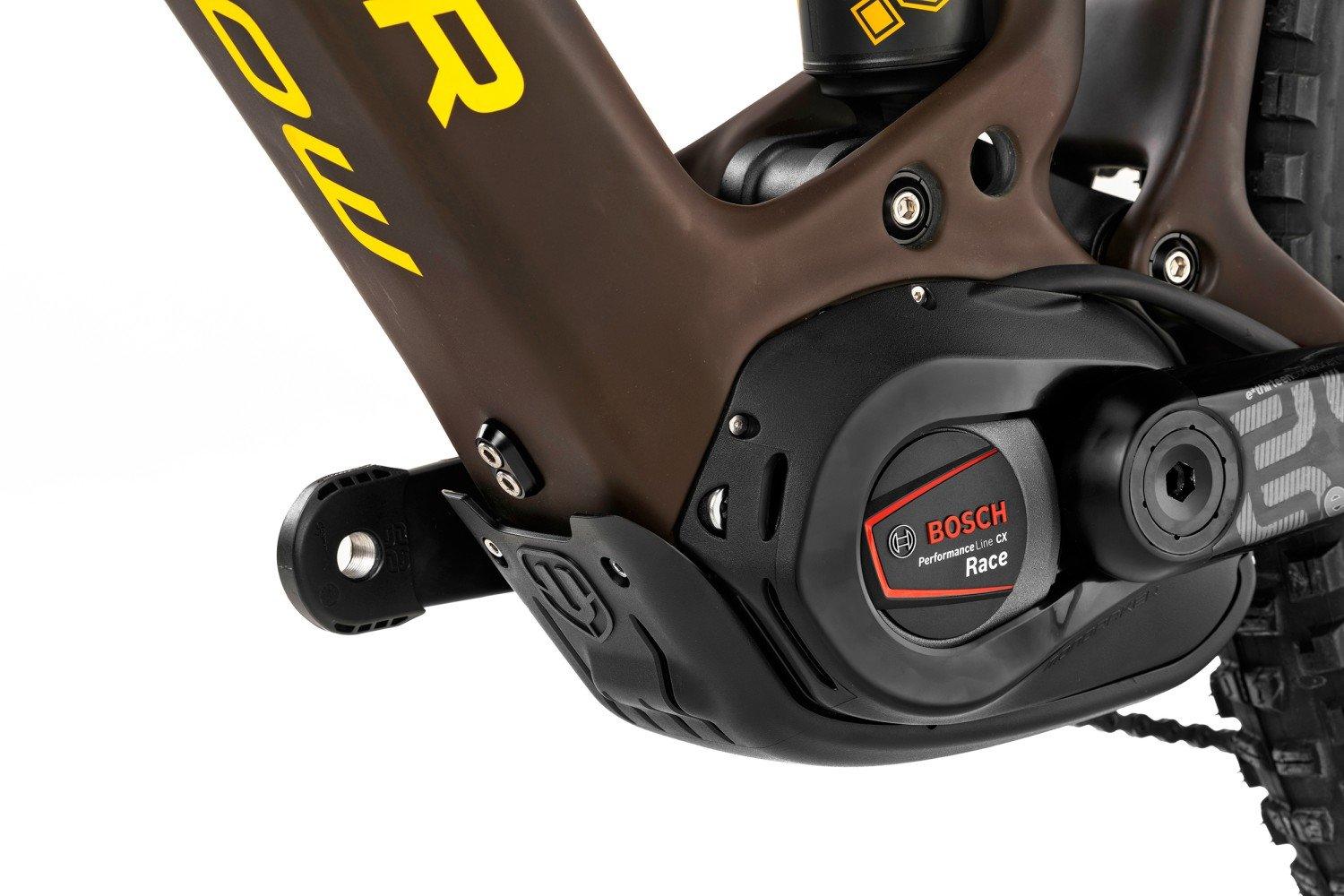

NEW BOSCH PERFORMANCE LINE CX RACE ENGINE
Long name - clear statement: Race. The new Bosch motor is as exclusive as it is powerful. More aggressive, dynamic and with unprecedented acceleration, Race mode offers 400% engine assistance compared to the 340% in Turbo mode of the traditional Performance CX model. The torque remains the same at a whopping 85 Nm. The motor, equipped with a magnesium housing, weighs 2,750 grams, making it exactly 150 grams lighter than the standard motor in the Performance Line CX series. One of the key features of the new Bosch Performance Line CX Race engine is the "Race" mode, which is one mode above the traditional "Turbo" mode. Both modes can be configured via the eBike Flow app, as can the settings for further support levels, dynamic acceleration, initial acceleration, maximum speed and maximum torque. Another feature of the race mode is the “extended boost”, which is already known from the eMTB mode, but in race mode has an even longer boost, which opens up unimagined possibilities in technical passages, single trails and uphills.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Crafty Stealth Air full carbon, 150mm travel, Forward Geometry, Boost 12x148mm, upper rocker monoblock one-piece, HHG internally routed lines and cables, sealed "MAX Capacity" bearings, extra large 17mm axles.
Steuersatz
Acros Custom for 1-1/2" head tube, angular contact ball bearings 40x52x7, internal cable routing
Gabel
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, butted head tube, Boost 15x110mm axle, 44mm offset. Settings: High-speed compression via lever with climb mode, low-speed compression, rebound, air pressure, ramp chamber
Dämpfer
Öhlins TTX Air 205x65mm. Settings: High-speed compression via lever with climb mode. Low-speed compression, rebound, air pressure. Upper mounting: Trunnion, lower bearings: 25x10mm
Antrieb
Bosch Performance Line CX Cruise (25 km/h) GEN4 BS3
Akku
Bosch Powertube 750Wh
Display
Bosch Kiox300
Felge
Mavic E-Deemax S 29, 30mm inner width, welded rim made of Maxtal, PFP, tubeless ready, 28 spokes
Naben
Front: Mavic Boost 15x110mm, IS 6-hole, Rear: Mavic Boost 12x148mm, ID360 freewheel system, IS 6-hole, XD freehub
Reifen
VR: Maxxis Minion DHF 29x2.6, Tubeless Ready, 3C MAXX TERRA, EXO+ puncture protection, 120 TPI, foldable, HR: Maxxis Minion DHR II 29x2.6, Tubeless Ready, 3C MAXX TERRA, EXO+ Protection, 120 TPI, foldable
Laufradgröße
29"
Schaltwerk
Sram X01 Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
Schalthebel
Sram Trigger GX Eagle, 12-speed, X-Actuation 1:1, Single Click
Kette
Sram NX Eagle, 12-speed, Powerlock
Kassette
Sram XG-1275, 10-52T, 12-speed
Bremsen
Front: Sram Code RSC, oversized 4-piston brake caliper, one-piece 200mm 6-hole centerline brake disc, sintered metal brake pads with steel back plate, Rear: Sram Code RSC, oversized 4-piston brake caliper, one-piece 200mm 6-hole centerline brake disc
Lenker
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Desert, lock-on single, 135mm
Vorbau
Onoff Krypton FG 30mm, CNC, 31.8mm handlebar diameter
Sattel
FIZIK Terra Aidon X5 145mm
Sattelstütze
Onoff Pija retractable, internal cable routing, diameter 31.6mm, size S: 405x95-125mm, size M 458x120-150mm, size L: 498x140-170mm, size XL: 498x140-170mm
Pedale
Nicht im Lieferumfang enthalten
