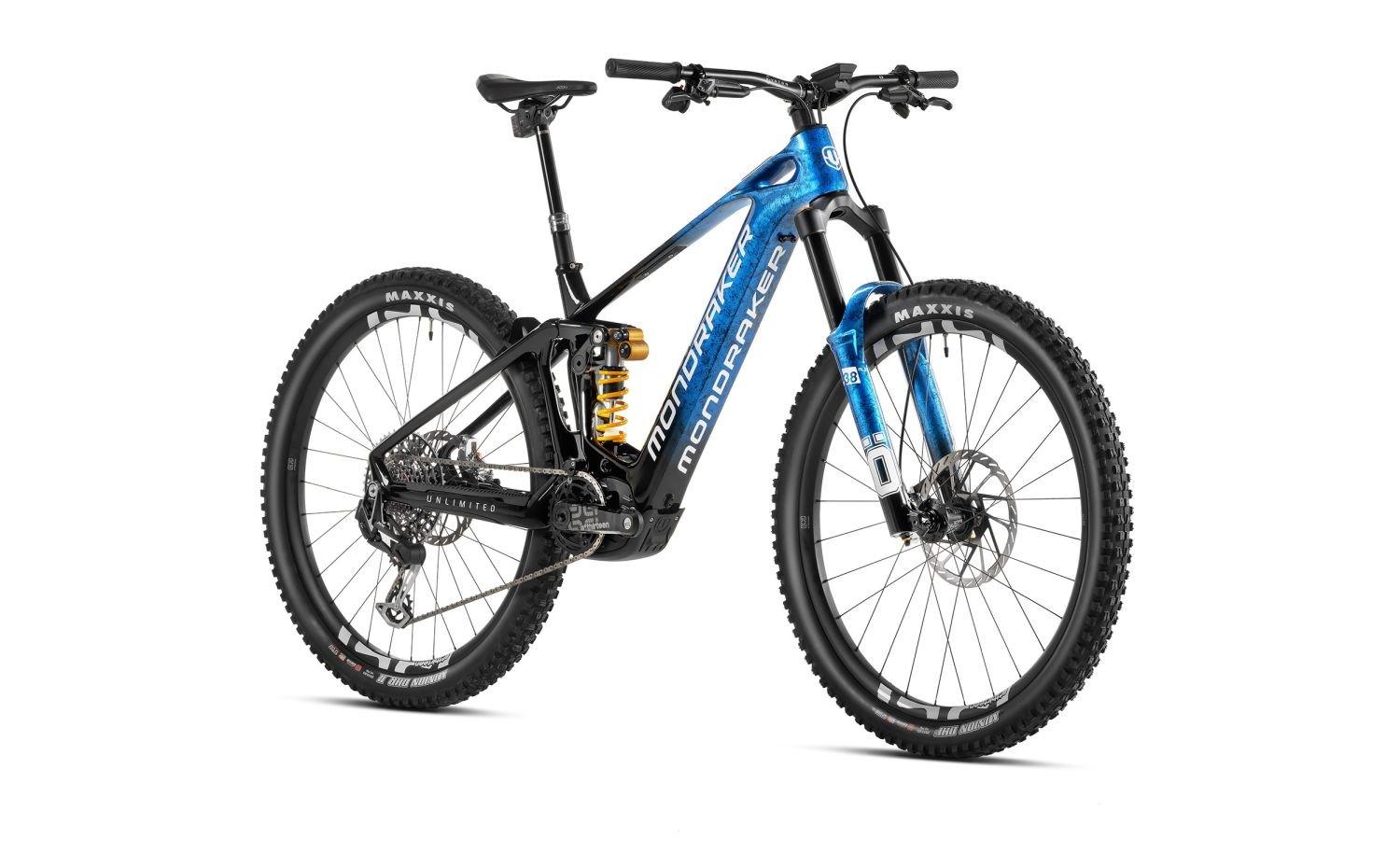

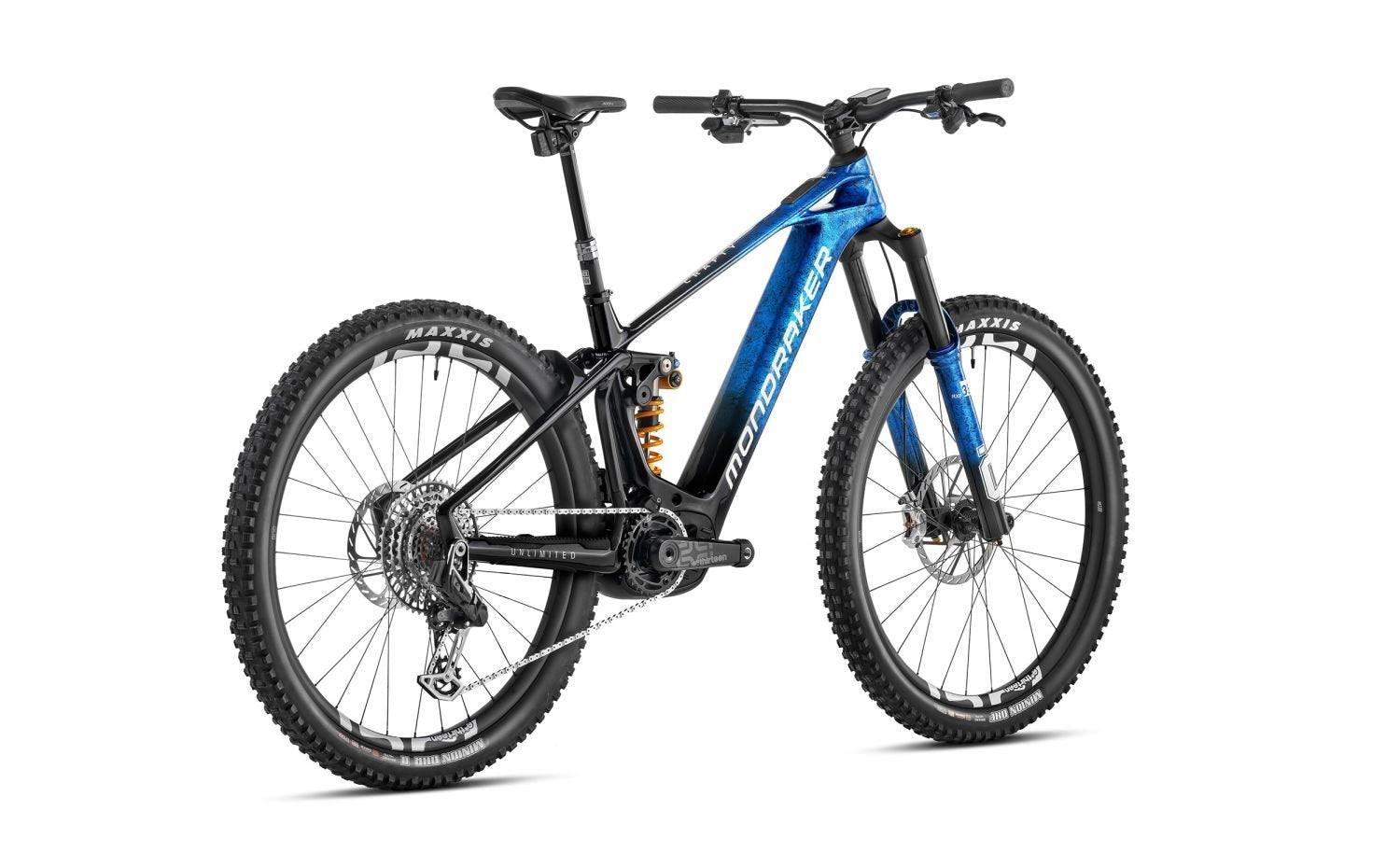

Crafty Carbon Unlimited 2023 | E-mountain bike
Every new project at Mondraker starts with an idea. The implementation of the idea is then based on our love for bikes, the dedication of the engineers and the endless creativity of the designers. “Limit” is not part of our vocabulary, but sometimes there are exceptions. The new CRAFTY CARBON UNLIMITED ELECTRIC BLUE is such an exception. The idea was to design 50 incomparable, unique and strictly limited bikes.
The CRAFTY CARBON UNLIMITED ELECTRIC BLUE. The premiere of the “Mondraker Capsules”. 100% built by hand, 100% painted by hand and 100% designed in our headquarters in Elche (Spain). The most exclusive paint job in our company history. 50 unique bikes, each numbered and provided with a certificate of authenticity. A Mondraker CRAFTY CARBON has never been so limited!
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten

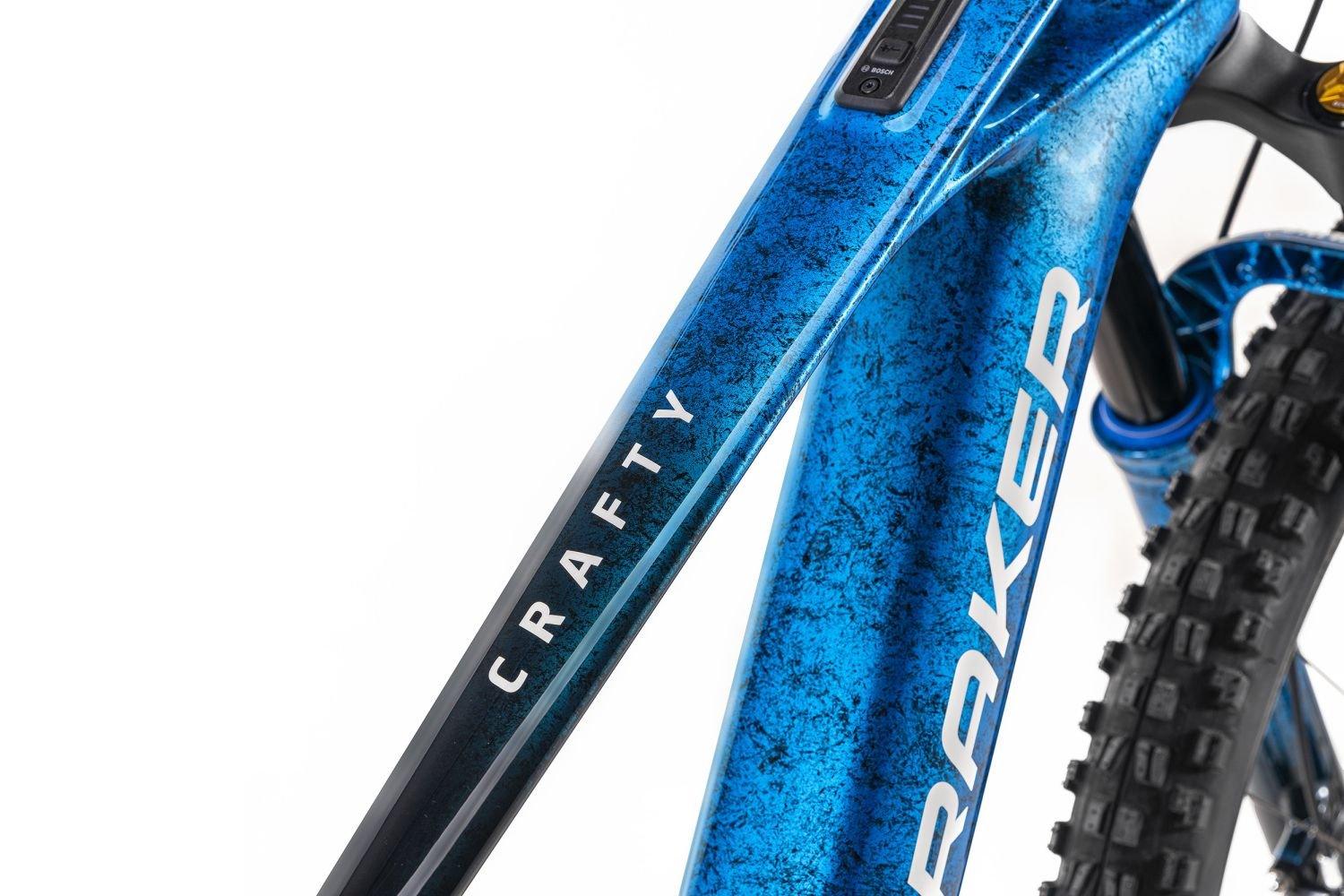

Rahmen

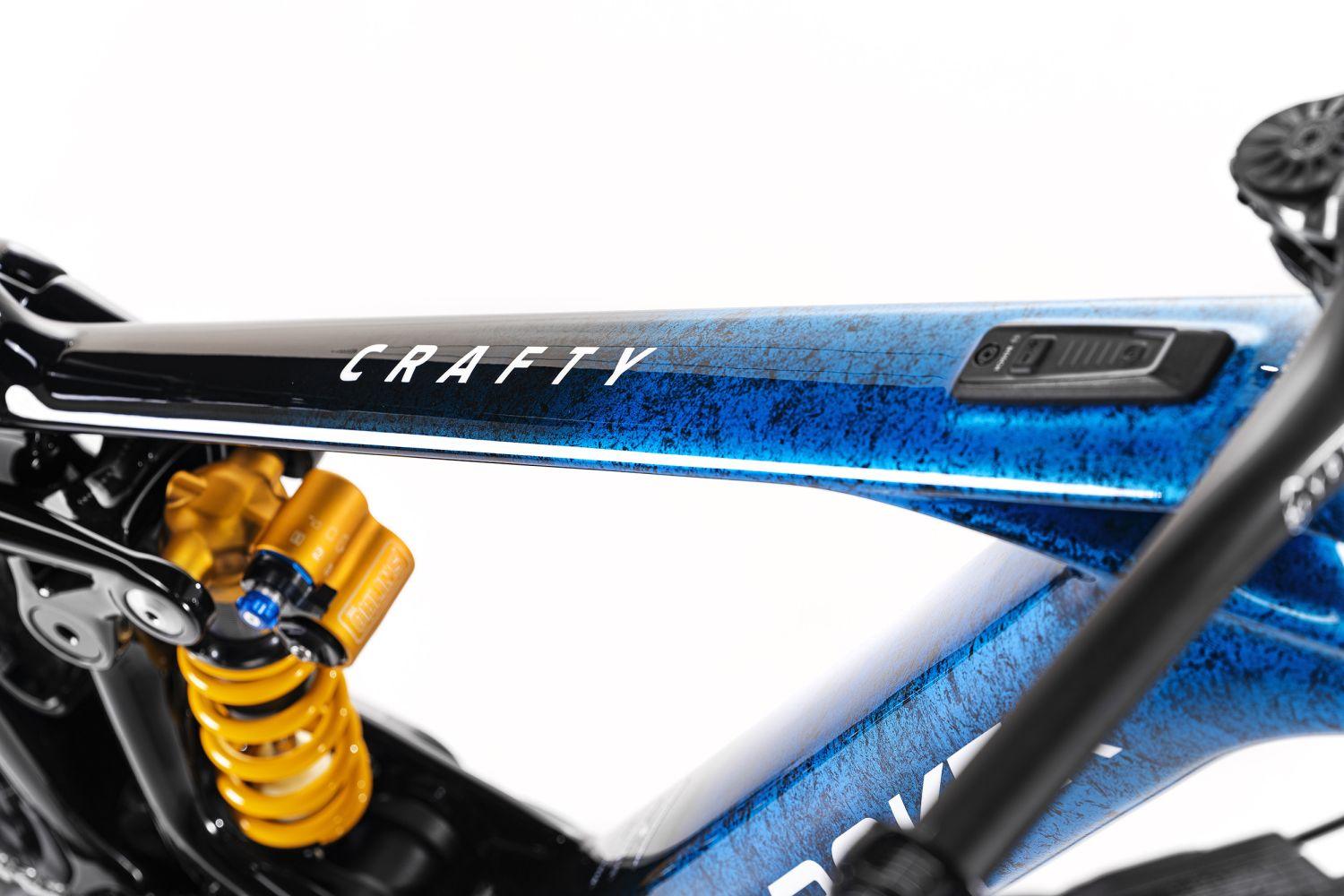

Crafty Stealth Air Carbon, e-bike specific Zero Suspension System, 150mm travel, Forward Geometry, integrated non-removable battery, Boost 12x148mm rear axle, konifiziepacity" bearings, extra large 17mm axles

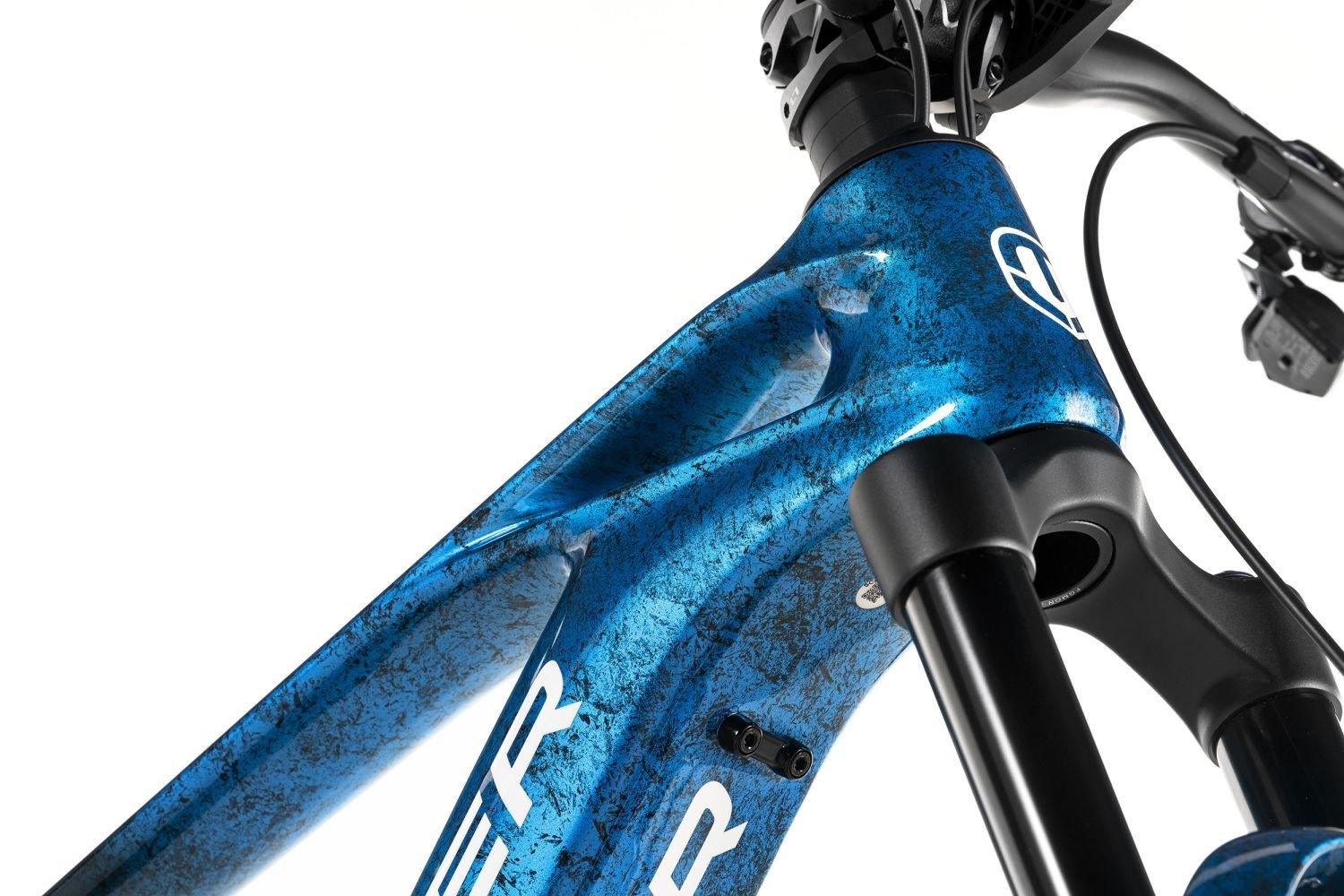

Steuersatz
Acros Custom for 1-1/2" head tube, angular contact ball bearings 40x52x7, internal cable routing

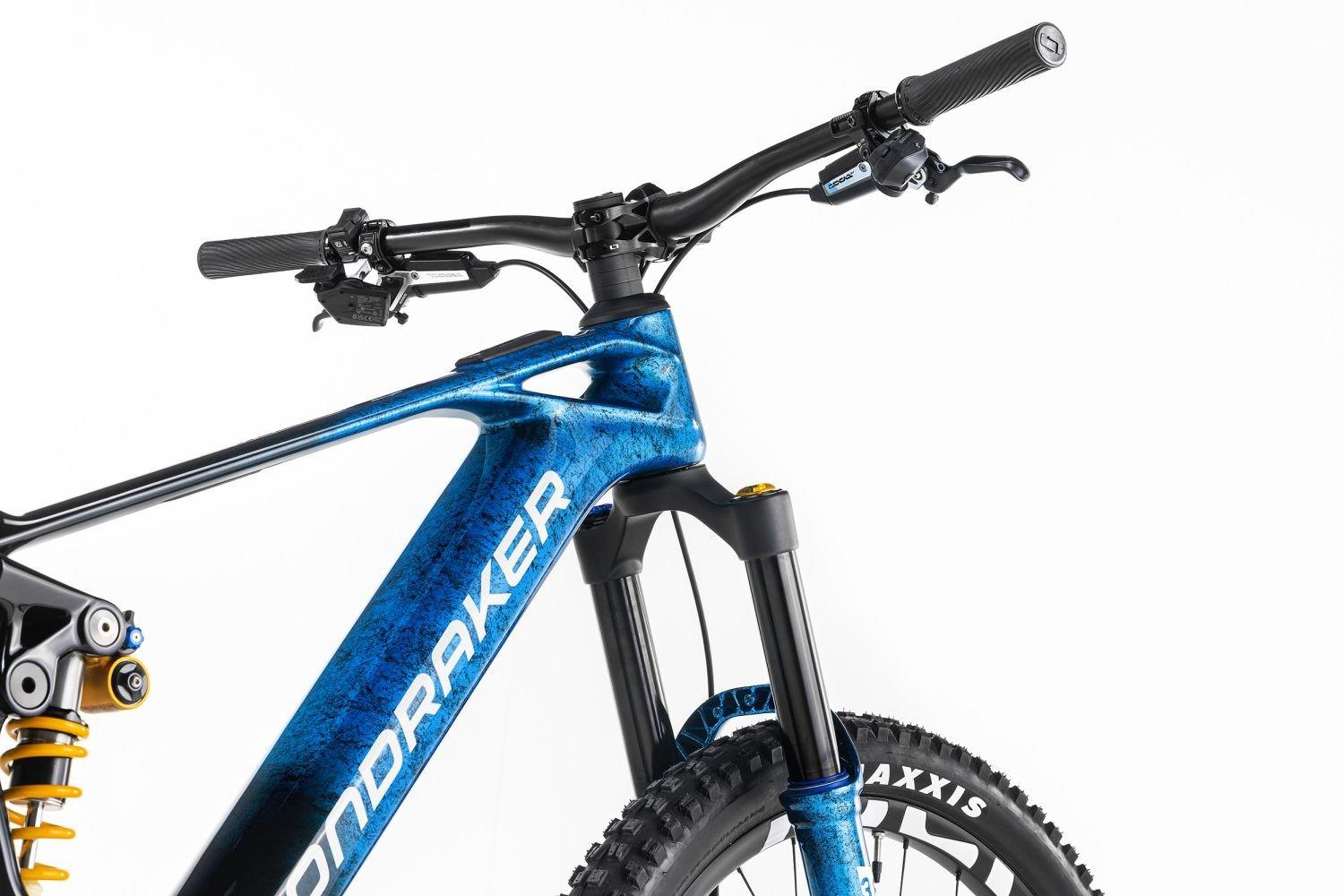

Gabel

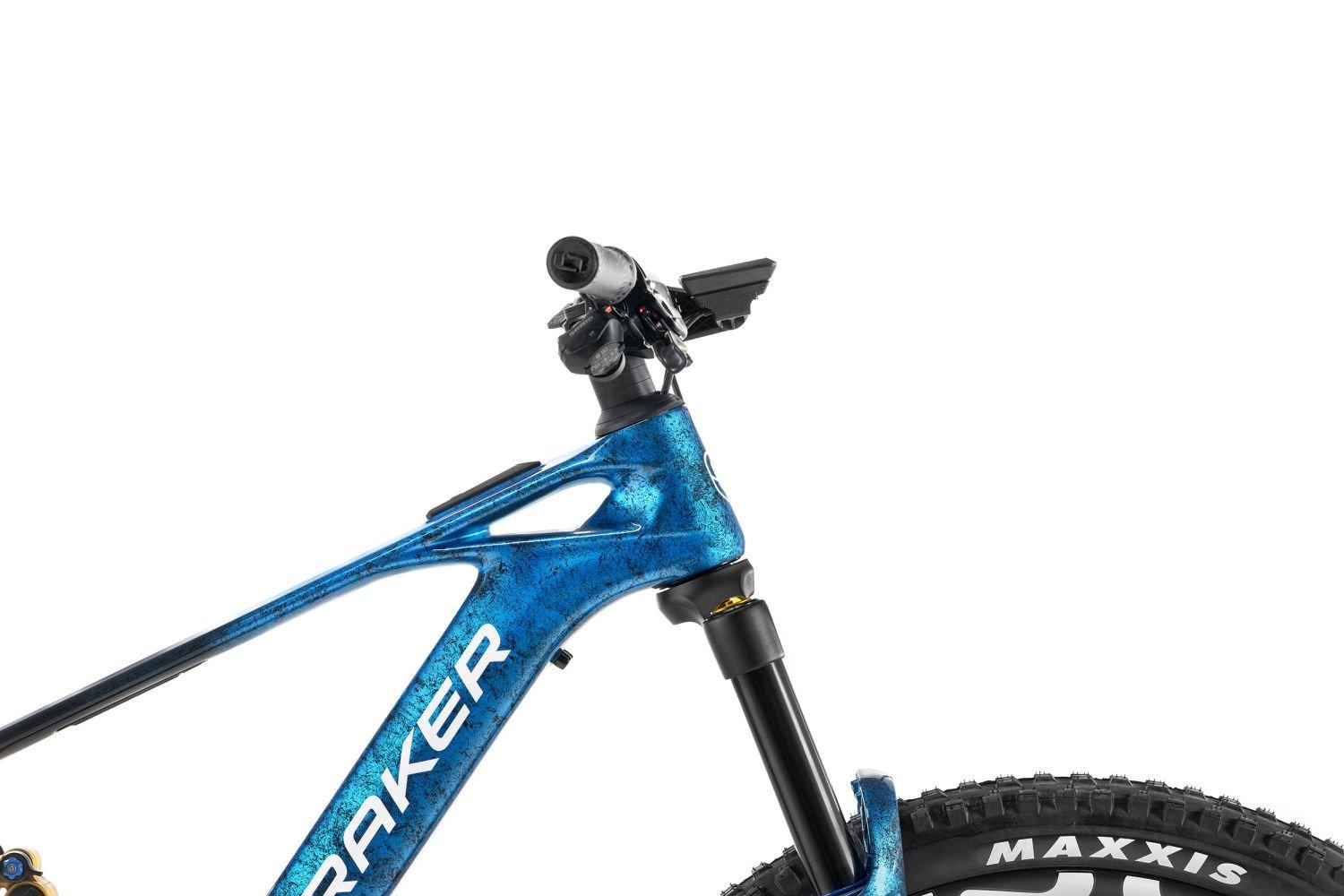

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, butted head tube, Boost 15x110mm axle, 44mm offset. Settings: High-speed compression via lever with climb mode, low-speed compression, rebound, air pressure, ramp chamber

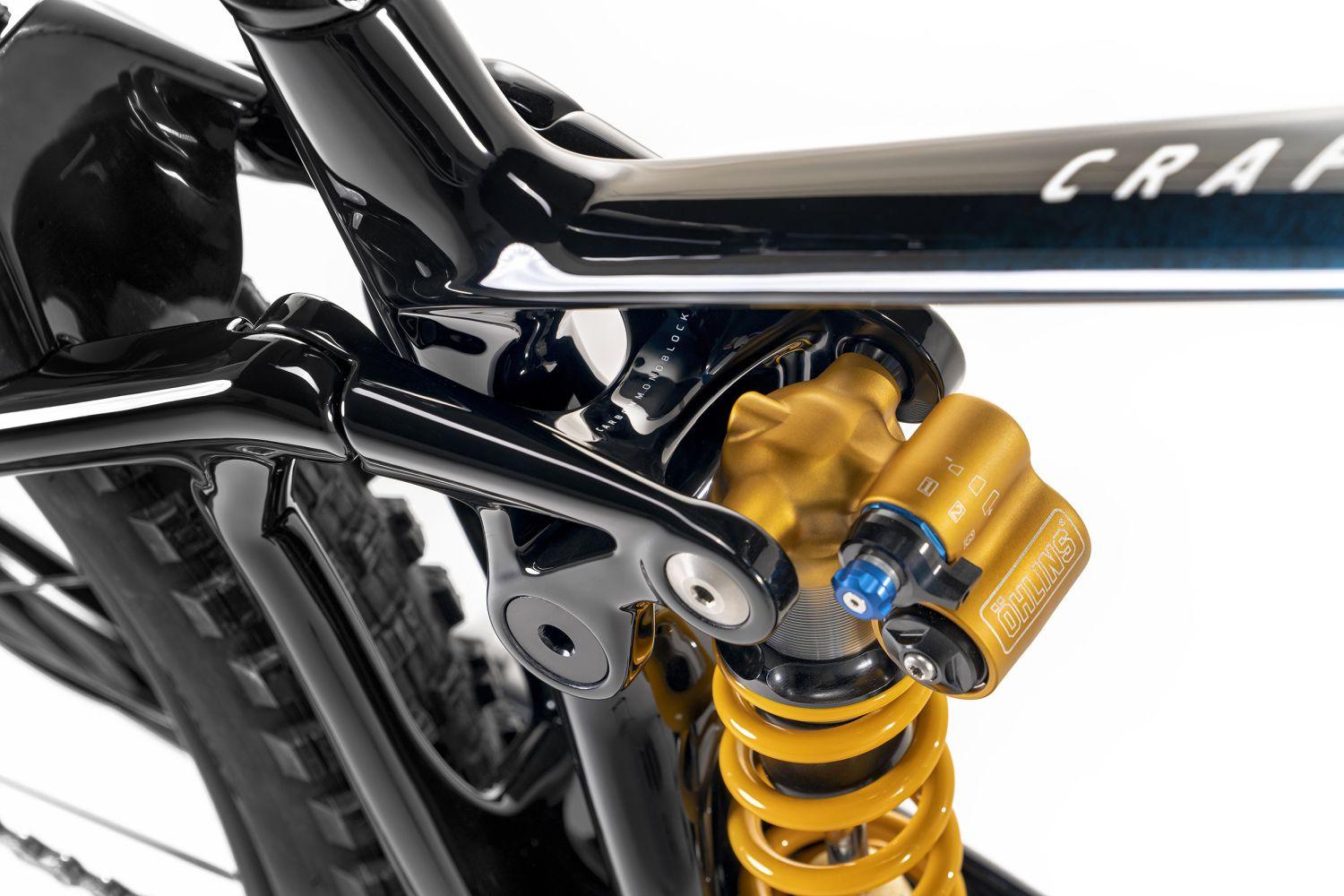

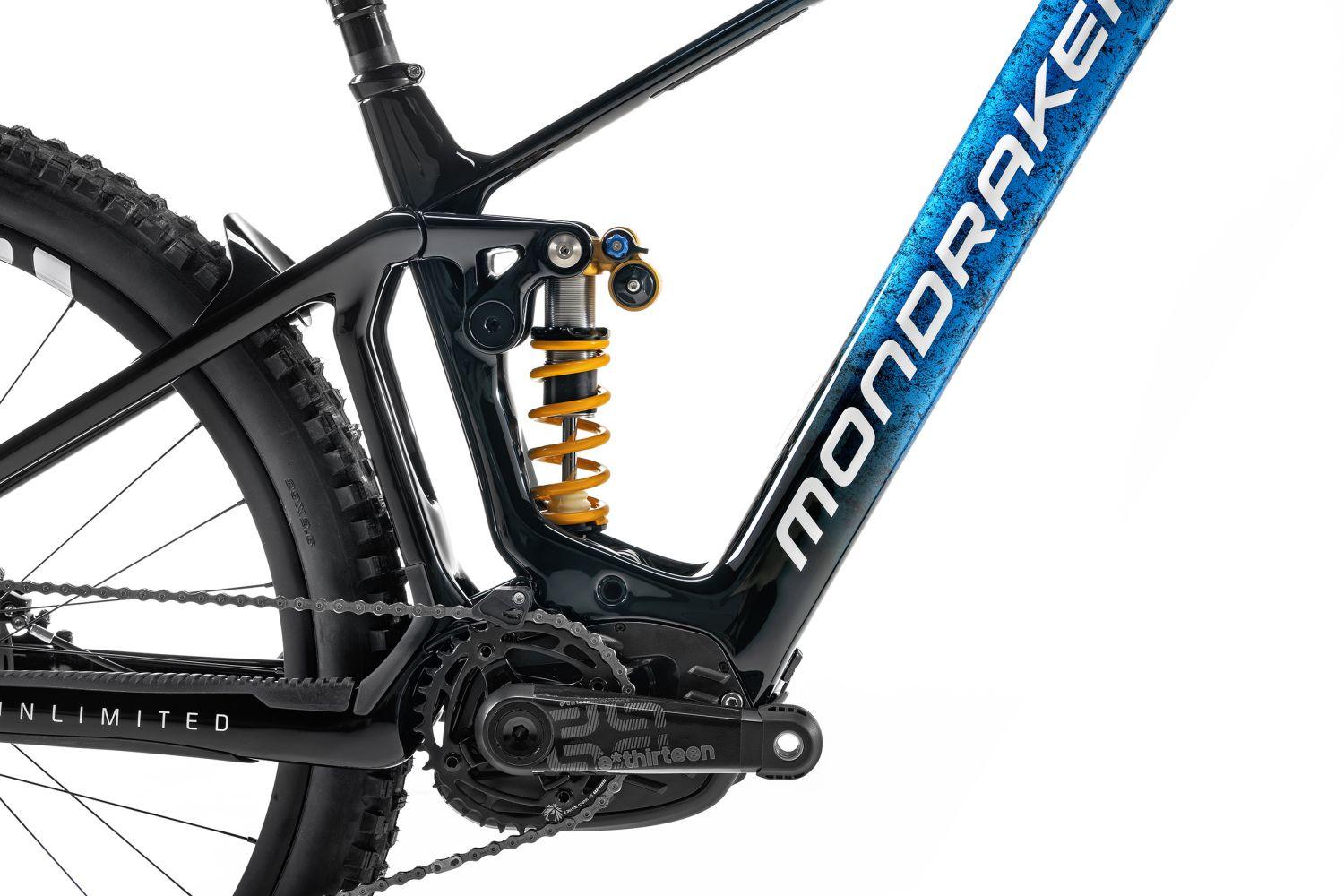

Dämpfer

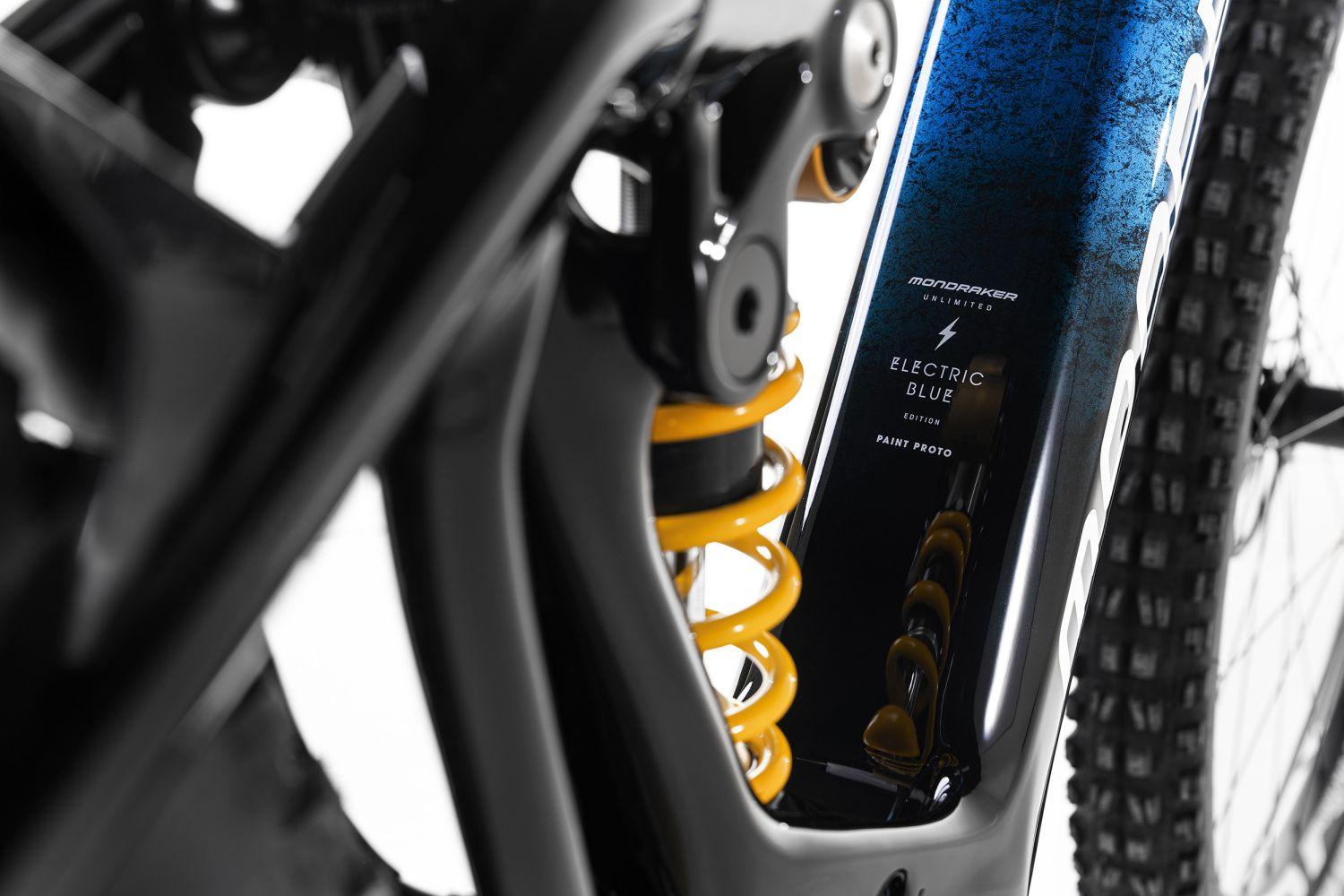

Öhlins TTX22M.2 NH Coil 205X65mm. 3-way high-speed compression adjustment. 16-way adjustable low speed compression. 7-way adjustable rebound.Trunnion shockmount at the top, bushings at the bottom shockmount 25x10mm
Antrieb

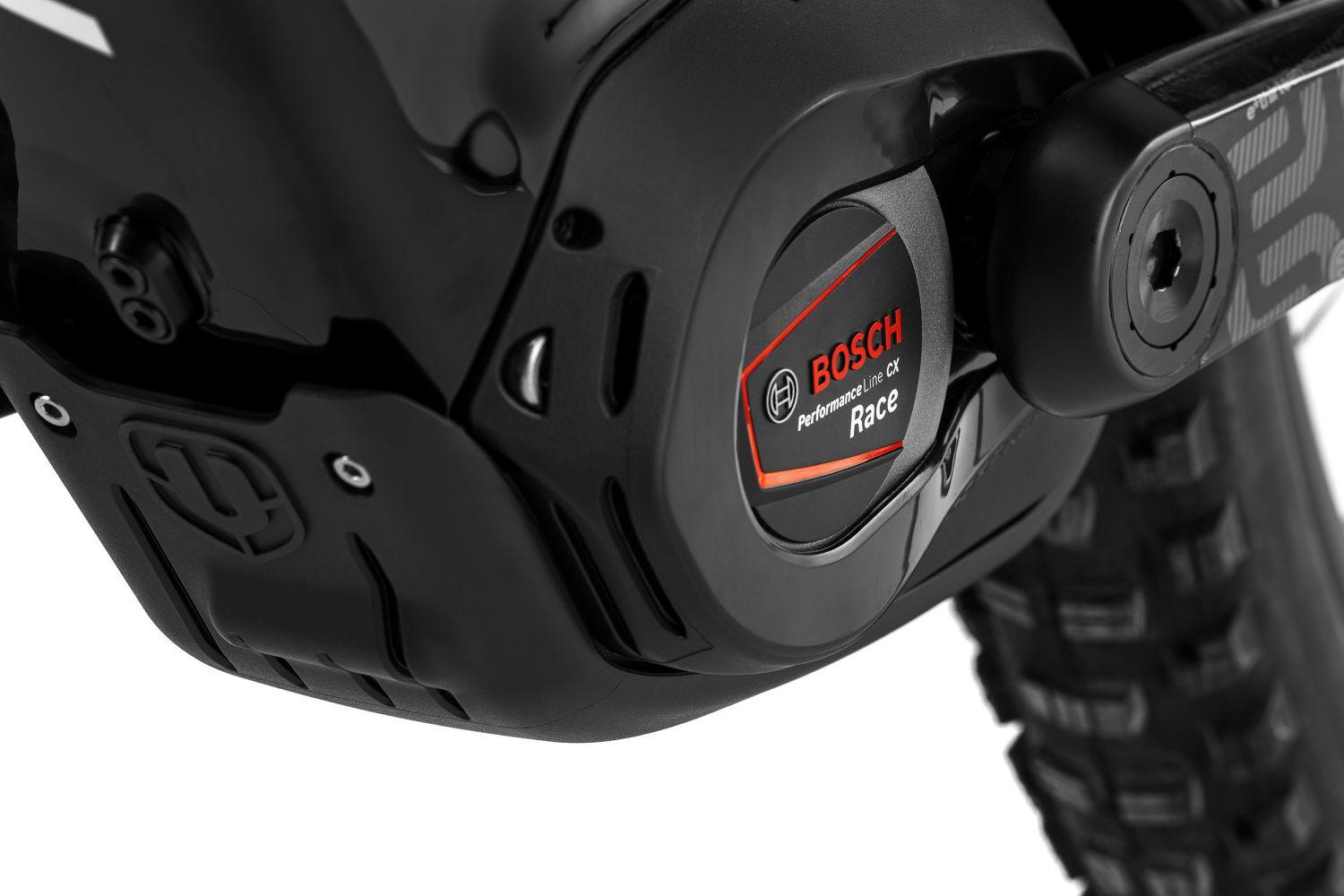

Bosch Performance Line CX-R Cruise (25Km/h) Smart System
Akku
Bosch Powertube 750Wh
Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Felge
e*thirteen Race Carbon Enduro IW30, hookless carbon rim, 30mm inner width, tubeless ready, 28 spokes
Naben
Front: e*thirteen Boost 15x110mm, triple sealed, milled aluminum, IS 6-hole | Rear: e*thirteen Boost 12x148mm, triple sealed, milled aluminum with 6° gearing, IS 6-hole, XD freewheel
Reifen
VR: Maxxis Minion DHF 29x2.6, Tubeless Ready, 3C MAXX TERRA, EXO+ puncture protection, 120 TPI, foldable | HR: Maxxis Minion DHR II 29x2.6, Tubeless Ready, 3C MAXX TERRA, EXO+ Protection, 120 TPI, foldable
Laufradgröße
29"

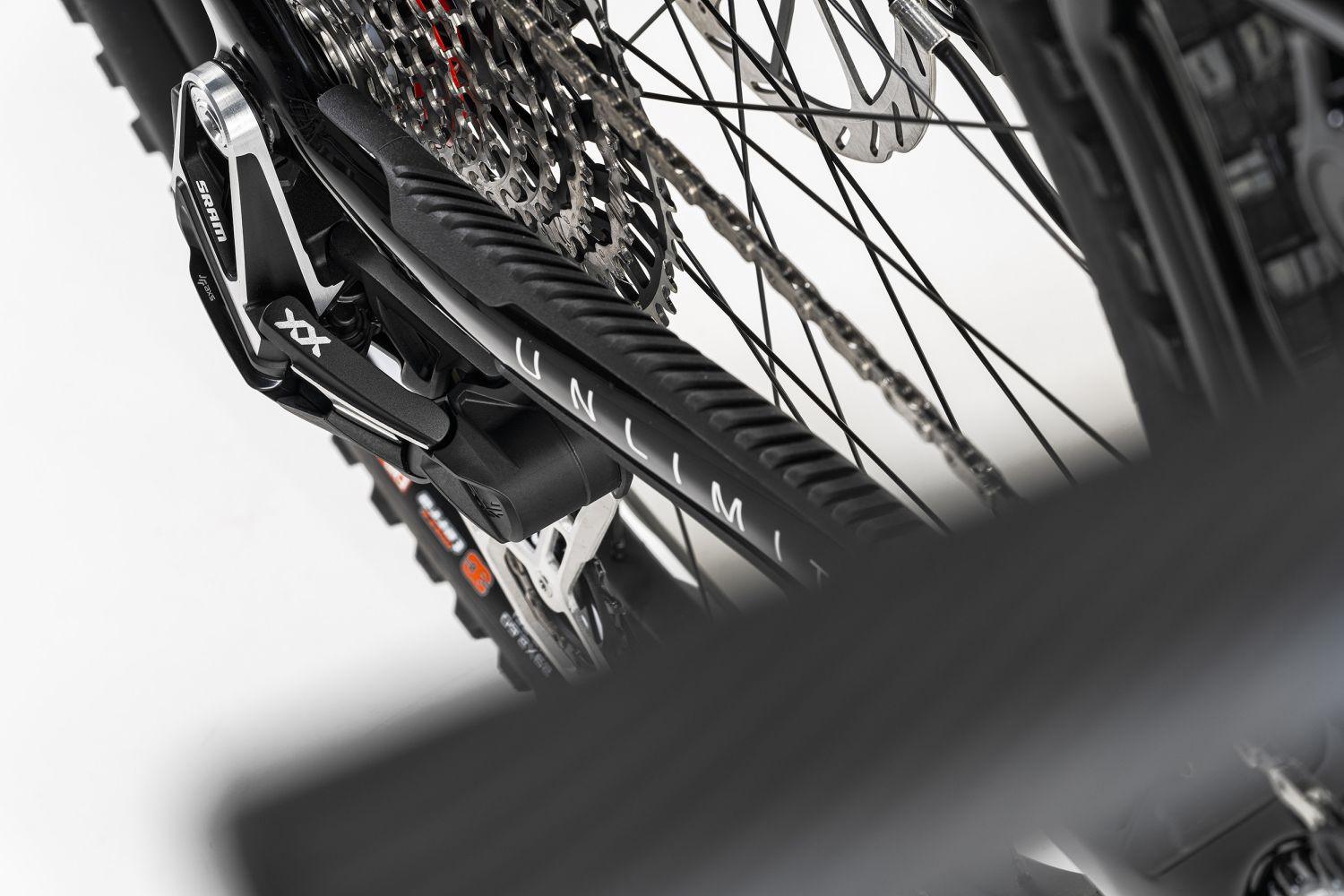

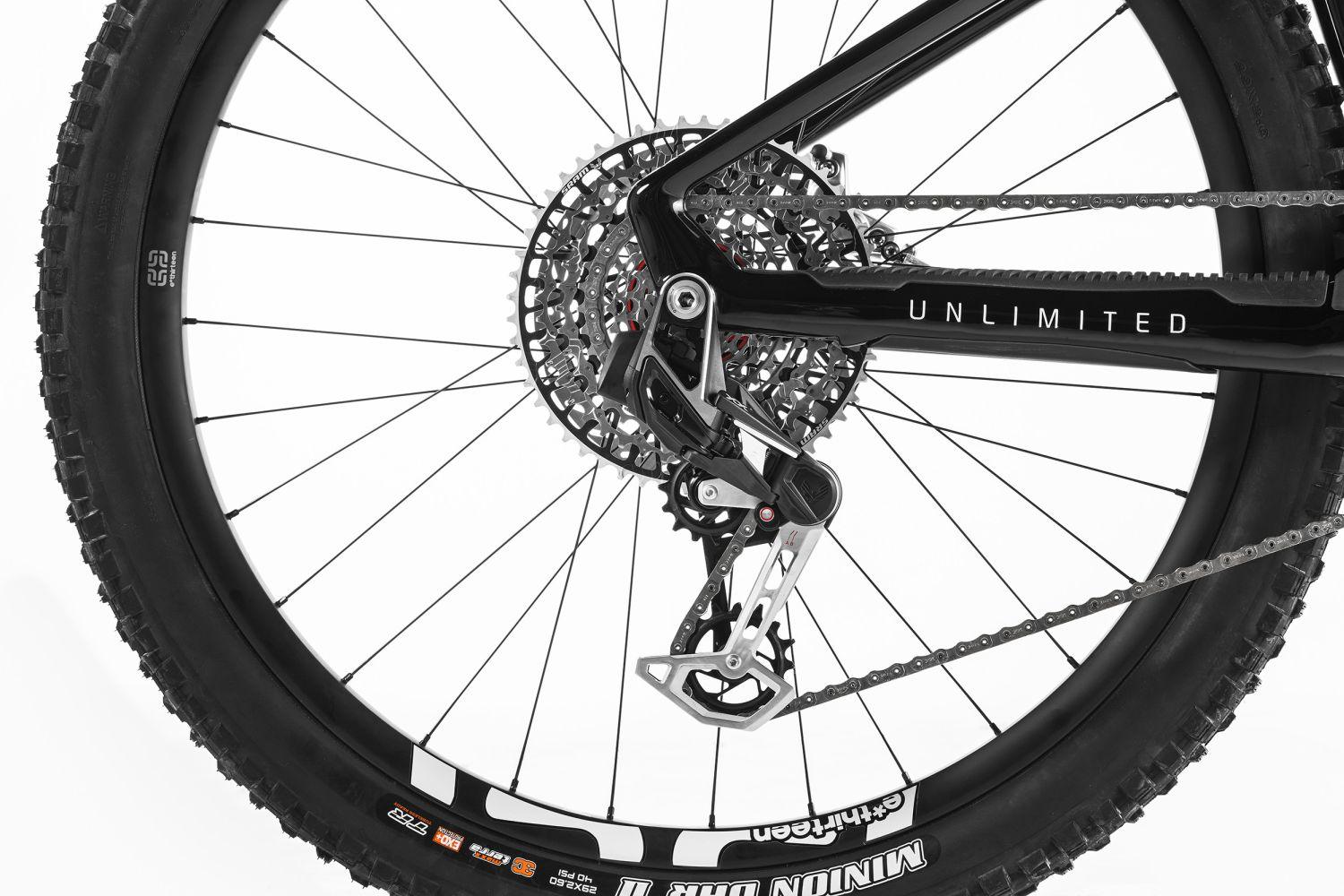

Schaltwerk

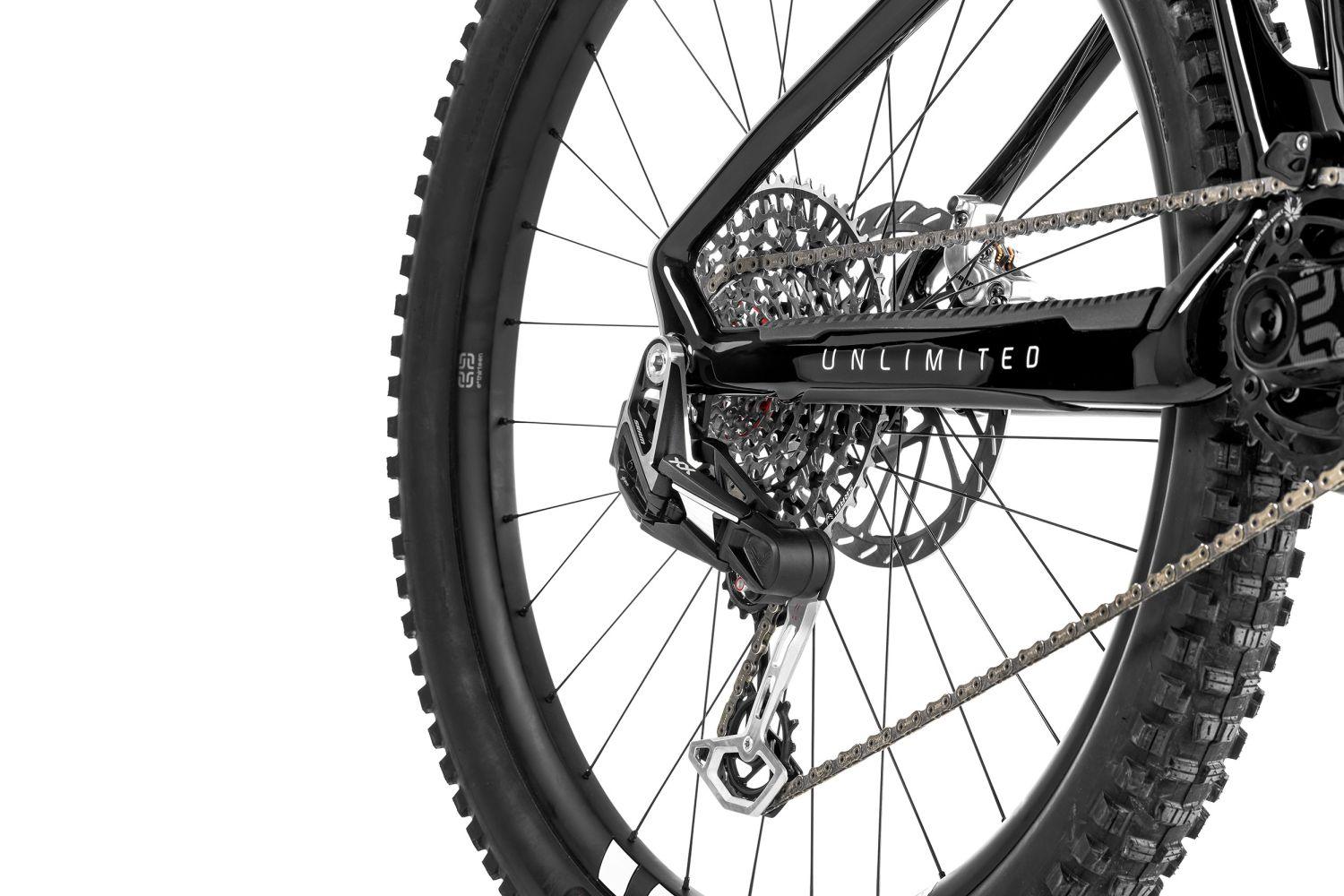

Sram XX Eagle AXS, T-Type Roller Bearing Clutch, Cage Lock, 1x12

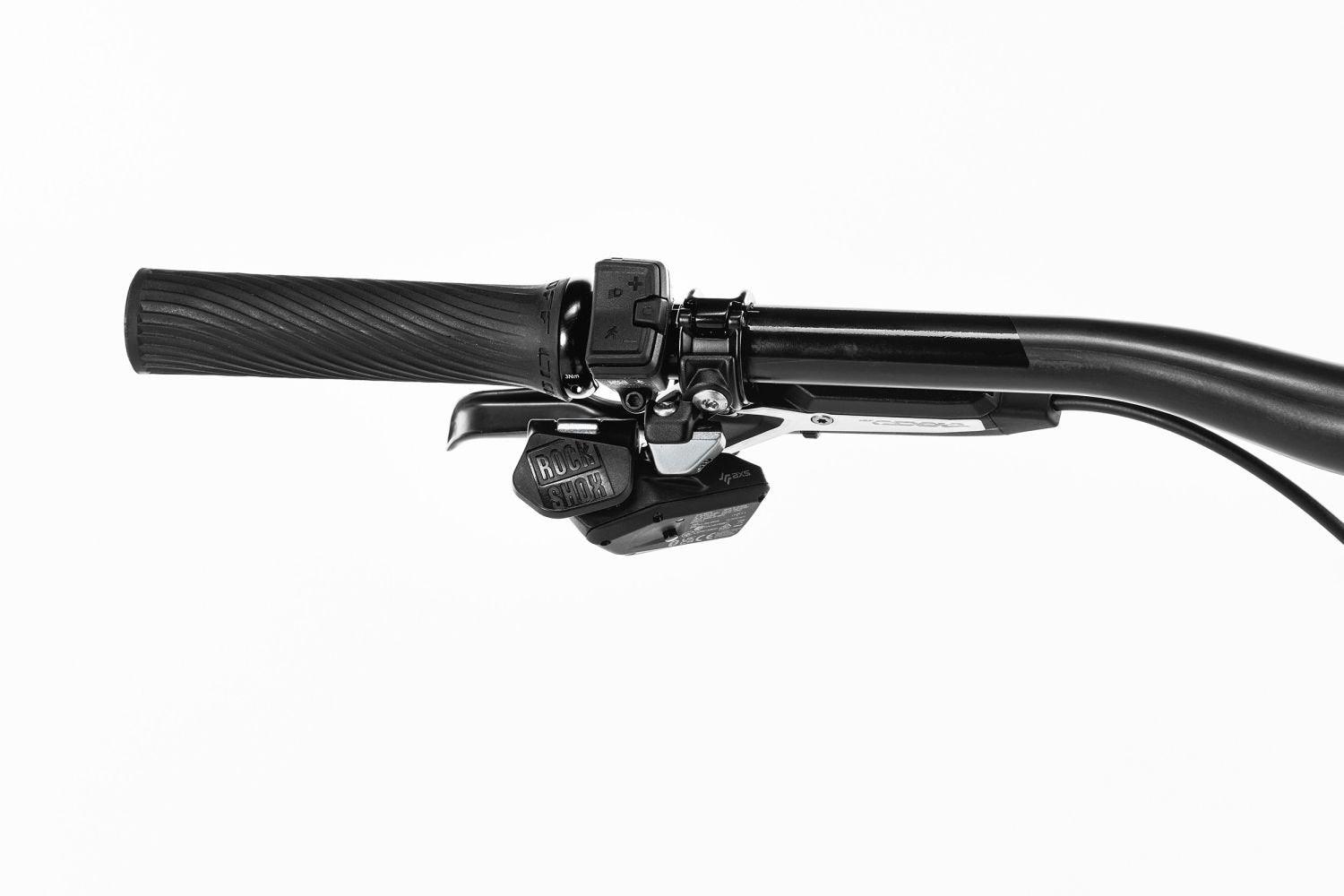

Schalthebel

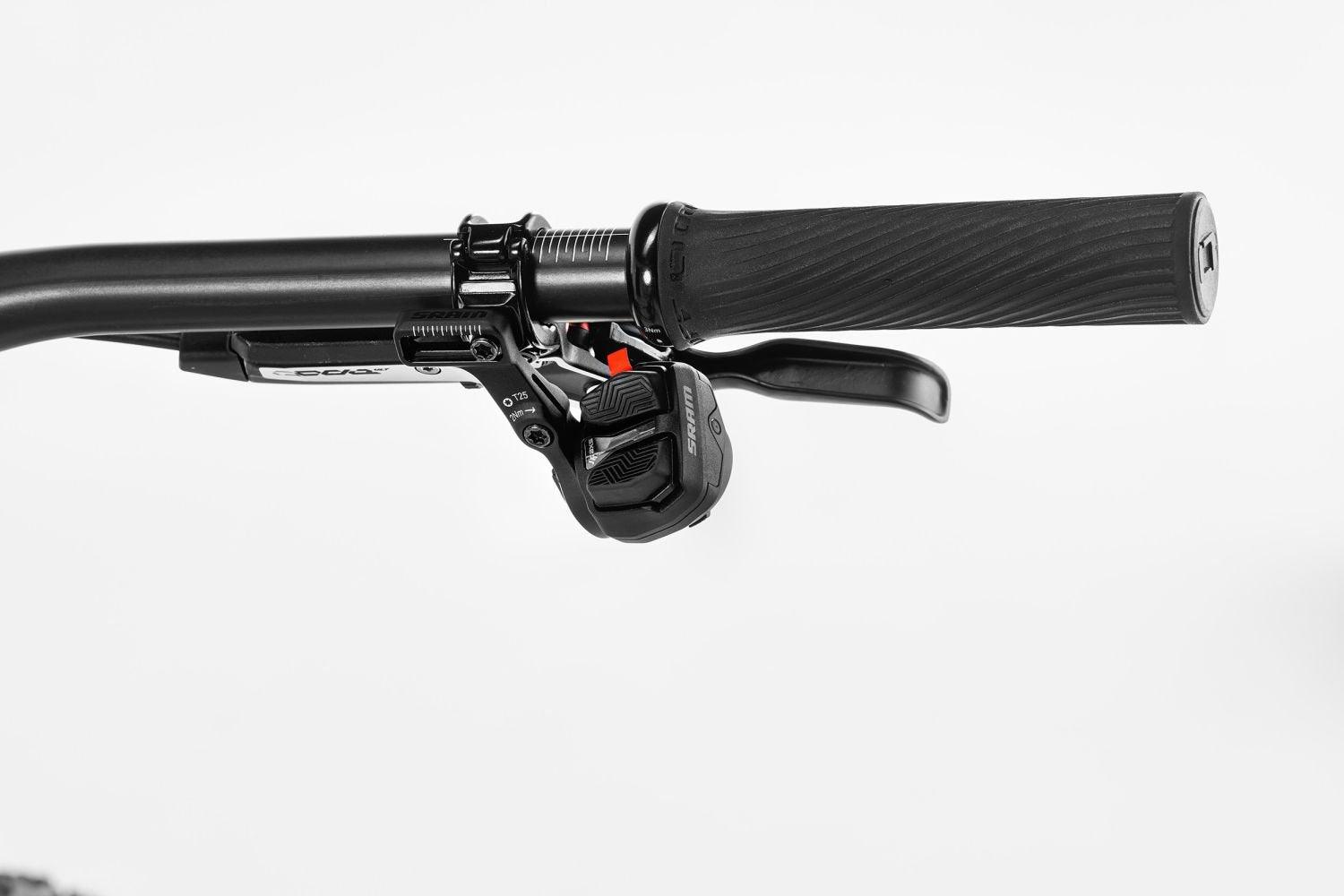

Sram Eagle AXS Pod MMX, 12-speed
Kette
Sram XX Eagle, 12-speed, T-TYPE Powerlock
Kurbel
E.13 TRS Race Carbon e-Bike, 165mm
Kassette
Sram XS-1297, 10-52T, T-Type, 12-speed

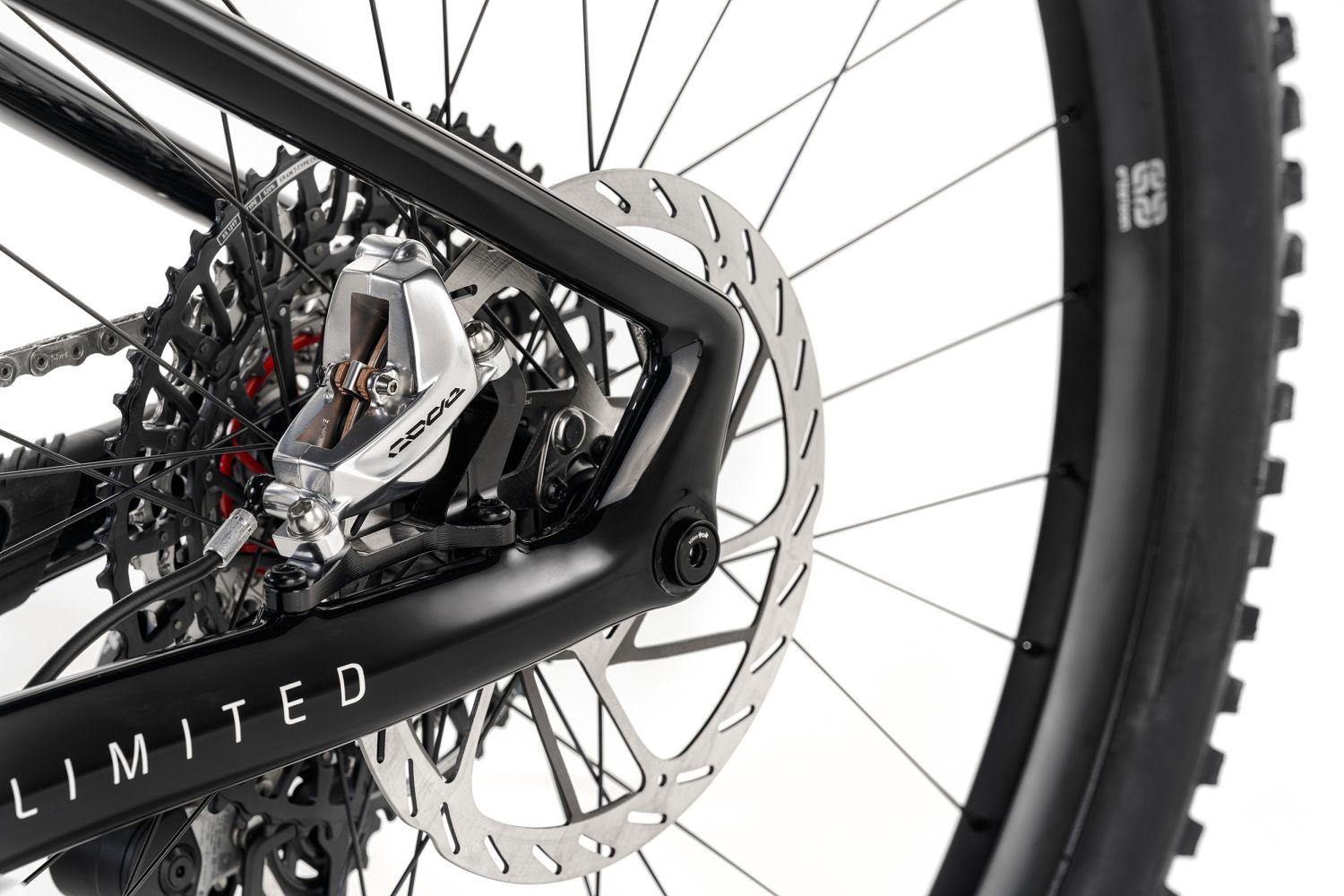

Bremsen
Sram Code Ultimate Stealth, oversized 4-piston brake caliper, one-piece 200mm 6-hole centerline brake disc, sintered metal brake pads with steel backplate
Lenker
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm handlebar diameter
Griffe
Onoff Desert, lock-on single, 135mm
Vorbau
Onoff Krypton FG 30mm, CNC, 31.8mm handlebar diameter

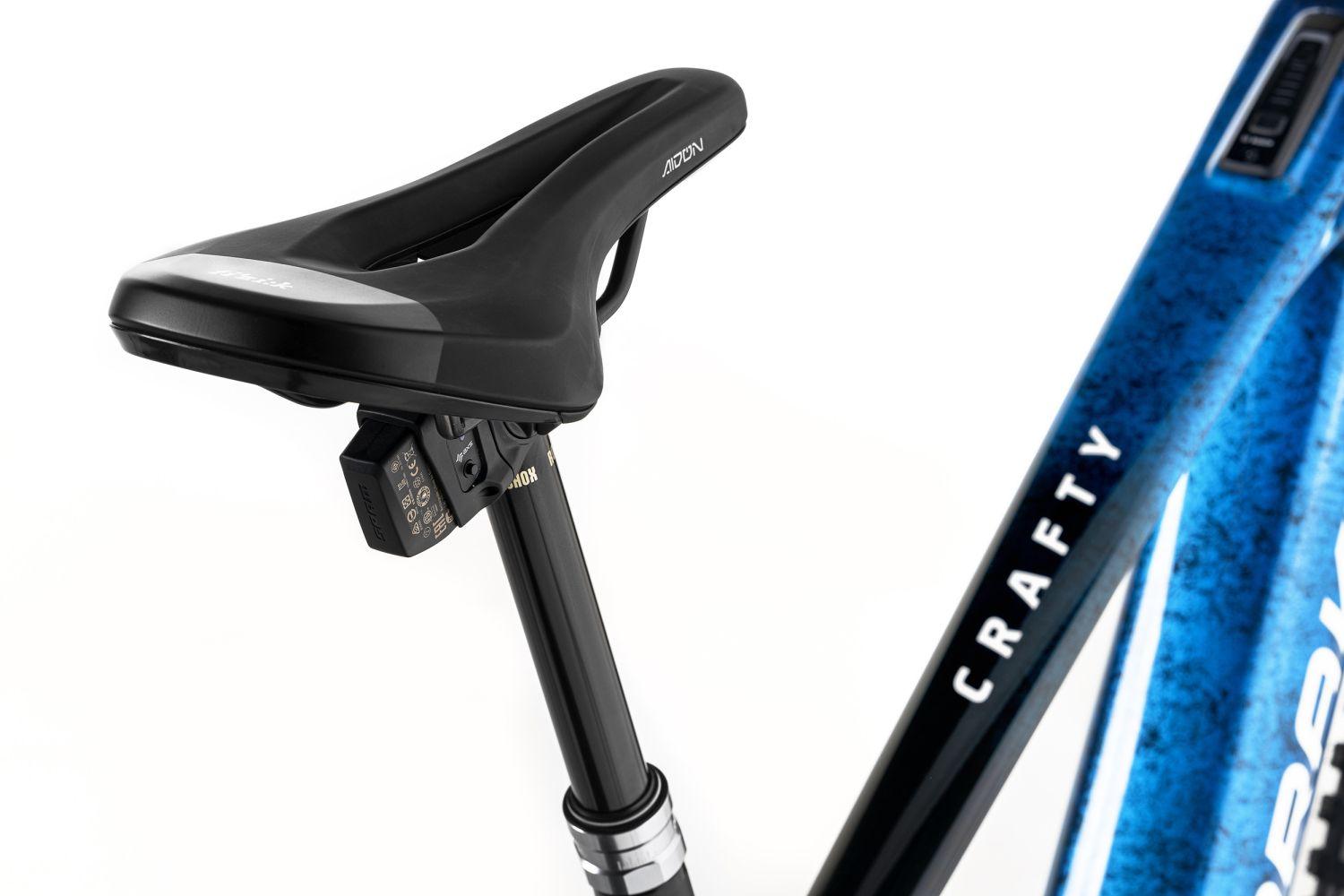

Sattel
FIZIK Terra Aidon X5 145mm

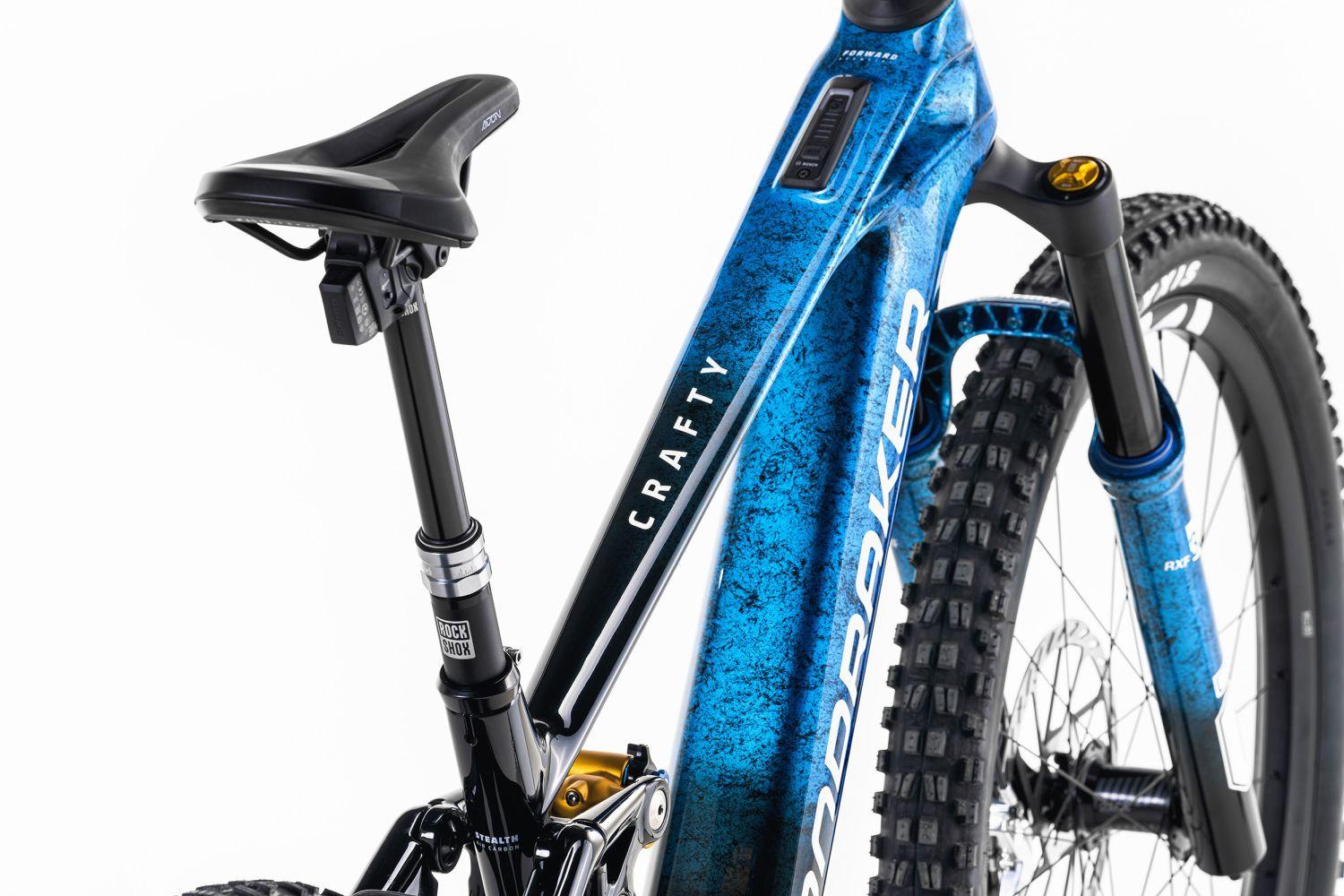

Sattelstütze
RockShox Reverb Stealth AXS, diameter 31.6mm, size S: 390x125mm, size M: 440x150mm, size L/XL: 440x170mm
Pedale
Nicht im Lieferumfang enthalten
