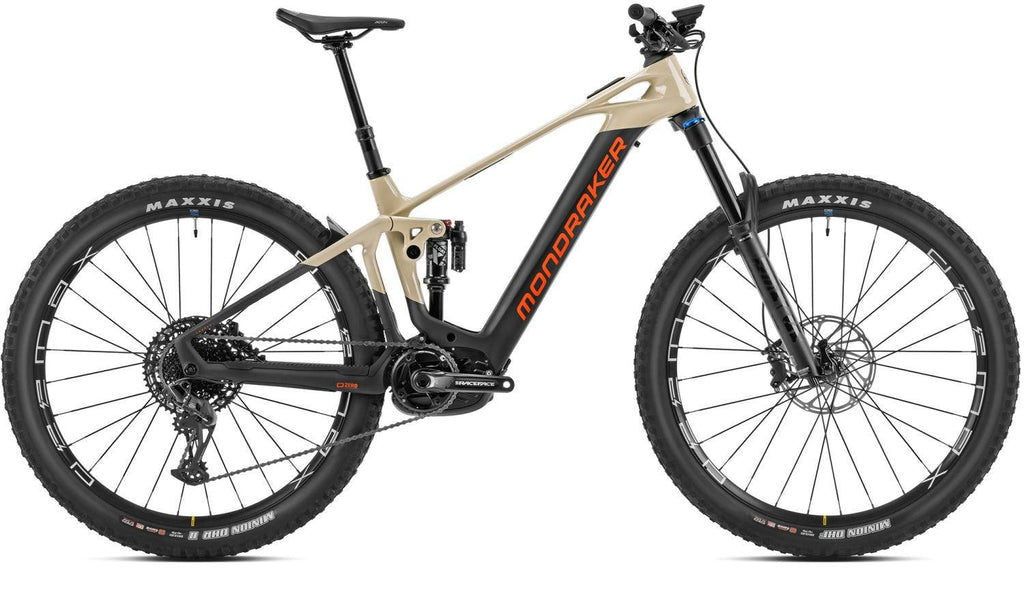

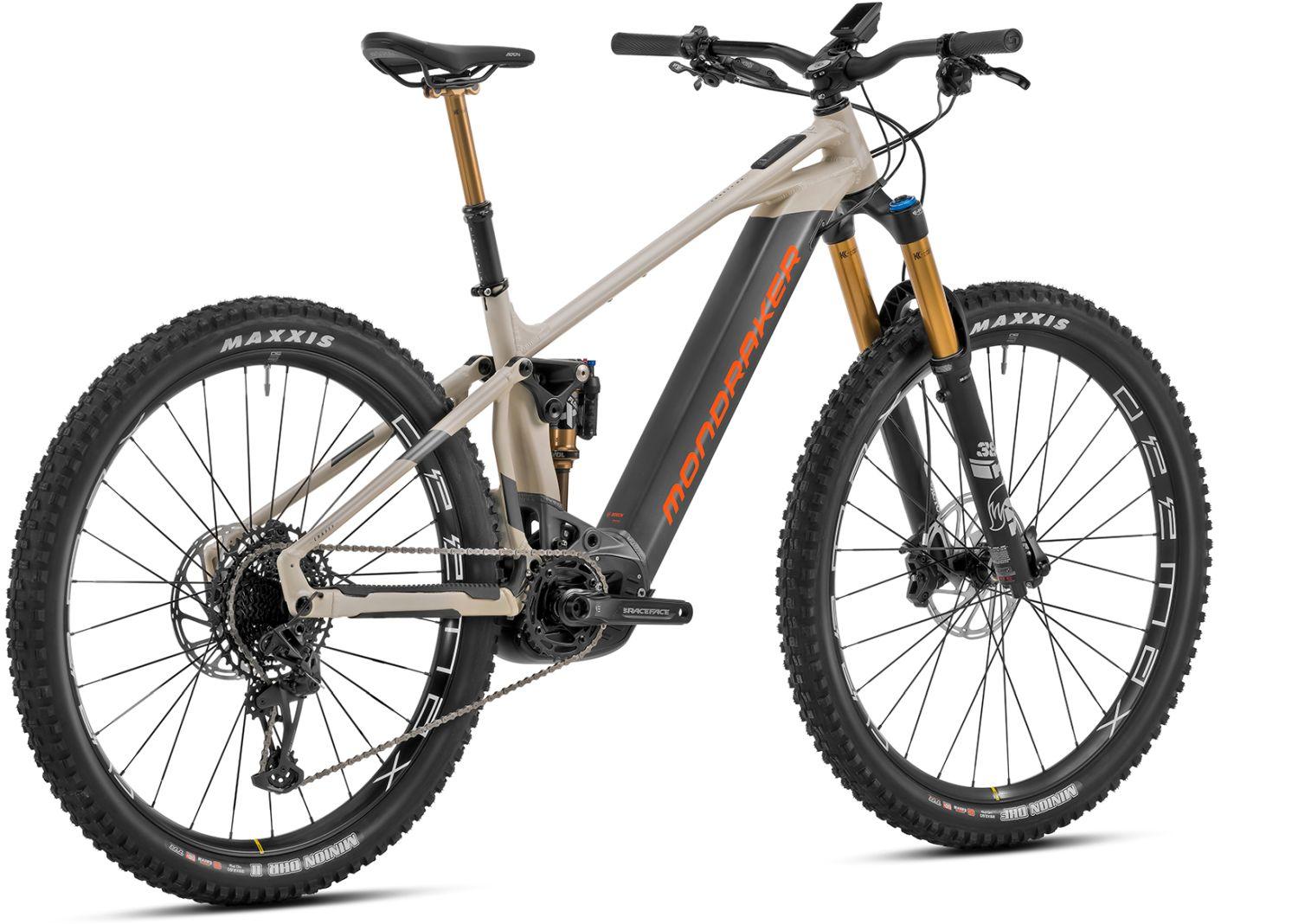

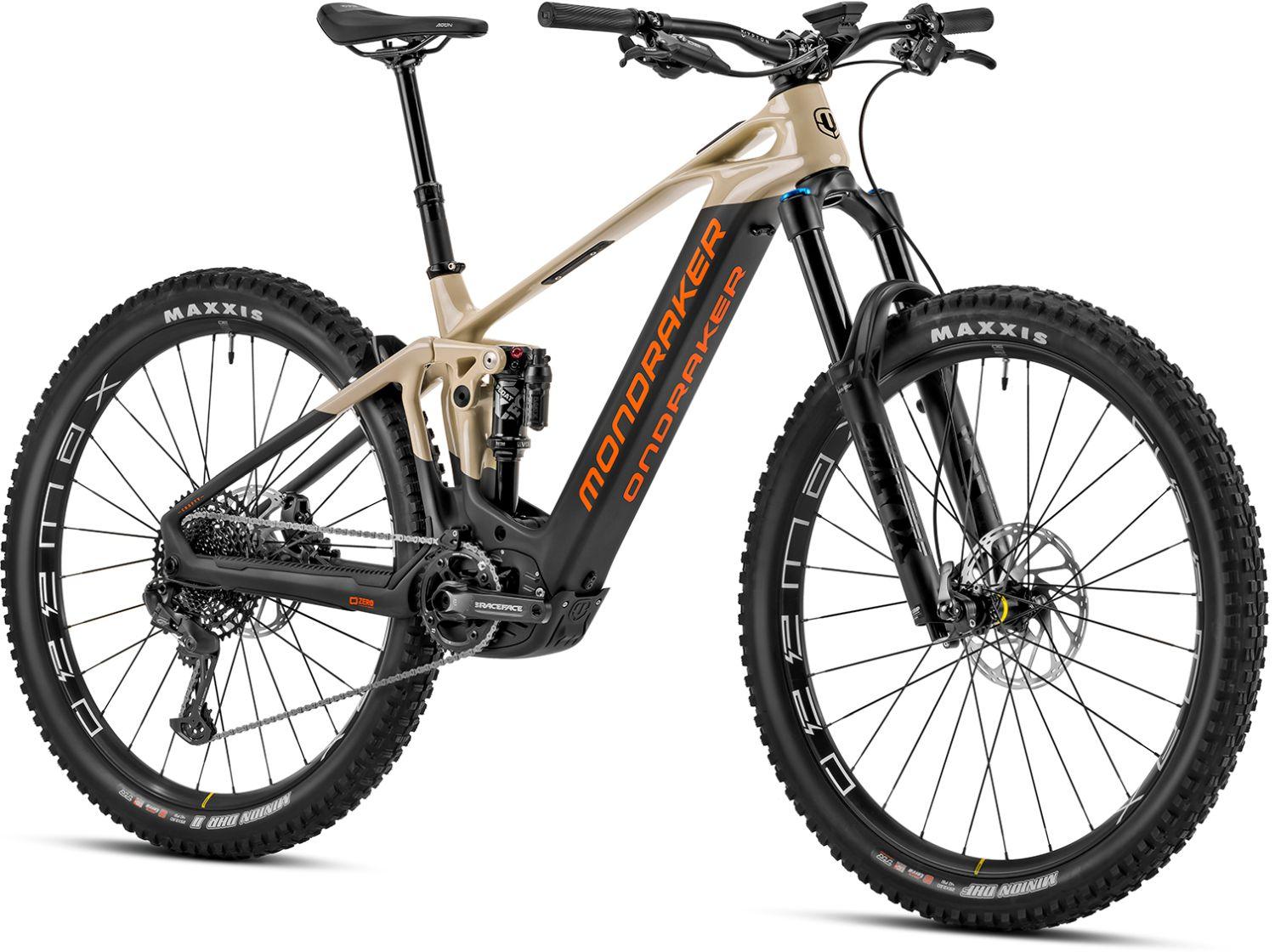

Mondraker Crafty Carbon R Matte Carbon / Gloss Desert Gray / Orange 2023 | Mountain bike
In 2023, the CRAFTY CARBON R will continue to be a benchmark in the e-bike segment, especially given its excellent price-performance ratio. Thanks to its balanced performance, all the advantages of our unique technologies can be fully exploited to fly efficiently and effortlessly over even the most demanding trails. The Crafty Carbon R has a Bosch Smart System drive including a wireless mini remote control, system controller and a 750Wh battery, while its 160mm front and 150mm rear travel provide outstanding suspension. This allows you to adjust your suspension perfectly and get the best out of every ride. With the new CRAFTY CARBON R for 2023 you can once again redefine your limits.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Crafty Stealth Air full carbon, Zero Suspension System optimized for e-bikes, HHG internal cables and cables, extra large 17mm axles, speed sensor integrated in the dropout, exclusive plastic motor cover
Steuersatz
Acros Custom for 1-1/2" head tube, angular contact ball bearings 40x52x7, internal cable routing
Gabel
Fox 38 29 Float GRIP Performance, 160mm, optimized for e-bikes, butted head tube, Boost 15x110mm axle, 44mm offset, 68mm OD fork clamp. Settings: 3-stage compression with micro adjust, low-speed rebound, air pressure
Dämpfer
Fox Float-X LV Performance, 205x65mm. Settings: compression via two-stage lever, low-speed rebound, air pressure. Upper mounting: Trunnion, lower bearings 25x10mm
Antrieb
Bosch Performance Line CX Cruise (25Km/h) Smart System
Akku
Bosch Powertube 750Wh
Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Felge
Mavic E-Deemax 29, 30mm inner width, welded, PFP, tubeless ready, 28 spokes
Naben
VR:Mavic Boost 15x110mm, IS 6-hole HR:Mavic Boost 12x148mm, ID360 freewheel system, IS 6-hole
Reifen
VR:Maxxis Minion DHF 29x2.6, Tubeless Ready, 3C MAXX TERRA, EXO+ puncture protection, 120 TPI, foldable HR:Maxxis Minion DHR II 29x2.6, Tubeless Ready, 3C MAXX TERRA, EXO+ Protection, 120 TPI, foldable
Laufradgröße
29"
Schaltwerk
Sram GX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
Schalthebel
Sram Trigger NX Eagle, 12-speed, X-Actuation 1:1, Single Click
Kette
Sram NX Eagle, 12-speed, Powerlock
Kurbel
Race Face Aeffect e-Bike, 165mm
Kassette
Sram XG-1230, 11-50T, 12-speed
Bremsen
Sram DB8, 4-piston brake caliper, one-piece 200mm 6-hole Centerline brake disc, organic brake pads with steel backplate
Lenker
Onoff Krypton 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Desert, lock-on single, 135mm
Vorbau
Onoff Krypton FG 30mm, CNC, 31.8mm handlebar diameter
Sattel
FIZIK Terra Aidon X5 145mm
Sattelstütze
Onoff Pija retractable, internal cable routing, diameter 31.6mm, size S: 405x95-125mm, size M 458x120-150mm, size L: 498x140-170mm, size XL: 498x140-170mm
Pedale
Nicht im Lieferumfang enthalten
