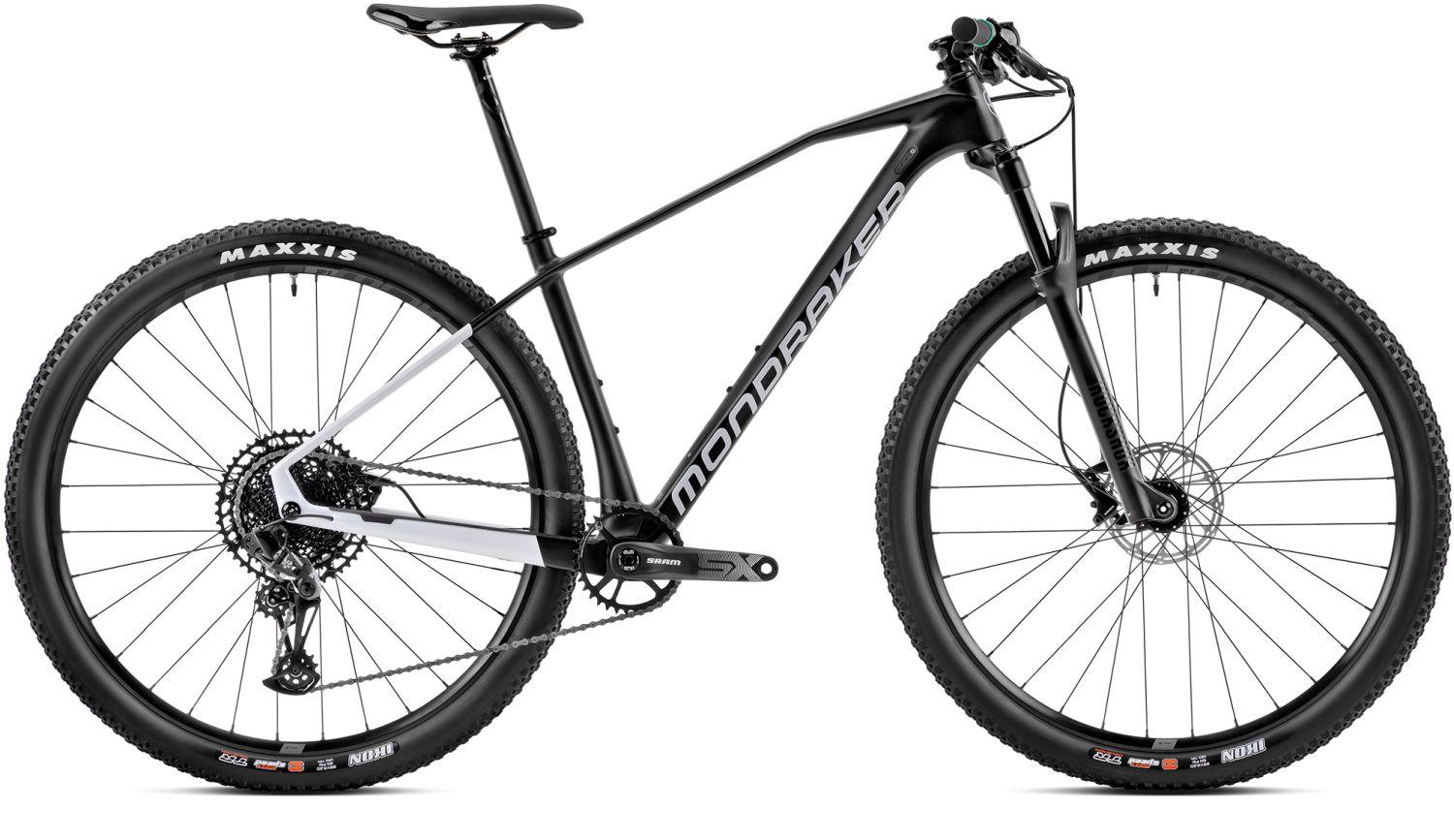

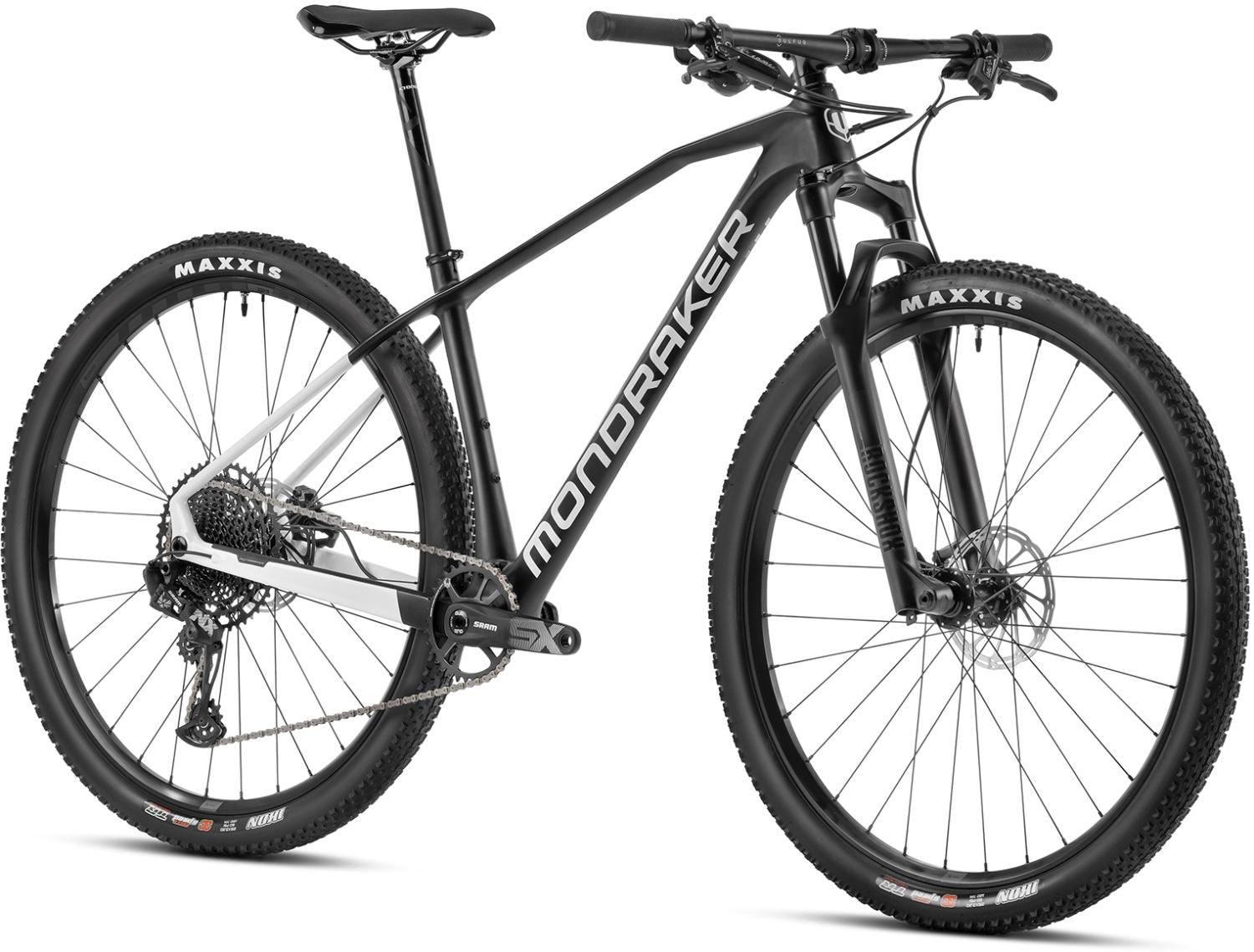

Mondraker Chrono Carbon 29 Matte Carbon / Gloss Dirty White 2023 | Mountain bike
Thanks to its STEALTH FULL CARBON frame, the CHRONO CARBON combines lightness, agility, traction and an extra dose of comfort. Without a doubt, the CHRONO CARBON benefits from our knowledge and experience from more than 20 years of building mountain bikes, as well as the many years in which we have proven ourselves as specialists in carbon production. This know-how has enabled us to optimize the FORWARD GEOMETRY of the CHRONO CARBON for XC. And we have equipped it with high-quality components so that it works perfectly in every situation and under all circumstances.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Chrono 29 Stealth full carbon, XC Forward Geometry, 73mm BSA bottom bracket, butted head tube, HHG internally routed lines and cables, Boost 12x148mm rear axle
Steuersatz
Onoff Titan butted for 1-1/8" to 1-1/2" head tube, sealed ACB bearings, top 41.8x30.5x8x45ºx45°, bottom 51.9x40x8x45°x45°
Gabel
RockShox Judy Gold RL 29, 100mm, Motion Control, Solo Air, butted head tube, Boost 15x110mm axle, 30mm aluminum stanchions, 51mm offset. Settings: 2-stage OneLoc compression (open/lock) with remote control, rebound, air pressure
Felge
MDK-XP1 29 TLR, 25mm inner width, tubeless ready, 32 spokes
Naben
VR:Formula DC711, Boost 15x110mm, sealed bearings, IS 6-hole HR:Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6-hole
Reifen
VR:Maxxis Ikon 29x2.20, 3C MAXX SPEED Compound, Tubeless Ready, 120 TPI, foldable HR:Maxxis Ikon 29x2.20, 3C MAXX SPEED Compound, Tubeless Ready, 120 TPI, foldable
Laufradgröße
29"
Schaltwerk
Sram NX Eagle, Roller Bearing Clutch Type 3, Cage Lock, long cage, 1x12 gear, X-Actuation 1:1
Schalthebel
Sram Trigger SX Eagle, 12-speed, X-Actuation 1:1
Kette
Sram SX Eagle, 12-speed, power lock
Kurbel
Sram SX Eagle, Boost, DUB axle, direct mount chainring, size S: 170mm, size M/L/XL: 175mm
Kassette
Sram XG-1230, 11-50T, 12-speed
Bremsen
Sram Level T, two-piece caliper, one-piece 160mm 6-hole Centerline brake disc, organic brake pads with steel backplate
Lenker
Onoff Sulfur 0.2, double butted 6061 aluminum, rise: 4.8mm, width: 760mm, 9º horizontal offset/backsweep, 0º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Twin, lock-on single, 135mm
Vorbau
MDK, 6061 T6 aluminum, 31.8mm handlebar diameter, angle: +/-5º, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm
Sattel
Mondraker XC Series, steel struts
Sattelstütze
Onoff Sulfur 0-R, 6061 T6 aluminum, 3D forged, diameter 27.2mm, length 400mm
Pedale
Nicht im Lieferumfang enthalten
