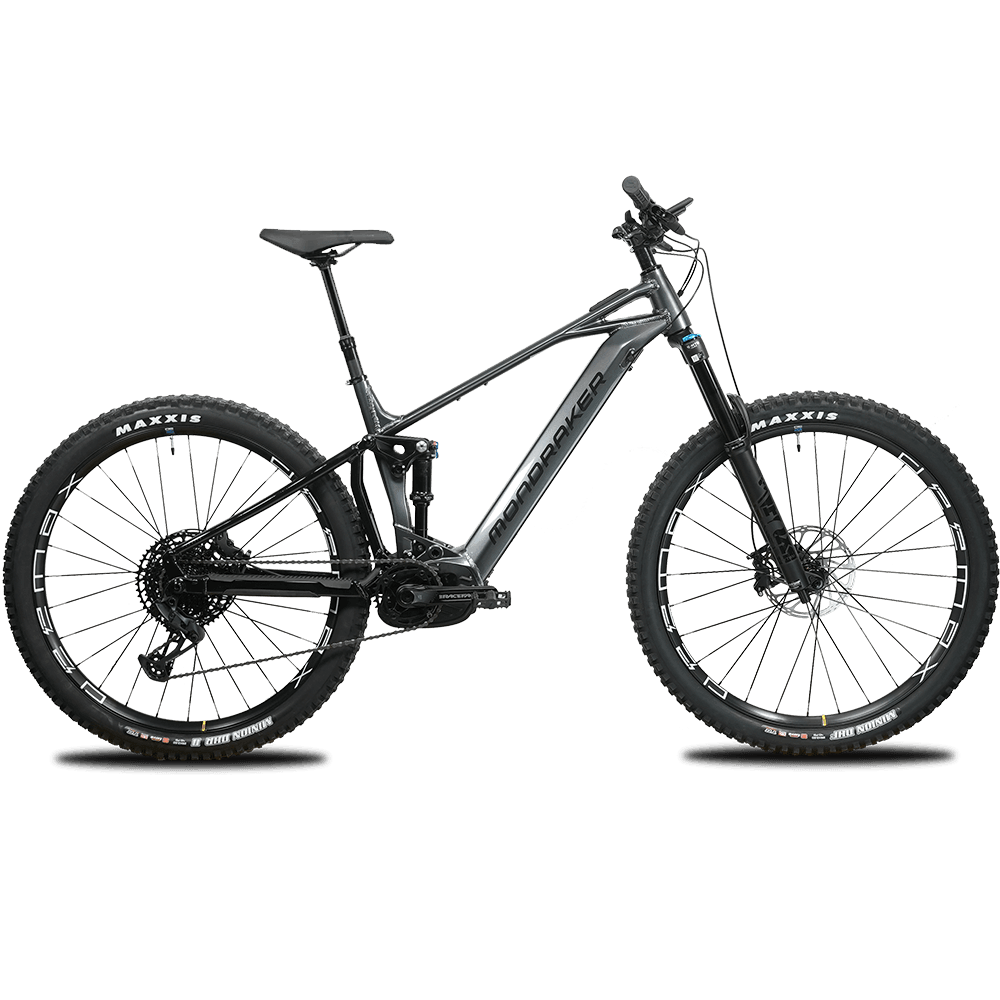

Mondraker Chaser R SE 2023 | E-MTB All Mountain
The Chaser R is our best value e-bike if you're looking for a competition-ready, efficient bike that offers leading Mondraker technologies. The frame has been optimized to be ready for anything. Trails and even more trails, ascents and descents, technical trails or root passages - the CHASER R won't slow you down if you give it spurs. ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and STEALTH ALLOY EVO make it a technological benchmark. If you add the optimization of the rear kinematics to this mix, nothing left to be desired. In addition to the Mini Remote remote control and the integrated system controller, the 2023 model also has the elegant Intuvia 100 display from Bosch. The CHASER R is a thoroughbred Mondraker at a very affordable price.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Chaser 6061 Stealth Evo aluminum, 150mm travel, forward geometry, integrated removable battery, Boost 12x148mm rear axle HHG internally routed lines and cables, sealed "MAX Capacity" bearings
Steuersatz
Onoff Saturn butted for 1-1/8" to 1-1/2" head tube, sealed ACB bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Gabel
Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, optimized for e-bikes, butted head tube, 15x110mm axle, offset 44mm. Settings: Sweep Adjust compression, low-speed rebound, air pressure

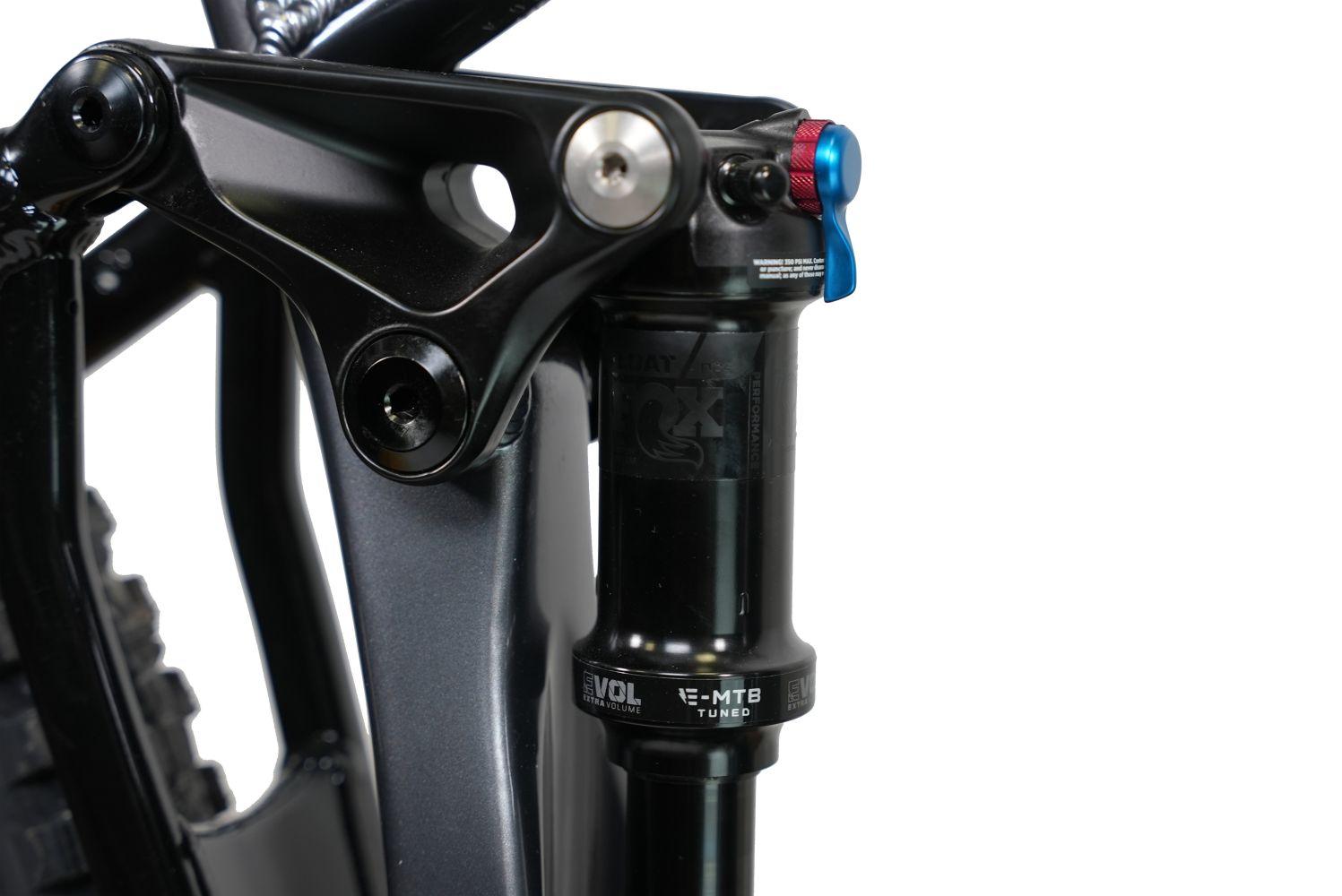

Dämpfer
Fox Float DPS Performance, 205x65mm. Settings: compression via three-stage lever, low-speed rebound, air pressure. Upper mounting: Trunnion, lower bearings 25x10mm
Antrieb
Bosch Performance Line CX Cruise (25Km/h) Smart System
Akku
Bosch Powertube 750Wh

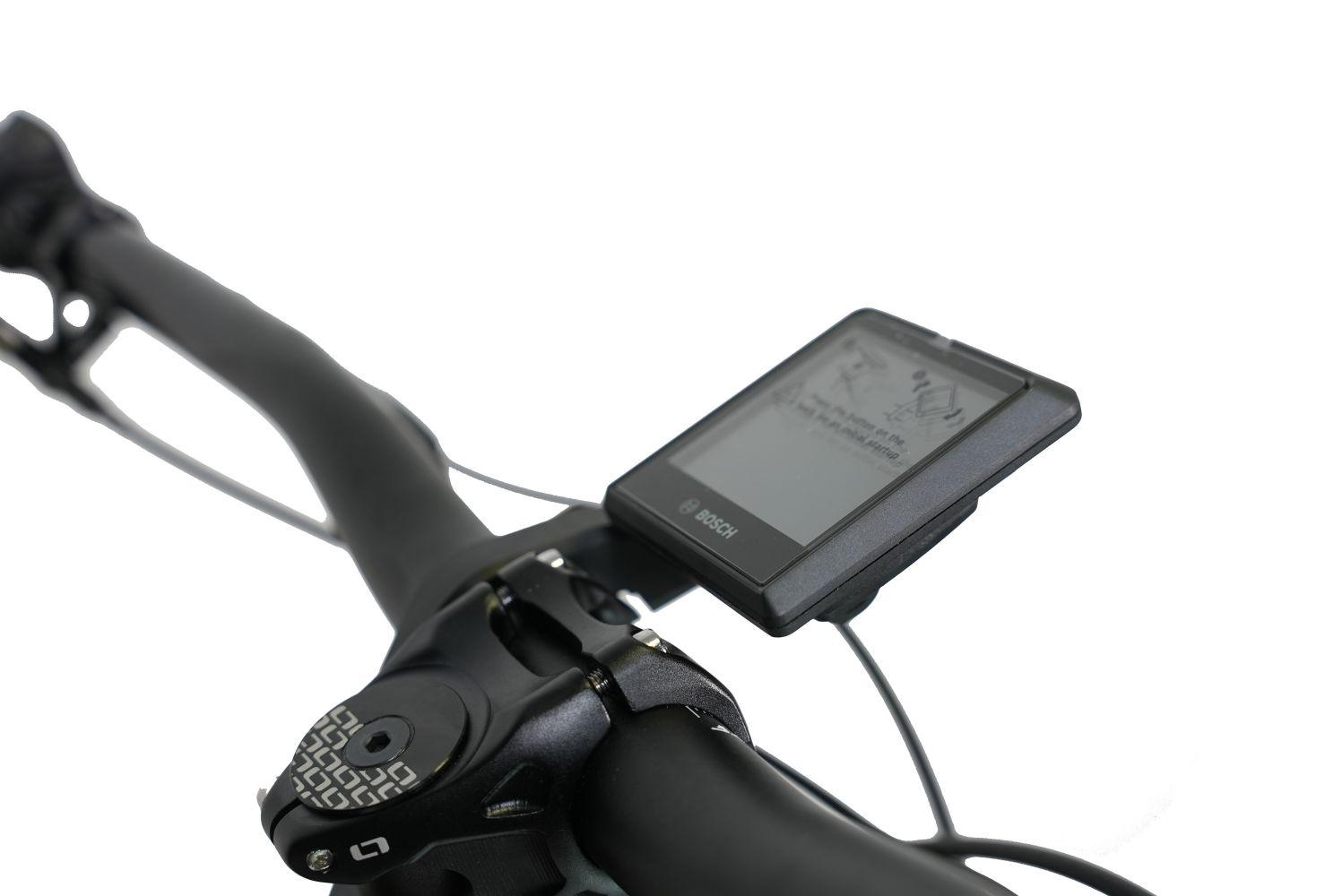

Display
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Felge
Mavic E-Deemax 29, 30mm inner width, welded, PFP, tubeless ready, 28 spokes
Naben
VR:Mavic Boost 15x110mm, IS 6-hole HR:Mavic Boost 12x148mm, ID360 freewheel system, IS 6-hole

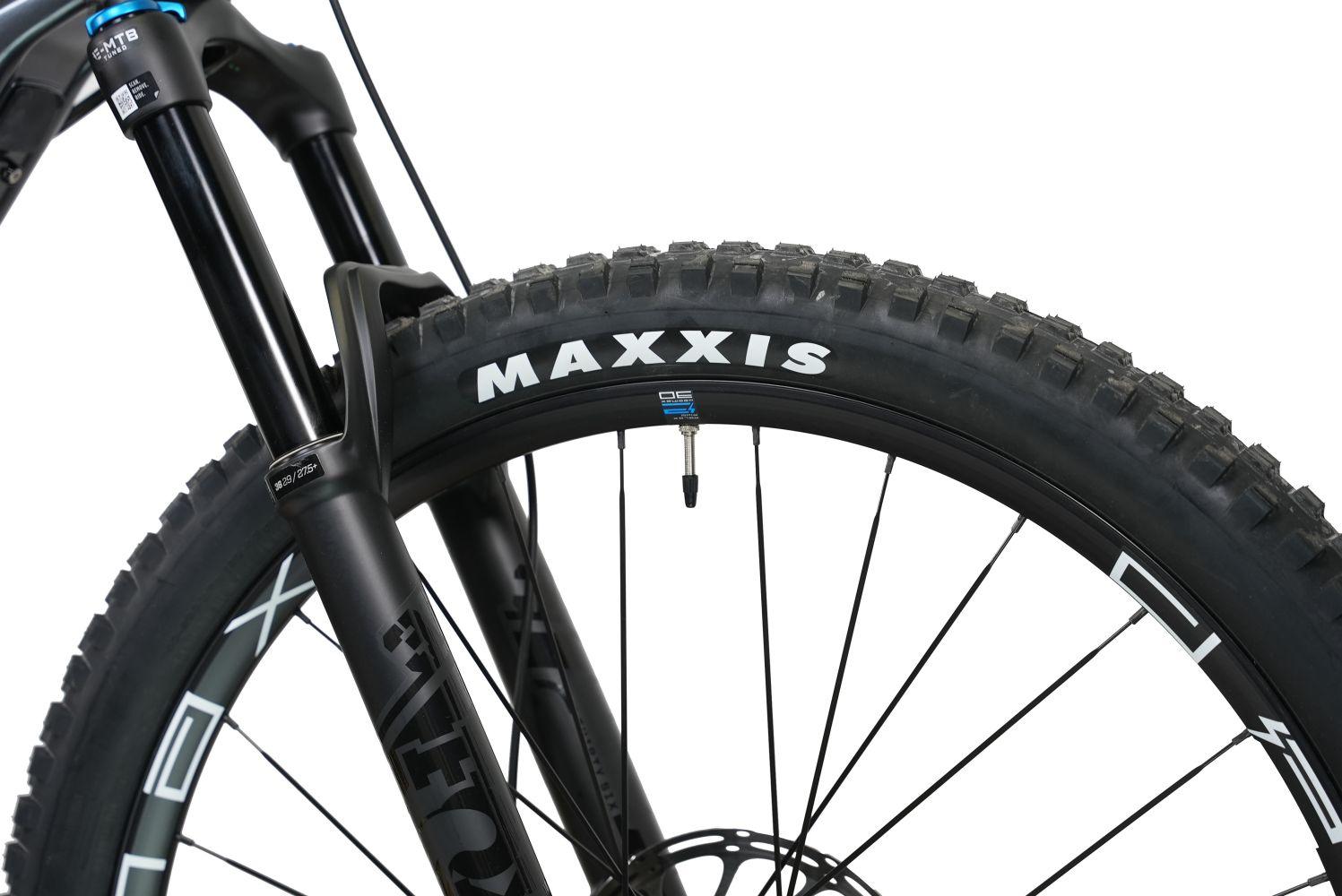

Reifen
VR:Maxxis Rekon 29x2.6, Tubeless Ready, Dual Compound, EXO puncture protection, 60 TPI, foldable HR:Maxxis Rekon 29x2.6, Tubeless Ready, Dual Compound, EXO Protection, 60 TPI, foldable
Laufradgröße
29"
Schaltwerk
Sram GX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
Schalthebel
Sram Trigger SX Eagle, 12-speed, X-Actuation 1:1, Single Click
Kette
Sram SX Eagle, 12-speed, power lock
Kurbel
Race Face Aeffect e-Bike, 165mm
Kassette
Sram PG-1210, 11-50T, 12-speed
Bremsen
Sram DB8, 4-piston brake caliper, one-piece 200mm 6-hole Centerline brake disc, organic brake pads with steel backplate
Lenker
Onoff Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Twin, lock-on single, 135mm
Vorbau
Onoff Sulfur FG 30mm 0º, forged 6061 aluminum, 31.8mm handlebar diameter
Sattel
MDK e-bike black
Sattelstütze
Onoff Pija retractable, internal cable routing, diameter 31.6mm, size S: 405x95-125mm, size M 458x120-150mm, size L: 498x140-170mm, size XL: 498x140-170mm
Pedale
Nicht im Lieferumfang enthalten
