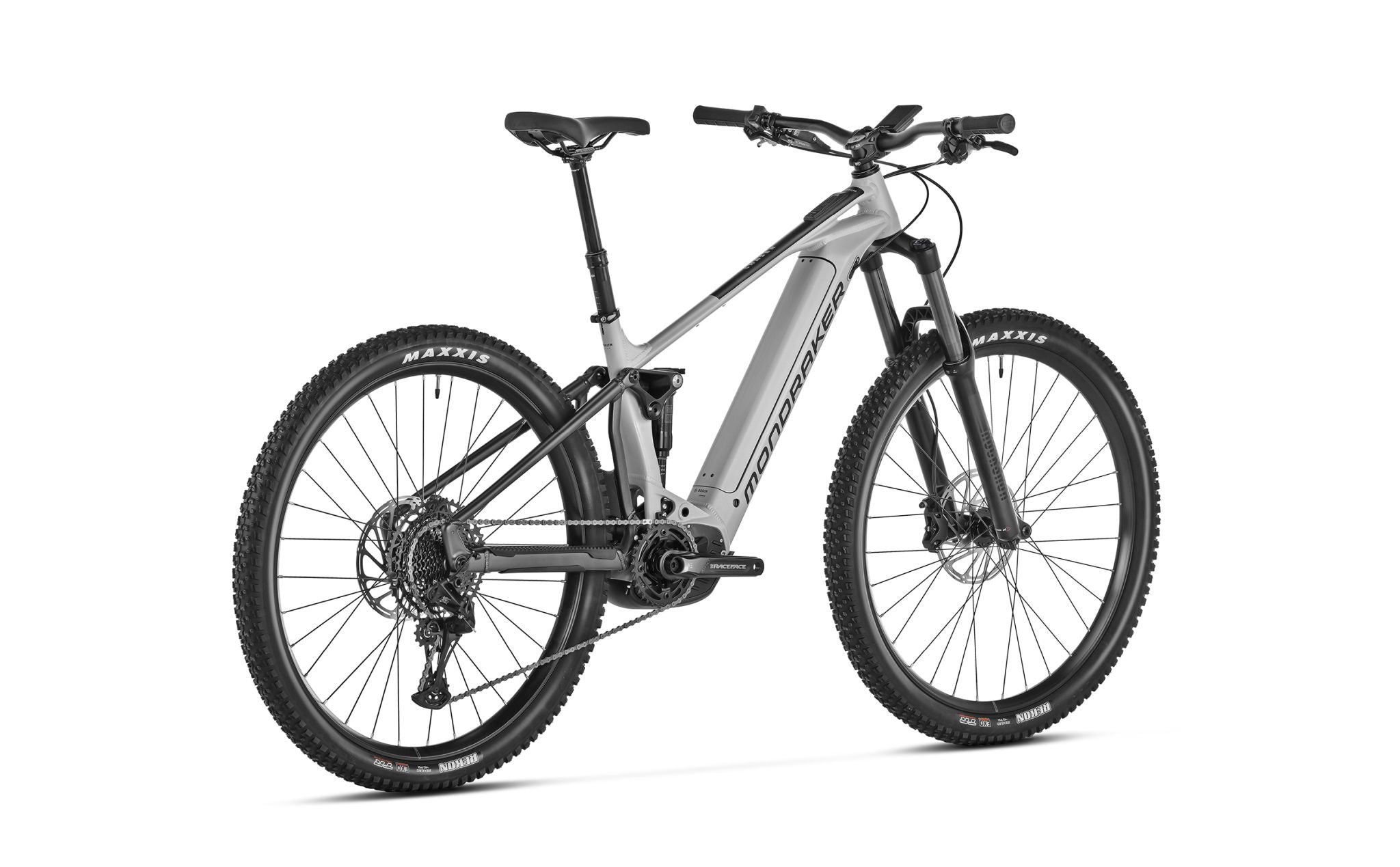

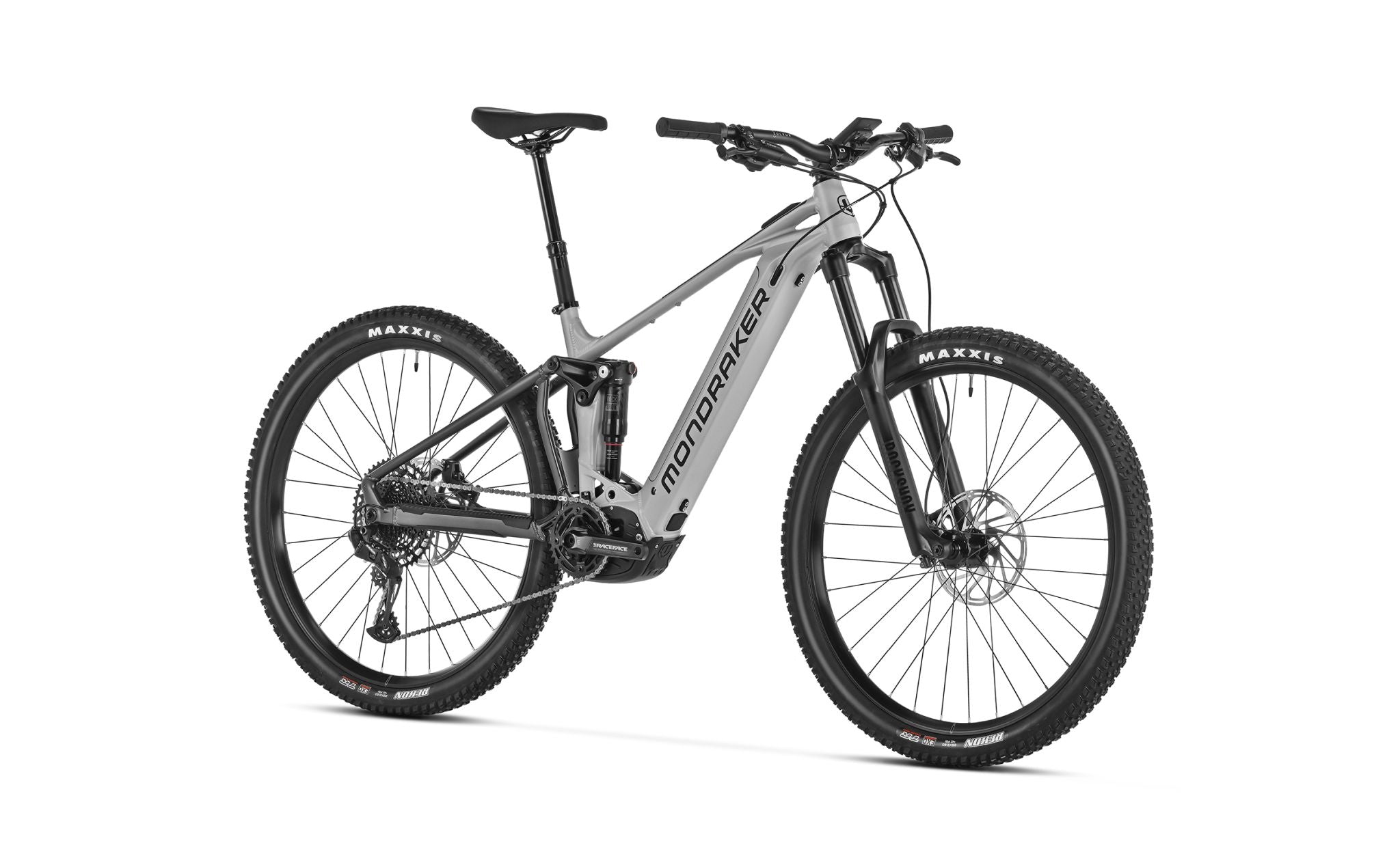

Mondraker CHASER Gray 2024
- Fast delivery: The shipping process begins immediately after payment is received to minimize waiting times.
- Reliable shipping partner : Collaboration with GO! Logistics for safe and fast delivery.
- Complete pre-assembly : Your bike will be delivered 95% pre-assembled. Only simple tools are required to put the finishing touches on the bike.
📦 Schnelle & Zuverlässige Lieferung: Sobald deine Bestellung bei uns eingeht, setzen wir alles in Bewegung, um deine Kleinteile und Zubehör so rasch wie möglich auf den Versandweg zu bringen.
⭐ Expertise, die überzeugt: Das Vertrauen und die Zufriedenheit von über 125.000+ Kunden bestärken uns in unserer Kompetenz in der Beratung und Auswahl von Fahrradausrüstung.
Maximum flexibility : Enjoy the freedom to test products for 30 days and return them without any problem if you don't like them or don't fit.
more information about the return policy
Sign up for the Liquid Life newsletter now and secure all the benefits!
- Voucher : As a thank you for registering, you will receive a €5 voucher, ideal for your next cycling adventure or accessory purchase.
- Current information : You will always stay informed about the latest products, exclusive offers and exciting cycling events.
- Part of the community : By registering, you become part of the Liquid Life community and will no longer miss any news.
🔧 Gratis Premium Aufbauservice: Dein Bike wird von unseren zertifizierten Mechanikern zu 98% vormontiert & eingestellt geliefert. Du musst lediglich die Pedale anschrauben und den Lenker ausrichten + befestigen.
300€ Cashback - So geht's
1. Aktions-Bike kaufen*
2. Mit dem Kaufbeleg unter www.haibike.dealer-cashback.com oder über QR-Code registrieren
3. Nach erfolgreicher Bestätigung über deinen Cashback* freuen
Size Chart
Height | Recommended Size |
---|
Find Your Perfect Size
The CHASER is the first choice for bikers looking for a gentle introduction to the world of e-mountain bikes. The Bosch Performance Line CX Smart System drive with the new wireless Mini Remote, the integrated system controller and the Intuvia 100 display gives you a very natural feeling of pedal support with four different support levels. The Chaser comes with high-quality parts such as a RockShox 35 Silver TK suspension fork and a RockShox Deluxe Select R shock, SRAM SX Eagle 12-speed drive, Formula wheels with 2.9" wide Maxxis Rekon tires, SRAM DB8 brakes and ONOFF components.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle
Steuersatz
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Gabel
RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Dämpfer
RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Antrieb
Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Akku
Bosch Powertube 625Wh
Display
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Felge
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Naben
VR: Mavic, Boost 15x110mm, IS 6 bolts | Rear: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Reifen
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Laufradgröße
29"
Schaltwerk
SRAM SX Eagle, Roller Bearing Clutch Typ 3, Cage Lock, langer Käfig, 1x12-fach, X-Actuation 1:1
Schalthebel
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Kette
Sram SX Eagle, 12s, Powerlock
Kurbel
Race Face Aeffect ebike, 165mm
Kassette
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Bremsen
VR: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads | Rear: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Lenker
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Griffe
Onoff Twin, 1lock-on, 135mm
Vorbau
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Sattel
MDK ebike black
Sattelstütze
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Pedale
Nicht im Lieferumfang enthalten
