E-Bike Highlights Motors

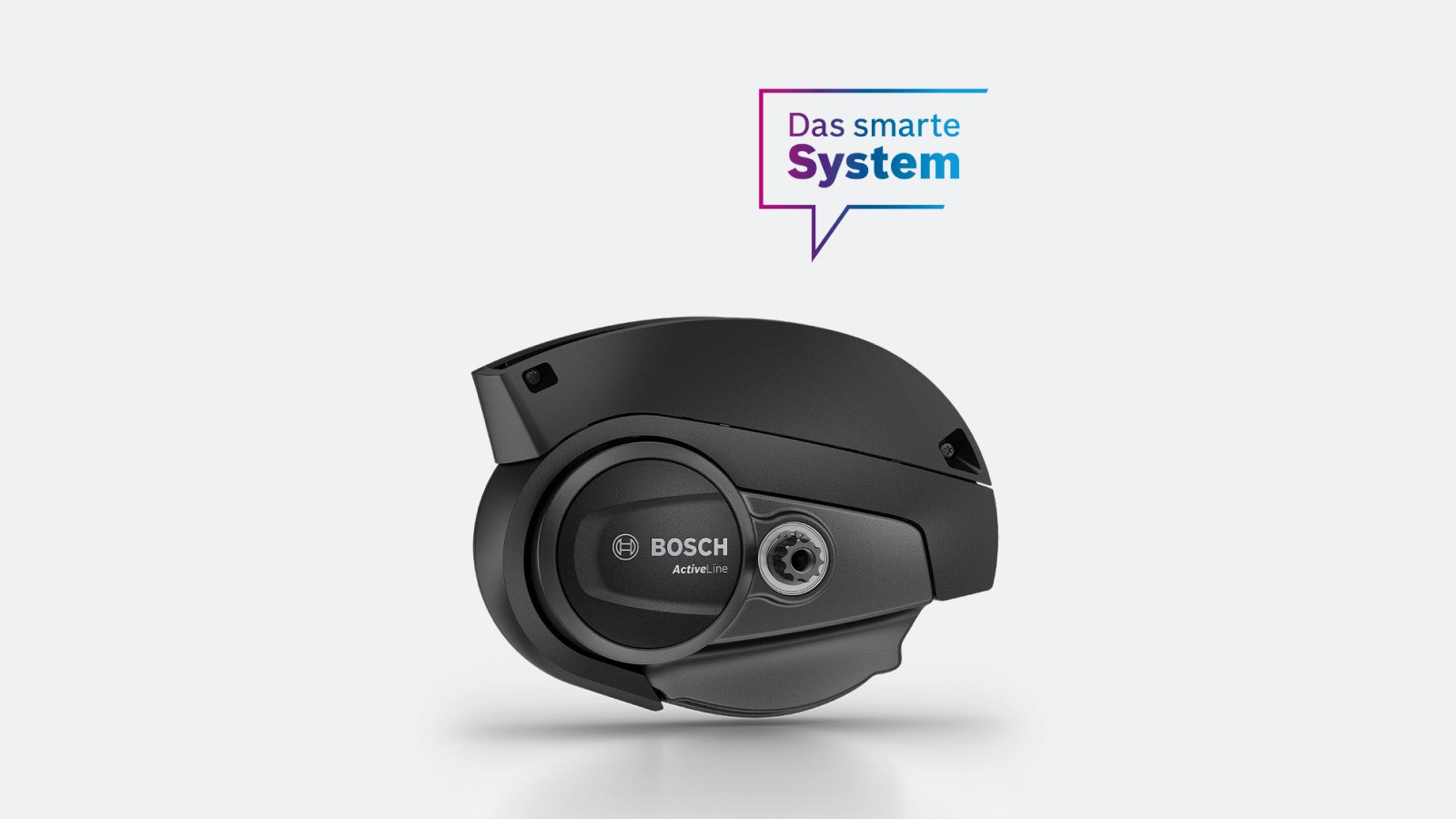

Bosch Active Line
The Bosch Active Line is well suited for urban e-bikes. It has a maximum torque of 40 Nm and weighs around 2.9 kg. Here you can choose between the modes Eco, Tour, Sport, Auto and Turbo and configure them to your individual needs using the eBike Flow app.
Gentle support : The Bosch Active Line offers harmonious and gentle support with a maximum torque of up to 40 Nm, ideal for relaxed rides and everyday use.
Quiet and low vibration : The motor runs very quietly and with low vibration, which ensures a pleasant driving experience.
Compact design : The drive is compact and allows for unobtrusive integration into the bike frame without compromising the aesthetic appearance of the bike.
Efficient energy transfer : Thanks to the intelligent motor control, energy is transferred efficiently, resulting in longer battery life and greater range.
Easy to use : The operation is intuitive and user-friendly, with clear and simple controls for effortless adjustment of support levels.
Compatibility : Supports various Bosch displays and controls, such as Purion, Intuvia, Kiox and Nyon, which offer different information and control functions.
Automatic gearshift : Optionally available with the eShift function, which enables automatic gearshifting and further increases driving comfort.
Low overall weight : The drive is light, which reduces the overall weight of the e-bike and makes it easier to handle.
Reliability : Bosch stands for high quality and reliability, making the Active Line drive a durable and robust choice for everyday rides.
Software Updates : Ability to update engine software for continuous improvements and new features.
Bosch Active Line Plus
This motor extends the radius of the Active Line for spontaneous trips, even outside the city. It has a maximum torque of 50 Nm and weighs around 3.2 kg. Here, too, you get the same driving modes and can also customize them to your needs.
Powerful torque : Offers a maximum torque of up to 50 Nm, providing more power and dynamics for a wide range of riding situations, including gentle climbs and longer tours.
Harmonious support : The motor control provides harmonious and gentle support, which gives a natural driving feel and increases driving pleasure.
Quiet and low vibration : The motor operates very quietly and with low vibration, which contributes to a comfortable and relaxed driving experience.
Compact and elegant design : The drive is compact and allows seamless integration into the bike frame without compromising the aesthetic appearance of the bike.
Efficient energy transfer : The intelligent motor control ensures efficient energy transfer and a longer battery life, which increases the range per charge.
Simple and intuitive operation : Supports various Bosch displays such as Purion, Intuvia, Kiox and Nyon, which offer user-friendly and intuitive control.
Automatic gear shifting : Optionally available with the eShift function, which enables automatic gear shifting and further improves driving comfort.
Low overall weight : The drive is light, which reduces the overall weight of the e-bike and makes it easier to handle.
Reliability and durability : Bosch stands for high quality and reliability, making the Active Line Plus drive a robust and durable choice for daily rides and longer tours.
Software Updates : Ability to update engine software for continuous improvements and new features.

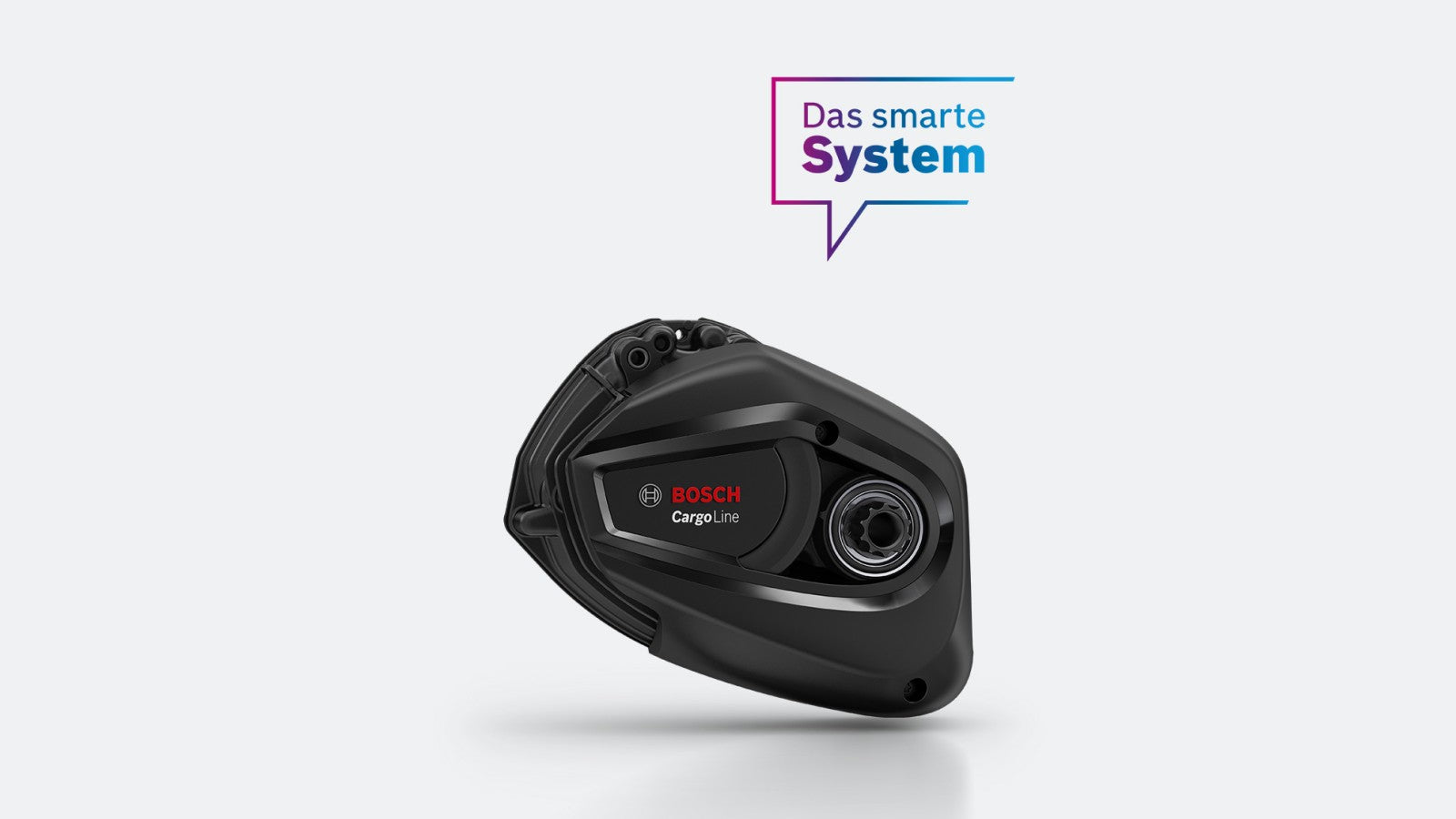

Bosch Cargo Line
This drive unit was specially developed for cargo bikes and drives them forward powerfully. The motor supports you with a whopping 85 Nm and weighs 2.9 kg. Here, too, the 5 driving modes can be set as desired and there is a push assist with rollback protection. In turbo mode, the Cargo Line offers you up to 400% support and is therefore perfect for driving a cargo bike.
High power and torque : The Bosch Cargo Line offers a maximum torque of up to 85 Nm, which provides powerful support and is ideal for transporting heavy loads.
Specialized for cargo bikes : Specially developed for use in cargo bikes, the motor provides reliable and consistent support at both low and high speeds.
Strong starting assistance : The engine offers strong starting assistance, which makes starting from a standstill with a heavy load easier and safer.
Robust and durable construction : The Bosch Cargo Line is robust and durable in design to withstand the high loads of daily transport operations.
Efficient energy transfer : Intelligent motor control ensures efficient energy transfer, increasing the range and extending battery life.
Large battery compatibility : Supports the powerful Bosch PowerPack and PowerTube batteries, which offer high capacity and long ranges, ideal for long journeys and heavy loads.
Versatile support : Offers different support modes (Eco, Tour, Sport, Cargo) that can be adjusted according to needs and load to ensure optimal performance and efficiency.
Easy handling : Despite its high performance, the motor is compact and lightweight, which improves the handling of the cargo bike and makes it easier to integrate into the frame.
Safety features : Improved safety through smooth and controlled power transmission, minimizing the risk of skidding or loss of control, especially when heavily loaded.
Software Updates : Ability to update engine software for continuous improvements and new features.

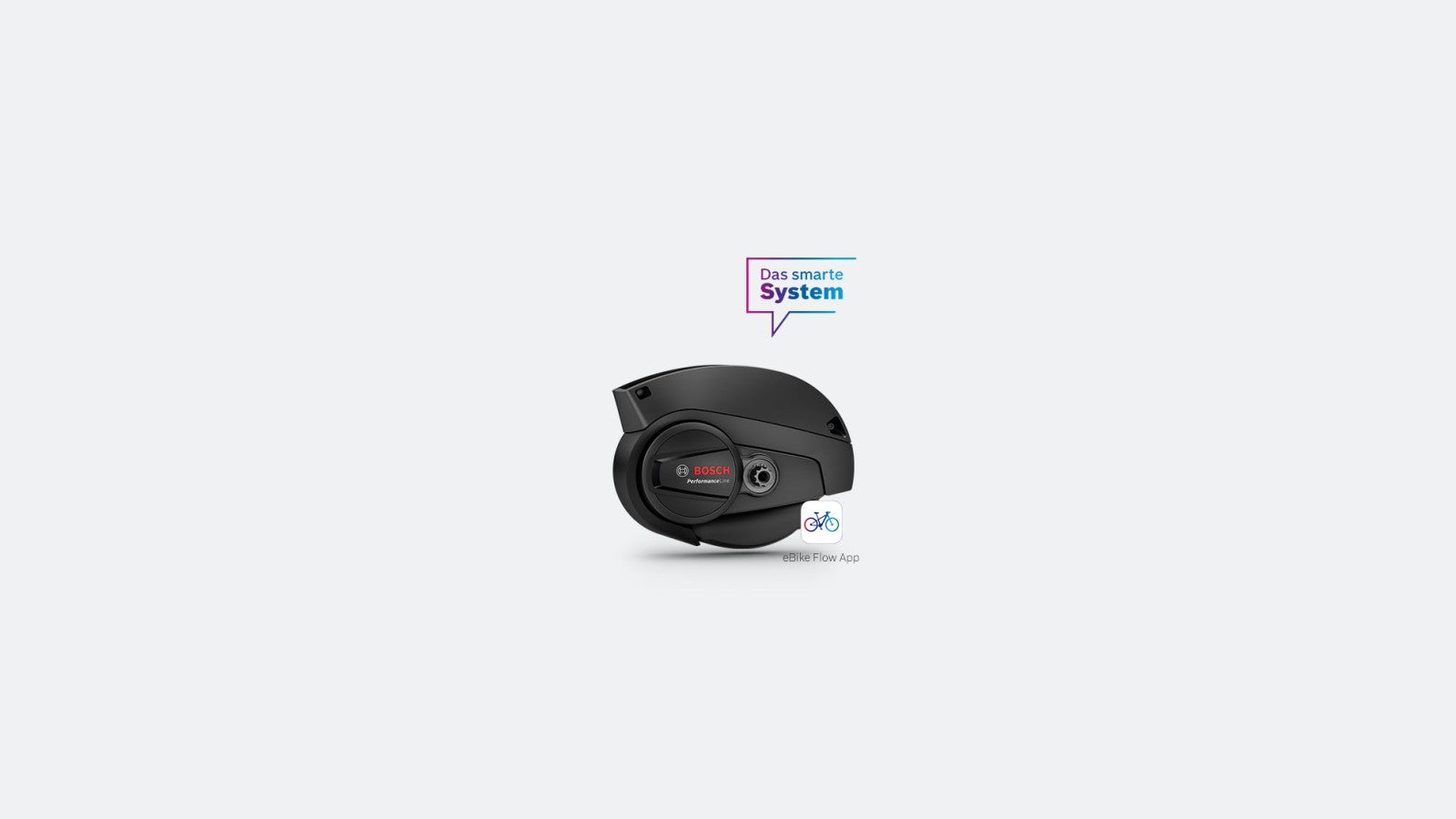

Bosch Performance Line
This barely audible drive unit is suitable for sporty trekking tours, but also relaxed excursions. This drive impresses with the Bosch "smart system" 85 Nm maximum torque, a maximum support of 340% and a push assist with rollback protection. With the Bosch eBike System 2 you get 65 Nm and up to 300% support. But no matter which system combination you use, the motor weighs 3.2 kg.
All highlights at a glance
Strong torque : The Bosch Performance Line offers a maximum torque of up to 65 Nm, which ensures powerful and dynamic support, ideal for sporty rides and demanding routes.
Dynamic support : The motor control adapts dynamically to the driving style and offers consistent, powerful support that provides a natural driving feel.
Four Assistance Modes : Offers four different assistance modes (Eco, Tour, Sport, Turbo) that can be adjusted according to needs and terrain to ensure optimal performance and efficiency.
Quiet operation : The motor operates quietly and with little vibration, which contributes to a pleasant and comfortable driving experience.
Efficient energy transfer : Intelligent motor control ensures efficient energy transfer and extends battery life, increasing the range per charge.
Compact design : The drive is compact and allows seamless integration into the bike frame without compromising the aesthetic appearance of the bike.
Easy to use : Supports various Bosch displays such as Purion, Intuvia, Kiox and Nyon, which provide user-friendly and intuitive control.
Robust and durable : The Bosch Performance Line is known for its robustness and durability, making it a reliable choice for sporty riders and everyday use.
Automatic gearshift : Optionally available with the eShift function, which enables automatic gearshifting and further increases driving comfort.
Software Updates : Ability to update engine software for continuous improvements and new features.
Bosch Performance Line CX
For a unique eMTB experience: Compact, light and smart - the Performance Line CX is the drive for demanding and connected e-bikers. This is because this drive unit offers powerful support of 85 Nm max. torque and weighs 2.9 kg. All 5 typical Bosch driving modes are of course freely adjustable here and there is also the Tour mode which saves additional power. It also has the Extended Boost function which gets you over roots, steps and stones even faster.
Powerful torque: Provides a maximum torque of up to 85 Nm for powerful support on steep climbs and challenging terrain.
Dynamic support: Intelligent motor control dynamically adapts the support to the driving style, with a natural driving feel.
Compact design: The motor is compact and lightweight, which allows for better integration into the frame design and a lower overall weight of the e-bike.
eMTB mode: Special mode for mountain bikers that automatically adjusts the support between Tour and Turbo mode to ensure optimal traction and control.
Extended Boost: Makes it easier to overcome obstacles by providing an additional boost when pedaling.
Efficient energy transfer: Improved sensors for more efficient power transmission and optimized driving behavior.
Large battery capacity: Compatible with PowerTube batteries, which enable a long range and long driving times.
Compatibility: Supports various Bosch displays and controls, including Kiox and Nyon, for personalized and intuitive control.
Robust and reliable: Designed for use in demanding conditions with high durability and reliability.
Software updates: Ability to update the software for continuous improvements and new features.

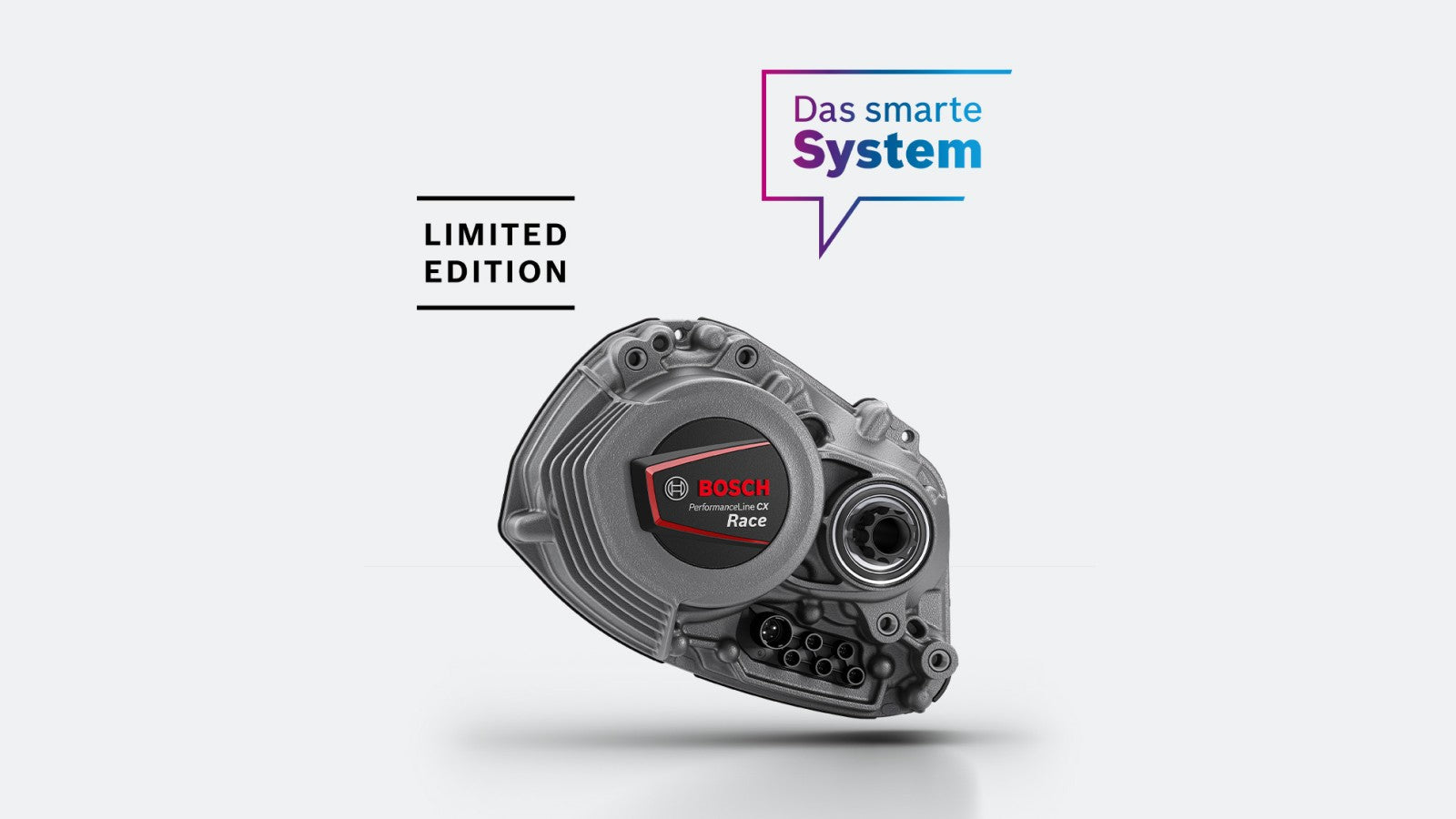

Bosch Performance Line CX Race
The driving mode, specially developed for eMTB races, impresses with energetic, direct support - with 400 percent of the pedal power. The lightweight drive unit reduces the weight of the entire eBike and ensures better handling and maximum trail performance. Extremely fast acceleration after tight corners and obstacles provides the decisive competitive advantage.
All highlights at a glance
Exclusive Race Mode
85 Newton meters
2.75 kilograms
System : Bosch Smart System
Shifting type : Derailleur
Support level (%):
RACE: 400
TURBO: 340
eMTB: 140 - 340
AUTO: Adaptive up to max. 400
SPORT: 240
TOUR+: 60 - 340
TOUR: 140
ECO+: 120
ECO: 60
Support up to maximum cadence (rpm): > 120
Starting behavior: super sporty

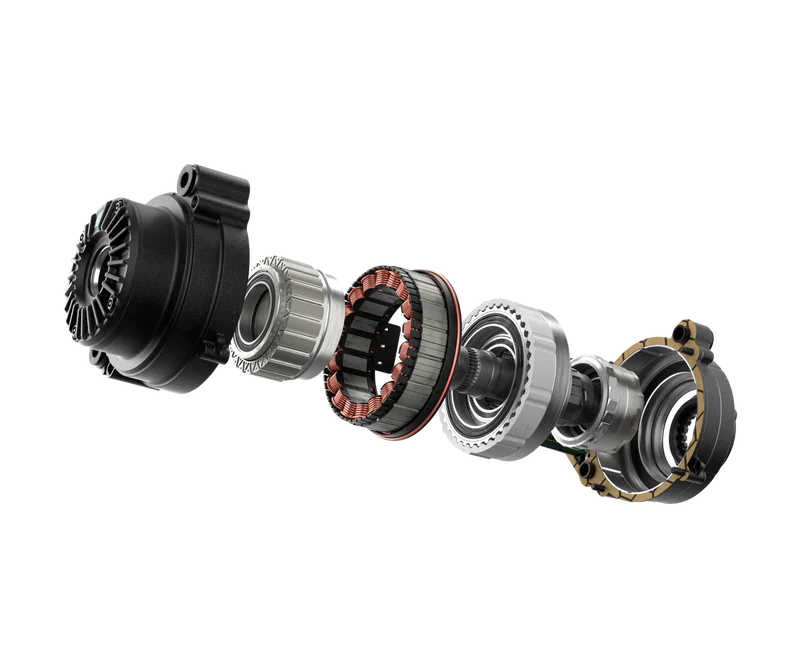

TQ HPR50
The TQ HPR50 has only one goal: to take your biking experience to the next level. The HPR50 has a maximum torque of 50 Nm and an output of 300 watts. It weighs 1850 grams and is 135 mm wide. The motor's design consists of the patented H armonic- P ing- R ing Transmission, which ensures an outstanding gear ratio. The motor is therefore extremely quiet and also ensures a very natural riding experience.
All highlights at a glance:
Compact and lightweight design : The TQ HPR50 drive is particularly light (only 3.9 kg) and compact, which allows seamless integration into the bicycle frame and minimizes the overall weight of the e-bike.
High performance : Offers a maximum torque of 50 Nm, ensuring powerful and consistent support for a variety of terrain.
Harmonic Pin Ring Technology : Uses an innovative Harmonic Pin Ring technology that ensures extremely efficient power transmission while being very compact.
Low noise : The drive is particularly quiet and ensures a pleasant and undisturbed driving experience.
Energy Efficiency : Very energy efficient, resulting in longer battery life and greater range per charge.
Intuitive controls : The drive offers intuitive and simple controls that allow the rider to effortlessly adjust the support levels while riding.
Versatile use : Ideal for a wide range of applications, from sporty rides to daily commutes.
Removable battery : The battery is easily removable, making it easy to charge and replace.
Integration with App : Compatible with the TQ app, which offers extensive functions such as driving data analysis, system diagnostics and firmware updates.
Durability and reliability : The TQ HPR50 is known for its robustness and durability, making it a reliable choice for demanding riders.

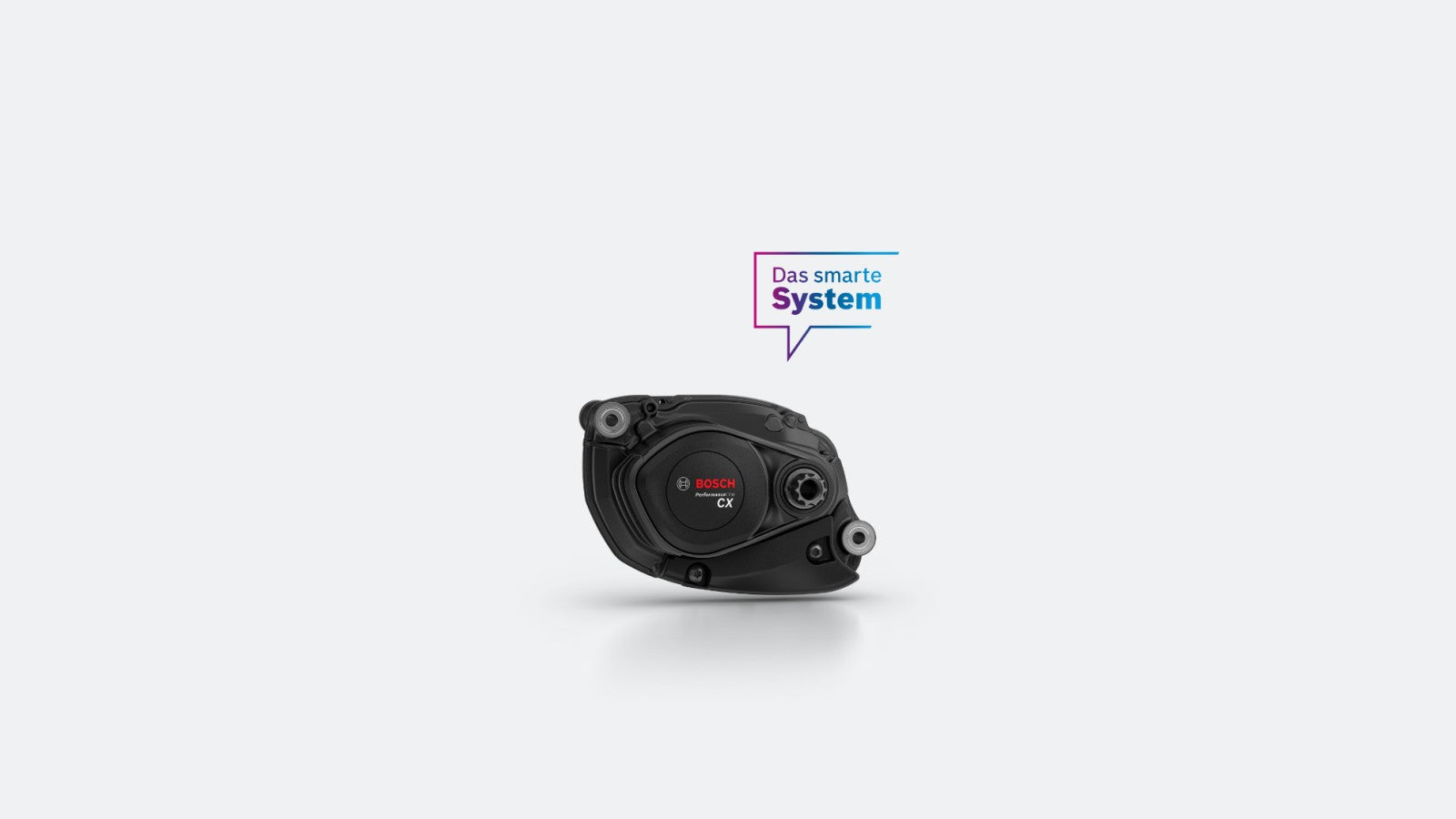

Bosch Performance Line CX Gen5
Bosch has further developed the popular Performance Line CX for 2025 and, in combination with the new Purion 400 display, has created an even better driving experience!
You can find all information about the new Bosch motor here .
All highlights at a glance
Improved driving noise Optimal balance between power development and noise.
Lower weight At approx. 2.8kg, around 100g lighter than the previous version.
New: Hill start assist Easier starting on inclines.
Hill Hold function prevents rolling backwards on hills.
eShift with TRP Shift manually or automatically - change with TRP at the touch of a button while driving.
eMTB and Tour+ mode Special driving modes for sporty use – dynamic or energy-saving depending on the driving situation.

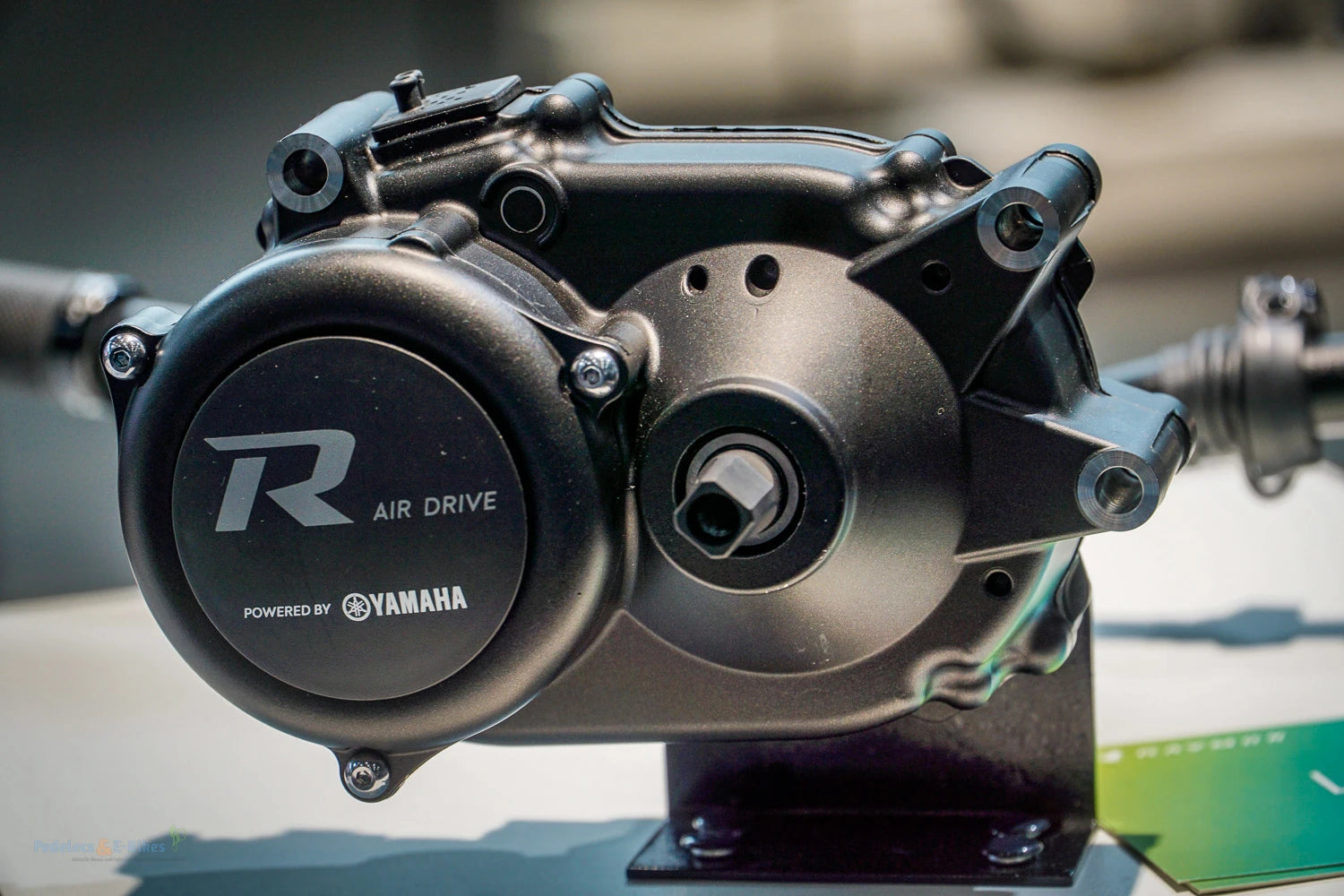

Yamaha Air Drive
In combination with the Air Drive motor, a compact and lightweight 410 Wh battery is often used, which can easily be charged outside the bike. This battery offers a good balance between weight and range, which is particularly beneficial for sporty riders.
In combination with the Air Drive motor, a compact and lightweight 410 Wh battery is often used, which can easily be charged outside the bike. This battery offers a good balance between weight and range, which is particularly beneficial for sporty riders.
The Air Drive motor weighs about 2.9 kilograms and has an output of 250 watts. It has four support modes: Eco+, Eco, Standard and High. There is also an automatic mode that uses six sensors to determine the optimal support level

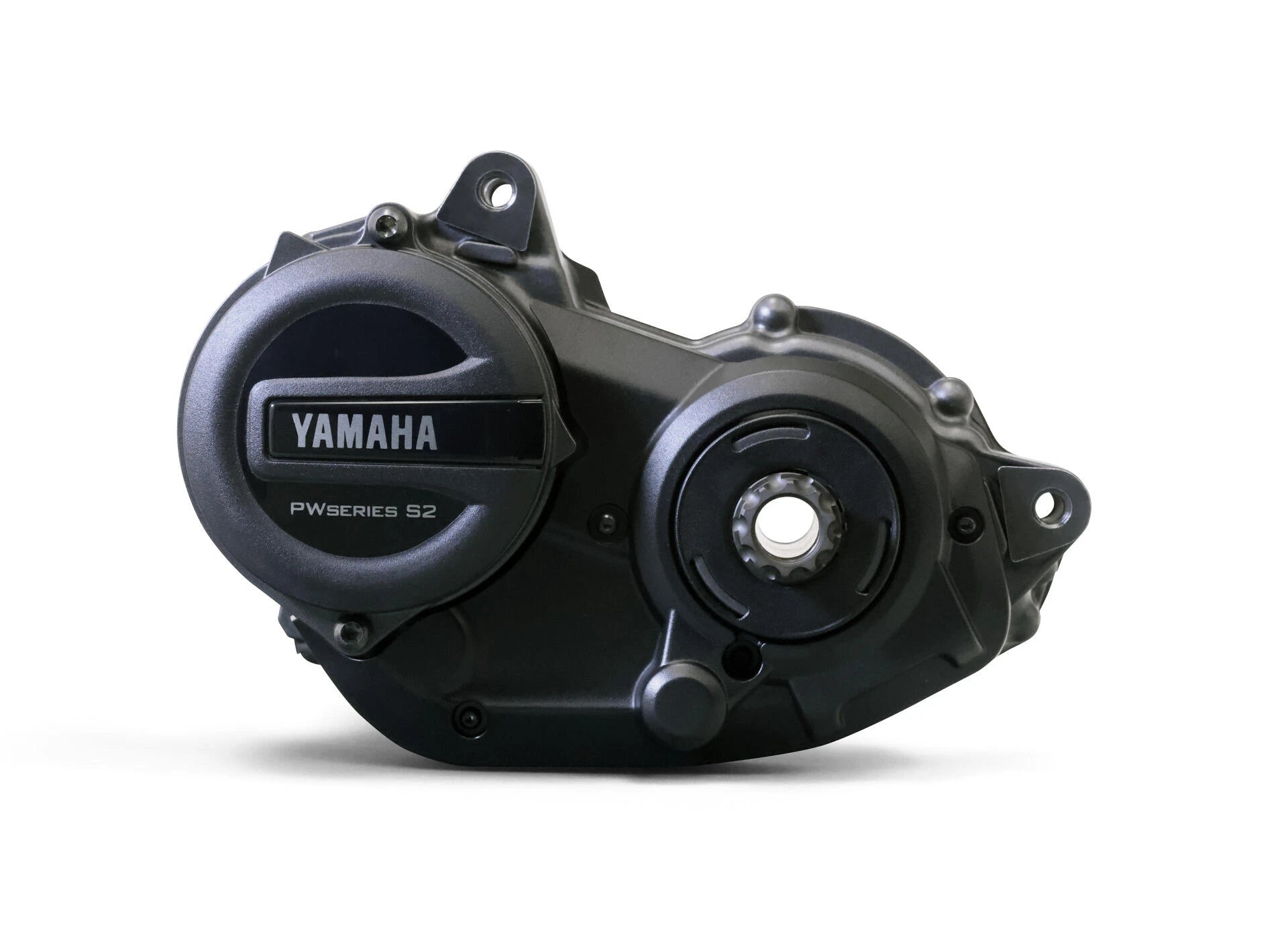

Yamaha PW-S2
Designed with a simple philosophy of "less is more," the new PWseries S2 drive unit is Yamaha's smallest, lightest and most powerful drive unit for the high-volume sport and trail segment. The PWseries S2 builds on the strengths of the successful PWseries ST series and benefits from electronic control technologies - exclusive to Yamaha - that ensure strong performance with smooth and natural acceleration on every ride. And as with every Yamaha drive unit, quality and reliability are guaranteed.
Technical specifications
Nominal voltage: 36 V
Rated power: 250 W
Max. supported speed: 25 km/h
Max. drive torque: 75 Nm
Weight: 2.85 kg
Assistance modes: HIGH, STD, ECO, +ECO and OFF
Automatic support mode available

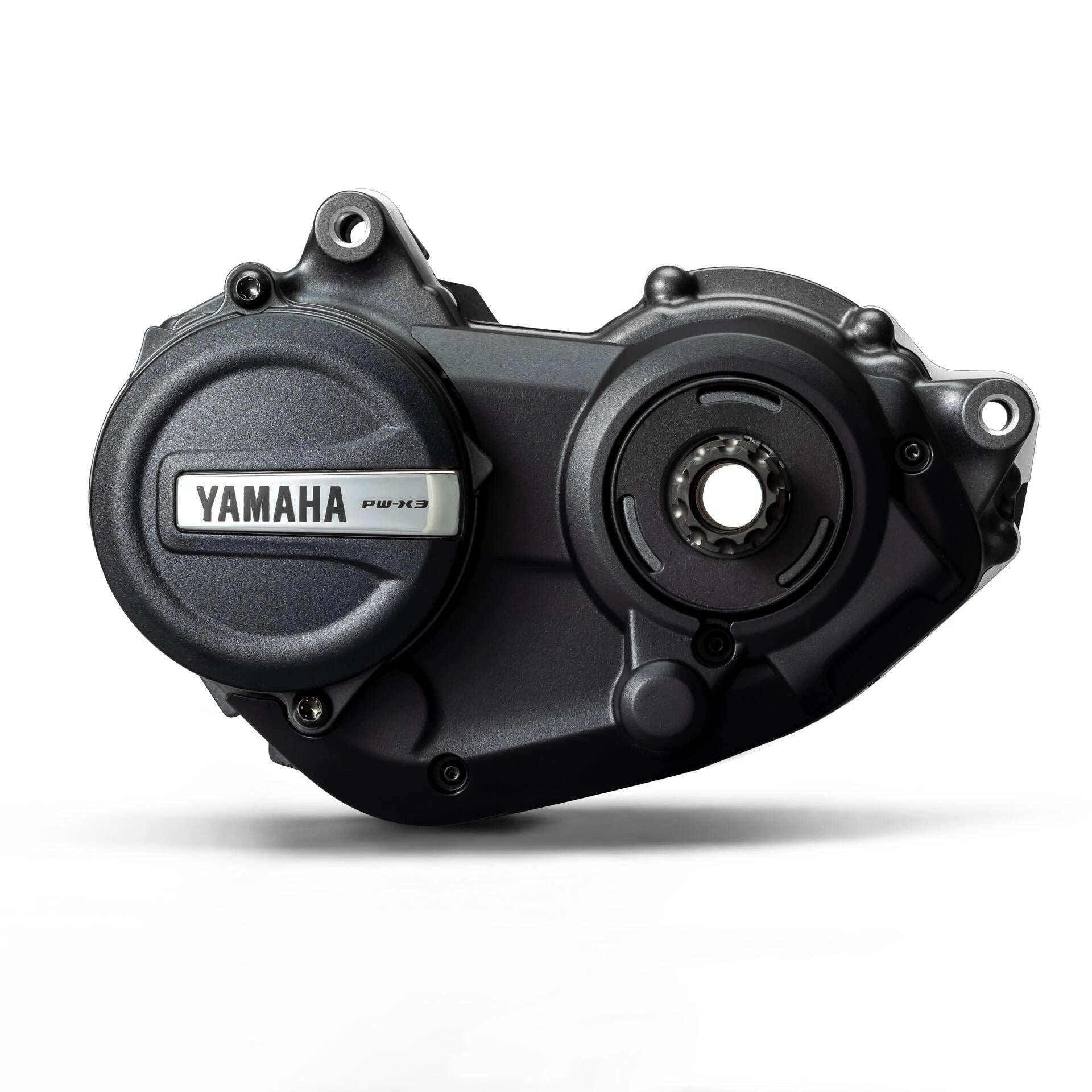

Yamaha PW-X3
Lighter, smaller, stronger torque - this next-generation drive enables a completely new type of off-road riding with its direct support. The completely newly developed PW-X3 delivers thrilling performance and therefore pure riding pleasure. With its low weight, compact housing and higher torque, the PW-X3 opens up many exciting new possibilities for e-mountain bike designers.
The PW-X3's increased torque of 85 Nm allows e-MTB riders to tackle steep inclines and sandy or muddy terrain with ease. Just as importantly, the PW-X3 delivers instant torque with the slightest pedal input, and the strong and seamless power flow reinforces the feeling that the bike is an extension of the rider's body.
features
The new PW-X3 drive unit is approximately 20% smaller than the PW-X2 drive unit and, with its ultra-compact dimensions, offers eBike manufacturers more freedom in developing bicycles with ideal frame geometry and suspension kinematics as well as greater
Nominal voltage: 36 V
Rated power: 250 W
Max. supported speed: 25 km/h
Max. drive torque: 85 Nm
Weight: 2.75 kg
Assistance modes: EXPW, HIGH, STD, ECO and +ECO

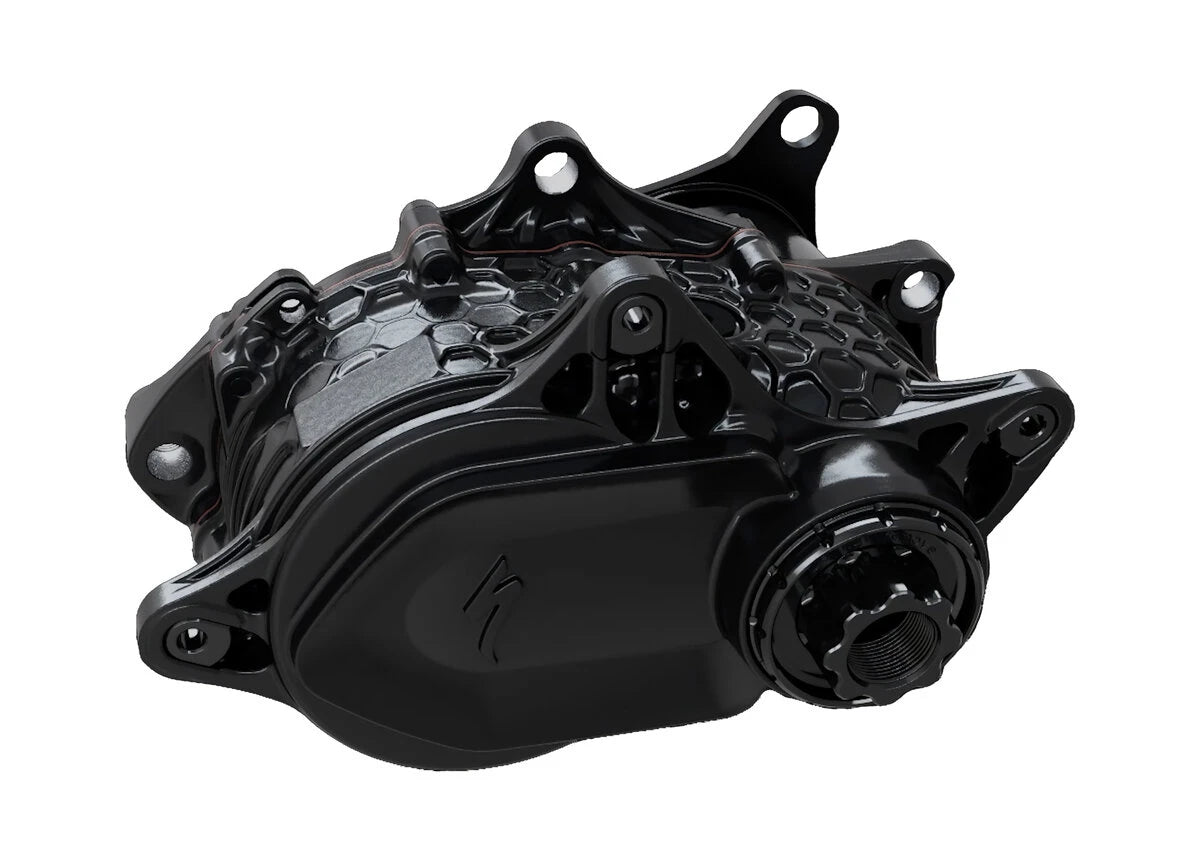

Specialized 1.2 SL
The Specialized SL 1.2 is a lightweight e-bike motor that provides gentle support. As a further development of the previous model, the Specialized SL 1.1, it has been thoroughly redesigned and now offers a torque of 50 Nm and an output of 320 watts. To minimize noise, Specialized has significantly optimized the housing of the motor, resulting in a quieter ride. In addition, the motor remains IP67 certified, which protects it against dust and water.
Further advantages
- Very low internal pedal resistance for a natural riding feel
- more comfort when driving by reducing the Q-factor
- IP67 certification - protection against dust and water
Technical specifications
- Max. Support 100%
- Max. torque 50 Nm
- Max. power 320 W
- Weight 1.9 kg
- IP67-certified
- Q-factor 169 mm

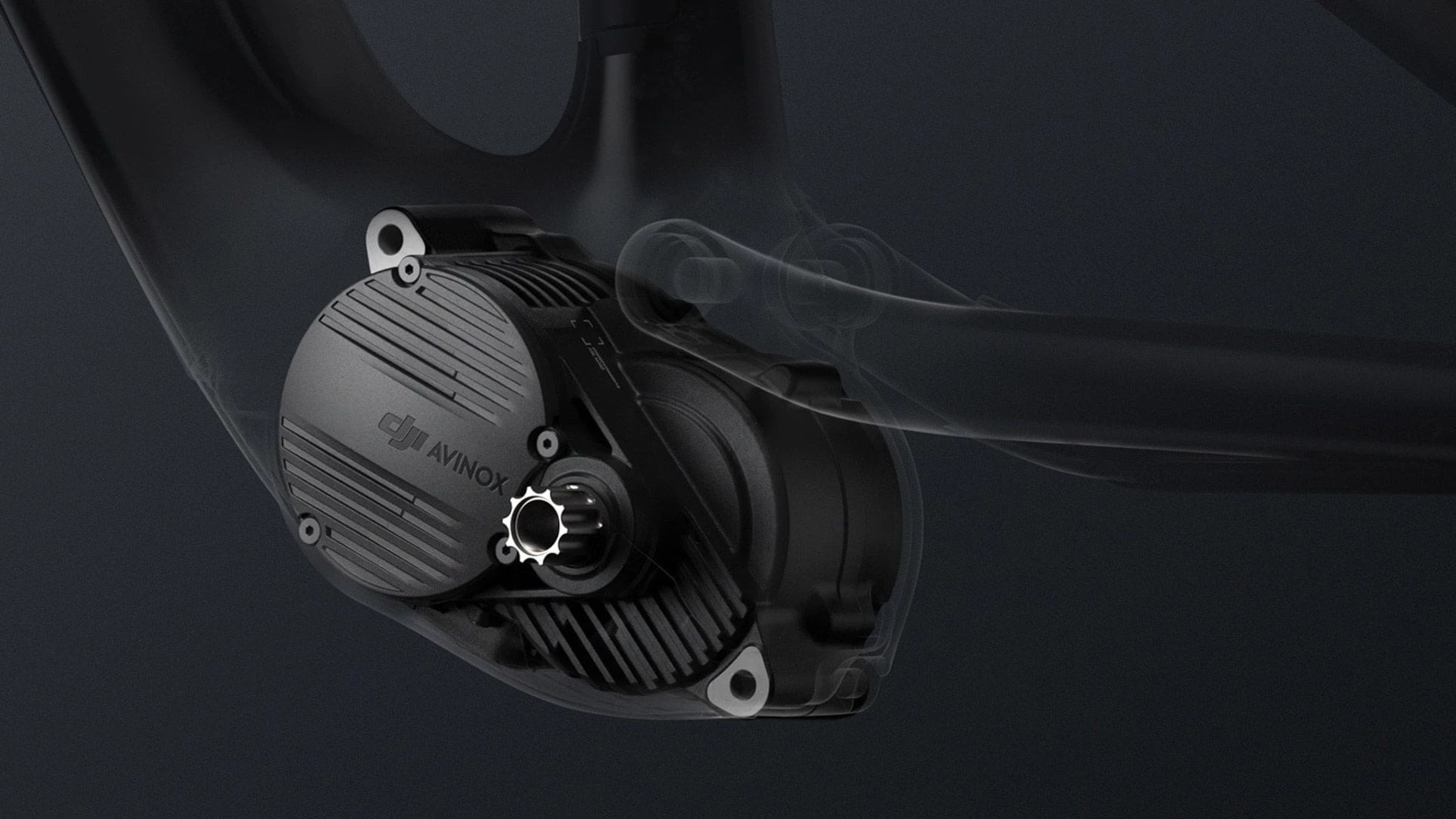

DJI Avinox
The DJI Avinox is a powerful and compact e-bike drive system from renowned drone manufacturer DJI. With this venture, DJI is expanding its technological expertise into the e-bike market. The Avinox drive boasts impressive technical specifications:
Technical specifications
- Maximum torque: 120 Nm
- Peak power: 1,000 watts
- Weight of the drive unit: 2.52 kg
These specifications enable powerful assistance while maintaining a low weight. The drive unit can be combined with a 600 Wh or 800 Wh battery, with the 800 Wh battery offering a range of up to 157 km. Thanks to a 12A fast charger, the battery can be charged to 75% in approximately 1.5 hours.
The system includes a 2-inch OLED touchscreen display seamlessly integrated into the frame, providing real-time ride data and various connectivity options such as ANT+ and Bluetooth 5.1. Users can customize parameters such as torque and assistance modes via the accompanying app.
