E-Bike Highlights Batteries

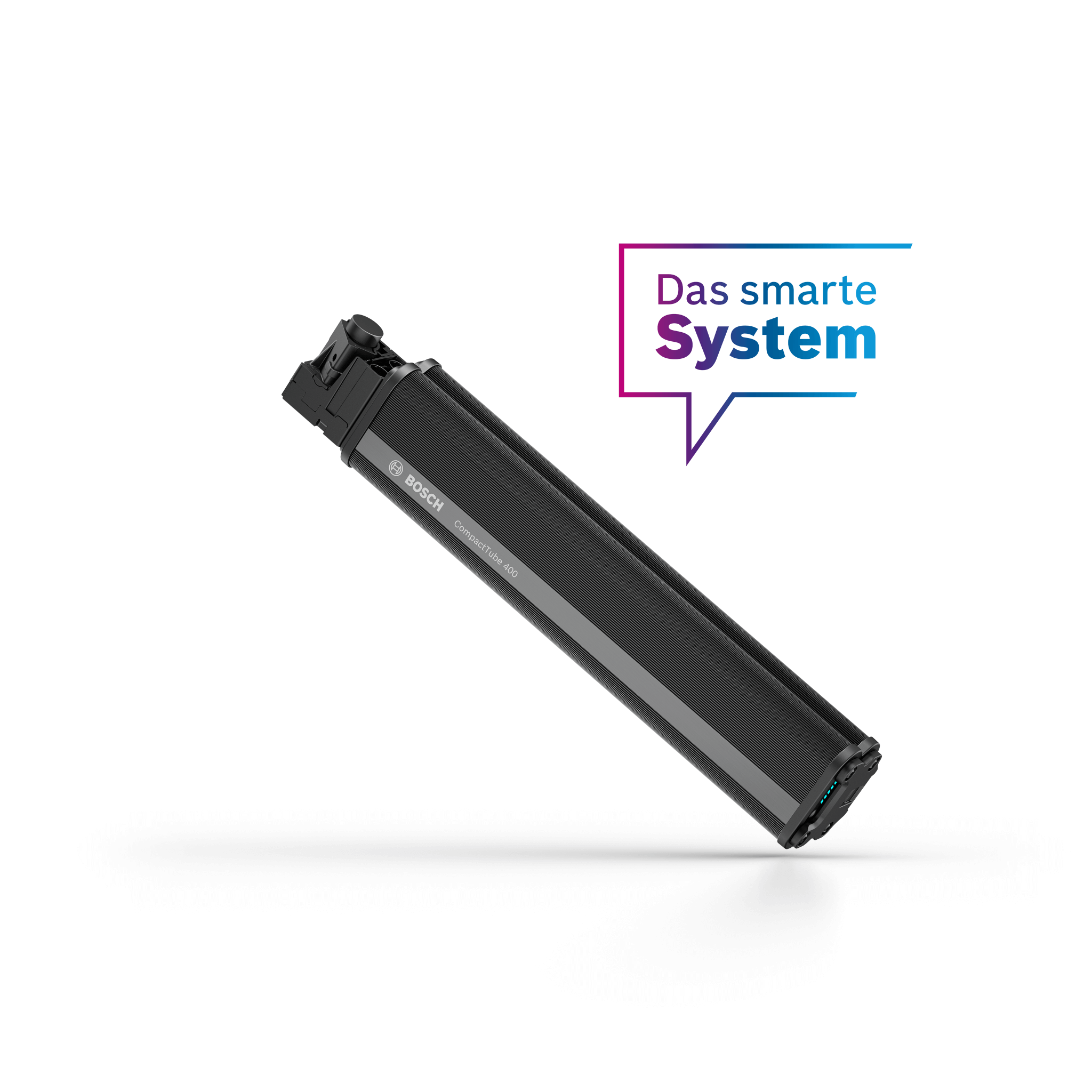

Bosch CompactTube 400
The new CompactTube 400 battery is a perfect match for the new Bosch Performance SX.
Small, integrated, compact and with a capacity of 400 watt hours and a weight of just around 2 kilograms - the CompactTube 400 is a true energy champion. Thanks to innovative battery cell technology, it offers the highest energy density of all Bosch eBike batteries. This makes the extra-light battery the perfect choice for sporty light e-MTBs, minimalist e-gravel bikes or design-oriented e-urban bikes. In short, the CompactTube 400 is ideal for all those who love the sleek look of conventional bikes but don't want to do without electric support.
The CompactTube 400 allows you to enjoy hours of riding pleasure with ease. Despite its compact size, it offers an impressive energy reserve to extend your tours and tackle challenging terrain. With its integrated design, the battery fits seamlessly into the frame and ensures an aesthetically pleasing look.
Add a touch of lightness and elegance to your bike with the CompactTube 400. Experience the perfect combination of style and performance and enjoy the freedom that electric assistance offers you. Whether you're speeding up the mountain, exploring the city or riding on dirt roads, the CompactTube 400 will delight you with its impressive performance and sleek design.

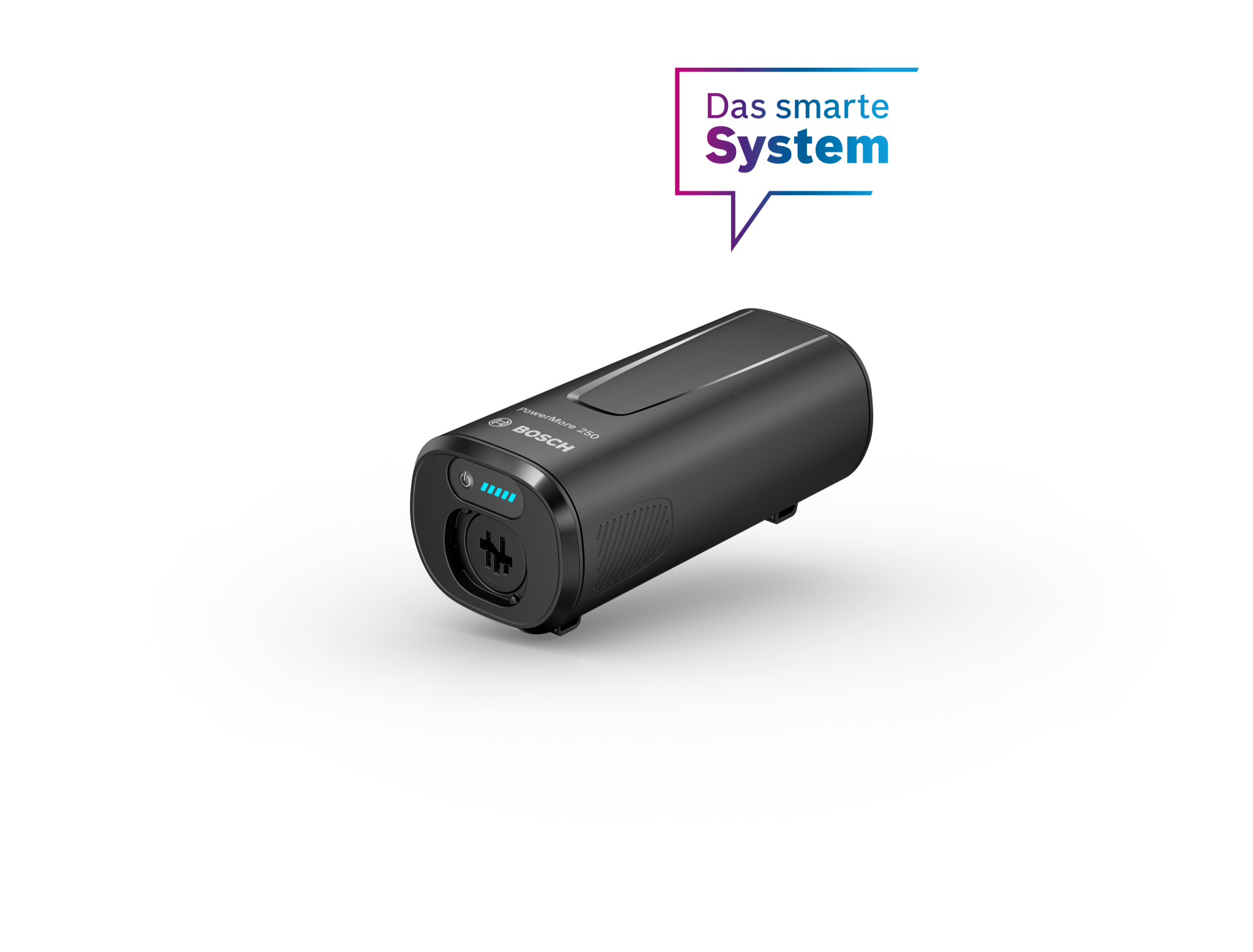

More range with the Range Extender PowerMore 250
Always have enough energy with you: The PowerMore 250 is an additional battery the size of a drinking bottle and ensures even more range and long-lasting trail fun. With its compact and lightweight design and a weight of just 1.6 kilograms, the range extender fits easily in your backpack and is always ready to hand when you need it. When you don't need it, it offers space for your drinking bottle in its holder. For trips with lower energy requirements, you can leave your main battery at home and rely entirely on the PowerMore 250 - this reduces the weight of your e-bike.
The range extender is compatible with the PowerTubes and CompactTubes of the smart system. With the PowerMore 250 you are always on the safe side and can rely on additional energy for longer journeys. Extend your range and experience endless driving fun with this practical, portable energy reserve.
Please check in advance whether you can use the range extender for your eBike.
Bosch Powertube 600
PowerTube 600 and PowerTube 800 in a smart system: A new, lighter housing was used for both batteries. They can be easily swapped, provided the eBike manufacturer has prepared the eBike for this - for more or sometimes less range.
Technical specifications
System: The smart system
Mounting type: In the frame
Voltage: 36 V
Capacity: 16.7 Ah
Energy content: approx. 600 Wh
Weight: approx. 3.0 kg
Size: 424 x 71 x 67 mm
Compatible with DualBattery of the smart system
4A Charger
- 50% charge: approx. 2.0 hours
- 100% charge: approx. 5.3 hours
2A Charger
- 50% charge: approx. 4.2 hours
- 100% charge: approx. 9.1 hours
Bosch Powertube 625
This battery has an impressive capacity of 625Wh and is designed to be installed in the frame of the bike. The high capacity makes this battery ideal for long distances. The estimated range is 94 to 188 kilometers. For more information on the range of this battery, see the "Range and product variants" section. Due to the robust housing, this Bosch battery is often used in electric mountain bikes and high-quality e-bikes. Before first use, the battery only needs to be charged; a complicated registration process is not required.
Technical specifications
Voltage: 36V
Capacity: 16.7Ah
Output power : 625Wh
Technology : li-ion
Dimensions : 416 x 65 x 84 mm
Weight (kg): 3.5
Bosch Powertube 800
PowerTube 600 and PowerTube 800 in a smart system: A new, lighter housing was used for both batteries. They can be easily swapped, provided the eBike manufacturer has prepared the eBike for this - for more or sometimes less range.
Technical specifications
System: The smart system
Mounting type: In the frame
Voltage: 36 V
Capacity: 22.2 Ah
Energy content: approx. 800 Wh
Weight: approx. 3.9 kg
Size: 424 x 77 x 71 mm /
430 x 71 x 77 mm
Compatible with DualBattery of the smart system
4A Charger
- 50% charge: approx. 2.6 hours
- 100% charge: approx. 6.9 hours
2A Charger
- 50% charge: approx. 5.7 hours.
- 100% charge: approx. 12.4 hours

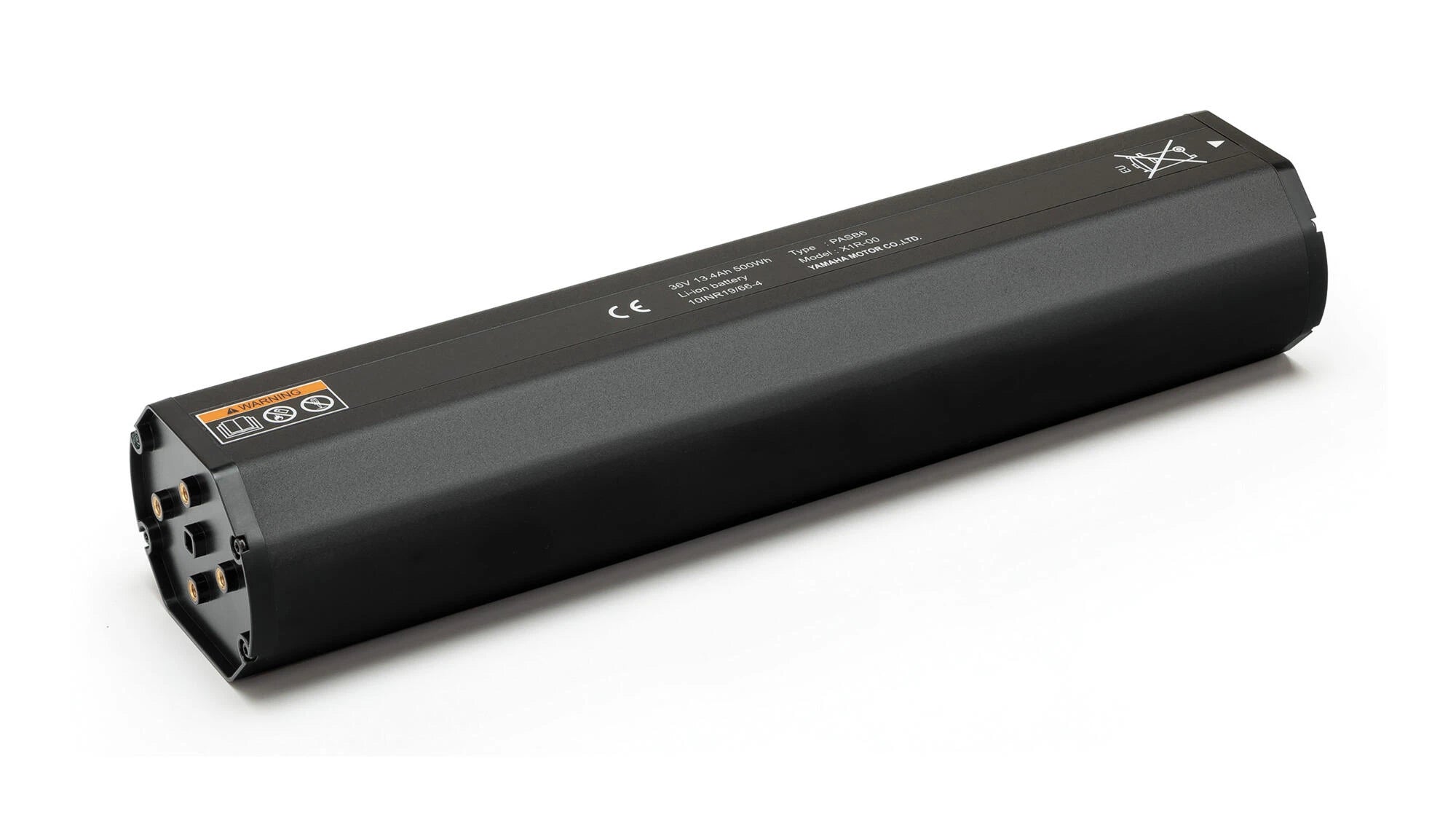

Yamaha ML500
The ML500 Multi-Location battery has established itself as one of the most attractive options for OEM manufacturers who demand a high-quality product that integrates seamlessly with Yamaha's extensive range of eBike drive units and displays
Technical Specification
Its attractive design makes it easy to integrate into the frame, and the ML500's compact dimensions give chassis designers plenty of room to design. With its precise fit and a weight of just 3.0 kg, this battery is perfect for a wide range of eBike applications.
Watt-hour rating: 500 Wh
Capacity: 3.4 Ah
Voltage: 36 V
Approximate charging time: 4.0 hours
Weight: 3.0 kg

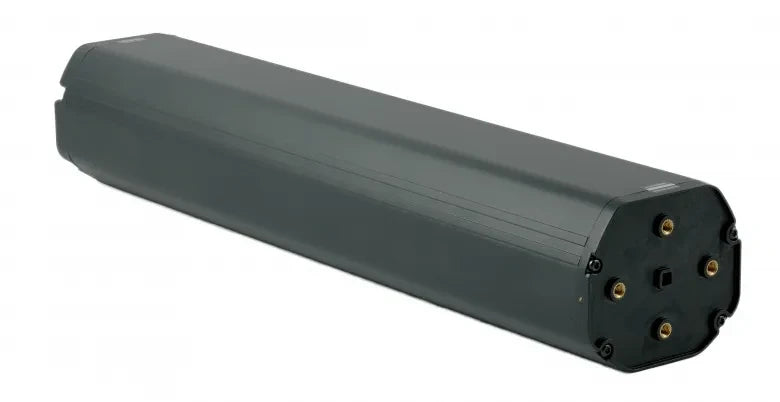

Yamaha Intube 720
With a battery capacity of 720 Wh , the Yamaha Simplo-Intube battery is the ideal companion for long e-bike tours. The Intube battery is compatible with e-bikes that have the Yamaha 36 volt PW-S2 drive or the Yamaha 36 volt PWX-3 drive. Furthermore, the TP-YMC lithium-ion battery from Trend Energy has no memory effect. This means that the Simplo Intube battery from Yamaha can be charged at any time and regardless of its charge level.
Technical data:
Drive system: Yamaha
Manufacturer : Yamaha
Yamaha system : Yamaha PW-S2, Yamaha PW-X3
Weight: approx. 4.0 kg
Color: Black
Compatibility: for Haibike & Winora, model year 22
Capacity: 720 Wh

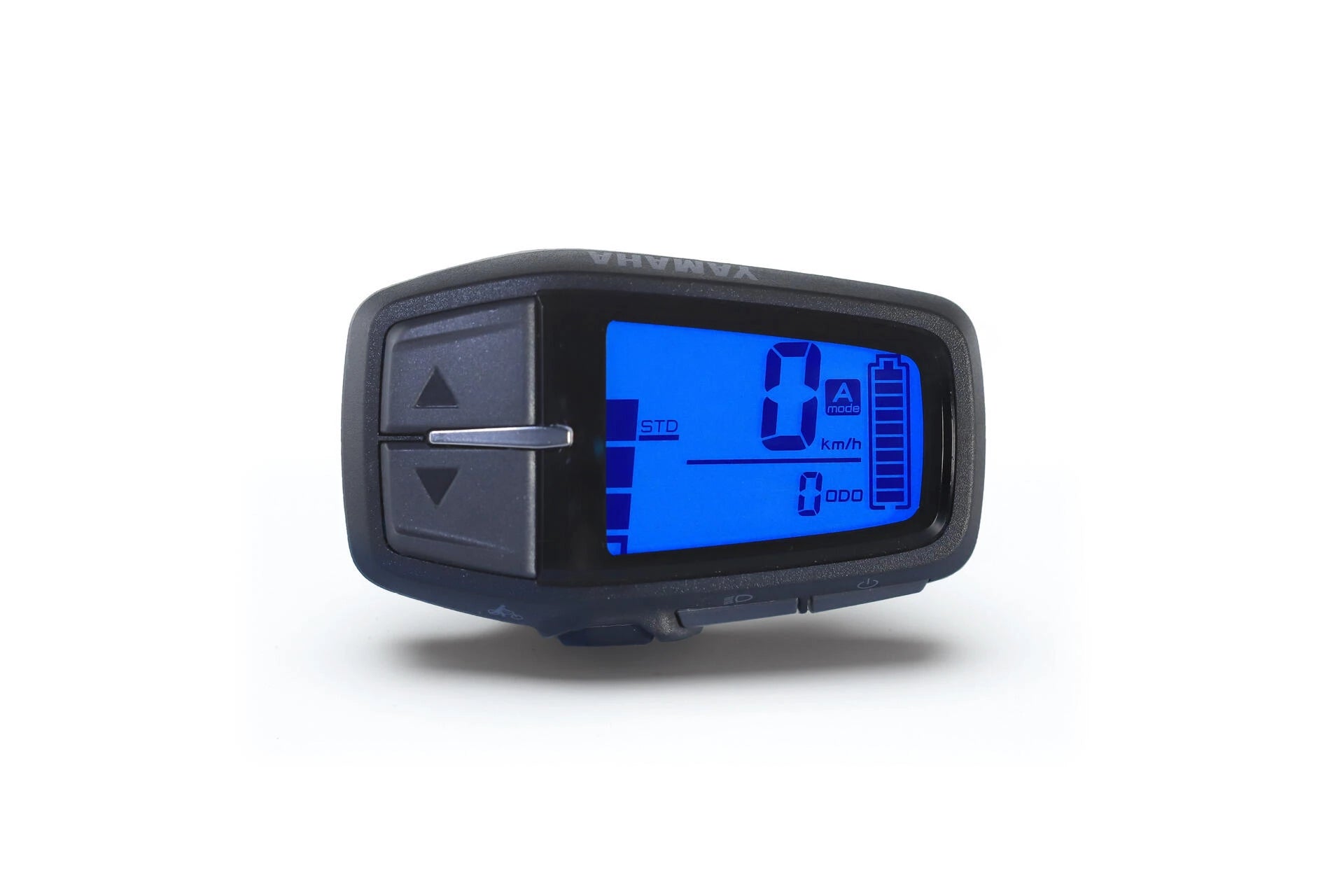

Display A2 Side Switch
The A2 display delivers clear and easy-to-understand information both in the city and on the trail. Its compact layout has been ergonomically designed to allow for smooth and easy operation – and its simplicity and versatility make it the perfect choice for your Yamaha eBike.
features
Large LED screen
A key feature of the Display A2 is the large LCD screen, which is easy to read even in poor visibility conditions. And for added durability when you're out in the dirt or on gravel, the screen is protected by a special scratch-resistant hard coating.
Comprehensive information
The A2 display always shows the speed, battery status and assistance mode, and you can select trip meter, odometer and range data as needed.
Ergonomic switches
The Display A2 features redesigned ergonomic switches for the assist mode, allowing for better usability. The size and shape of the Walk Assist switch has also been improved to enable smooth and precise operation

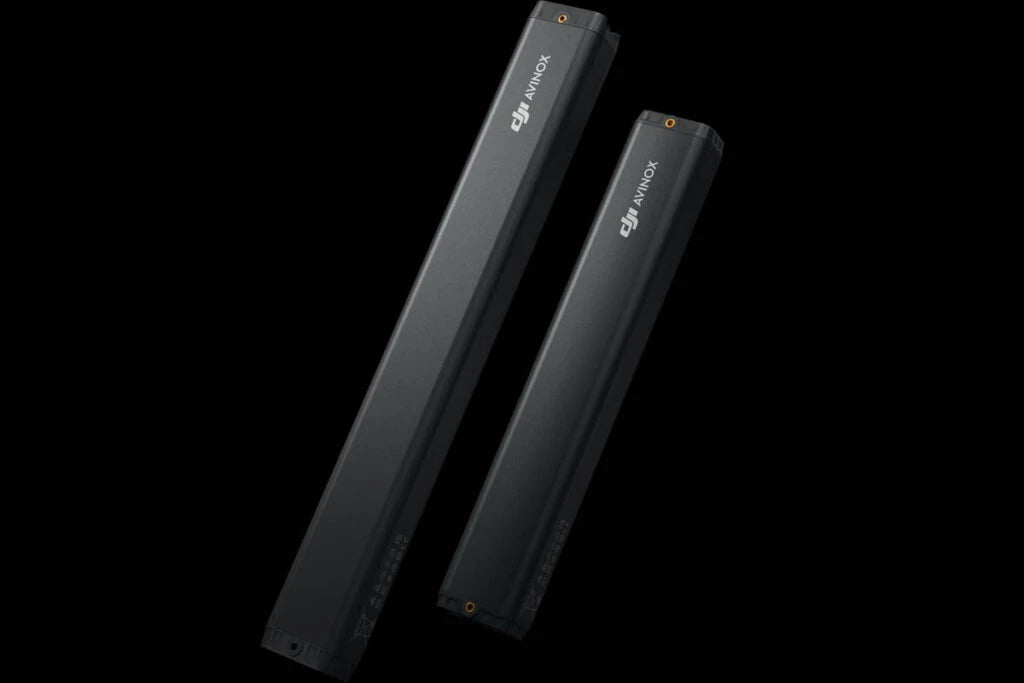

Avinox integrated battery
The Avinox Drive System offers two battery options: 600 Wh and 800 Wh . The batteries are lightweight and compact, helping to keep the bike's overall weight low. They feature extremely high energy density and large capacity , which not only enable a longer range but also provide the power needed to effortlessly adapt to dynamic conditions . Thanks to intelligent energy management, the system always delivers optimal support.
Technical specifications
🔋 600 Wh battery – Lightweight and compact with a range of up to 117 km
🔋 800 Wh battery – Maximum capacity for tours up to 157 km
The batteries are specially developed for the Avinox drive system and offer:
⚡ Fast charging function – Charged to 75% in just 96 minutes with the 12A/508W charger
🔌 Magnetic charging port – Securely placed on the seat tube, easy to use
💡 Efficient energy management – Optimized for long driving times and high performance
