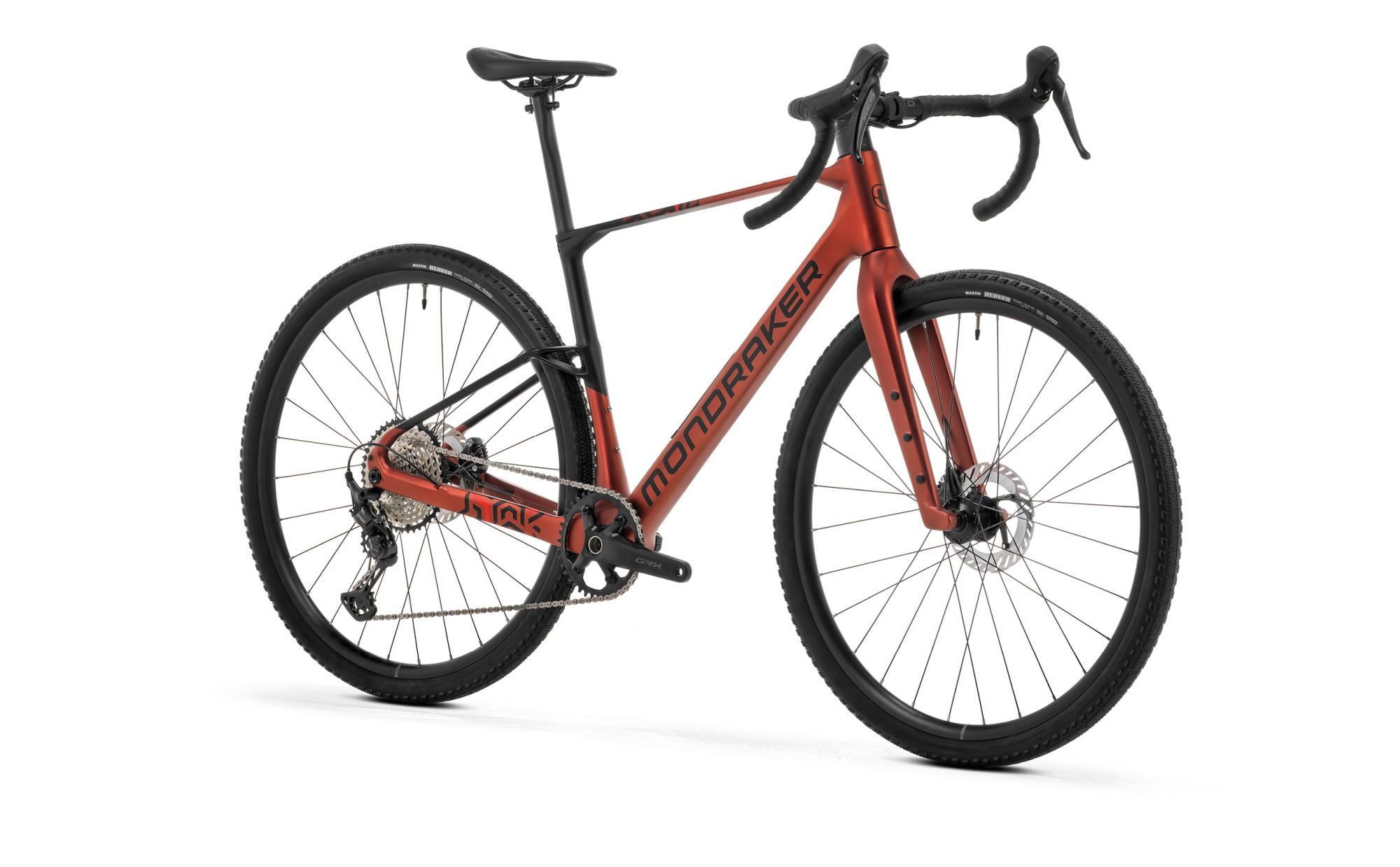

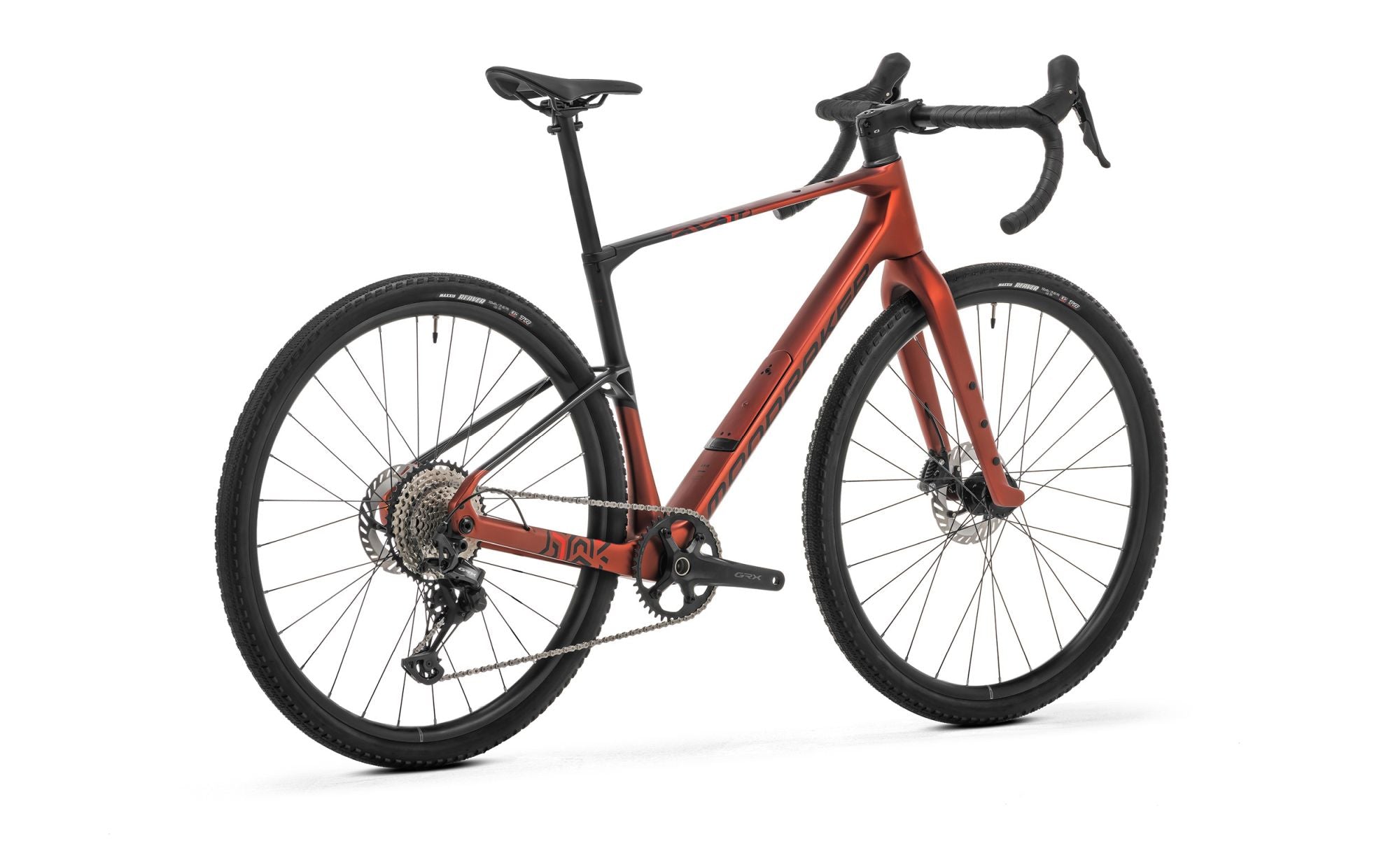

Mondraker Arid Carbon Red/Black 2025

Rahmen

Arid Stealth Air Carbon, frame storage compartment, T47 bottom bracket, tapered head tube, internally routed cables and wires (HHG), 12 x 142 mm rear axle, single drive design, flat mount brake compatible.

Steuersatz

ONOFF IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, internally routed cables and wires.

Gabel

Stealth Air Carbon, tapered head tube, HHG, integrated flat-mount fork

Felge

Mavic Allroad Disc, UST, 25 mm inner width, hookless, Infinity hubs, 24 spokes front, 28 spokes rear

Naben

VR: Mavic, 12 x 100 mm, IS 6-hole | HR: Mavic Infinity hub, 12 x 142 mm, XD ID360 ratchet freehub system, IS 6-hole, MS freehub

Reifen

Maxxis Reaver 700 x 45, Tubeless Ready, Dual Compound, EXO Protection, 120 TPI, Folding Bead

Schaltwerk

Shimano GRX RX-822-GS, 12-speed

Schalthebel

Shimano GRX RX-610 Dual Control, aluminum lever

Kette

Shimano SLX M7100, Quick-Link

Kurbel

Shimano GRX RX-610, size S: 170 mm, size M: 170 mm, size ML: 172.5 mm, size L: 172.5 mm, size XL: 175 mm, chain line 49.7

Kassette

Shimano SLX M7100, Hyperglide+, 10-45, 12-speed

Bremsen

Shimano GRX RX-610, RX-400 brake caliper, CL-800 Ice-Tech 160 mm Center Lock brake disc, resin brake pad

Lenker

ONOFF S3 GR 16° handlebar flare. Widths size S: 440 mm, size M: 440 mm, size ML: 460 mm, size L: 460 mm, size XL: 460 mm

Griffe

ONOFF HEX handlebar tape

Vorbau

ONOFF S3 6061-T6 aluminum, 31.8 mm handlebar diameter, angle: -7º, length: size S: 60 mm, size M: 70 mm, size ML: 70 mm, size L: 80 mm, size XL: 90 mm

Sattel

FIZIK Terra Argo X5 140 mm

Sattelstütze

ONOFF S9 Carbon 0-R, diameter 27.2 mm, length 400 mm

Gewicht in kg

9.7
