Avinox drive system
All info on the new 2026 E-MTB drive system

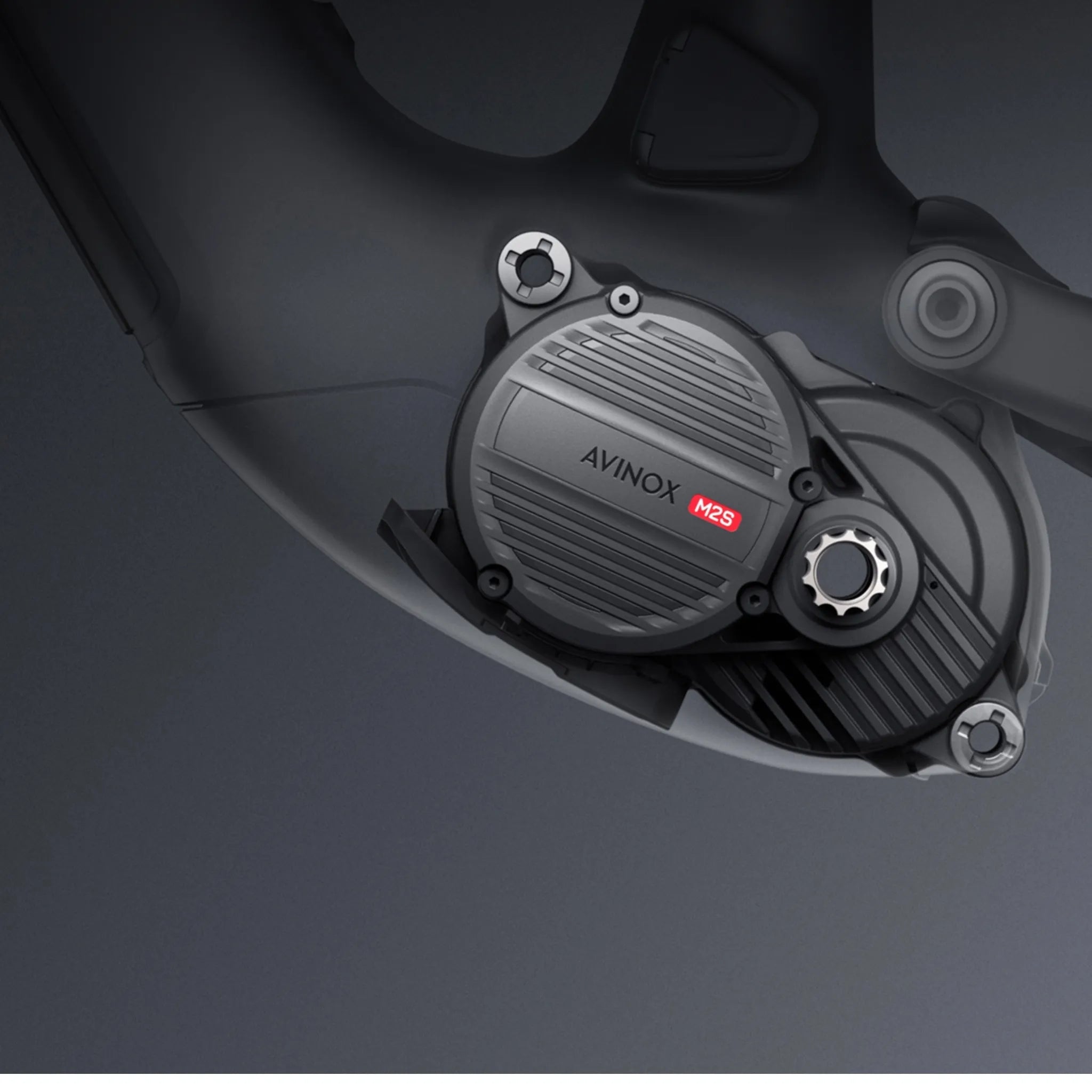

The new Avinox M2s motor: Performance, technology, and ride feel in detail
With the new Avinox M2s motor, an extremely powerful E-MTB drive system enters the stage. Up to 150 Nm of torque and 1500 W of power promise a new dimension on the trail. What is really behind it?
Avinox M2 & M2S Motor: More power, more efficiency – what’s behind the new generation
With the Avinox M2 and M2S, the manufacturer is bringing the next evolutionary stage of its e-bike drive system to market. After the first Avinox motor (M1) already caused quite a stir, the new generation is now stepping up in all key areas: performance, efficiency, and ride quality.
But what exactly is new? And is it worth switching from the M1 to the M2 or M2S?
From the Avinox M1 to the M2/M2S – a true evolution rather than mere fine-tuning
The first Avinox motor surprised the market primarily with its combination of high power and comparatively low weight. It was clear even then that a system had been developed here that was specifically aimed at sporty riders. With up to 1000 watts of power and very direct response, the motor set new standards, particularly on climbs.
This concept was consistently further developed with the M2 and M2S. Instead of just improving individual parameters, Avinox overhauled the entire motor architecture. The goal was not only to increase the existing power, but also to make it more efficiently usable while designing the system to be more robust overall.
The result is a motor that not only reads as more powerful on paper, but also offers significantly more reserves on the trail.
An overview of the key innovations in the Avinox M2 & M2S
With this new generation, Avinox is consistently taking the next step and purposefully elevating the M2S to a new performance level. The focus is clearly on maximum power, efficient power delivery, and a design that remains reliable even under continuous stress.
Thanks to these technical advancements, the motor not only delivers its power noticeably more directly, but also maintains it consistently for longer – a decisive advantage for challenging trails, long climbs, and an aggressive riding style.

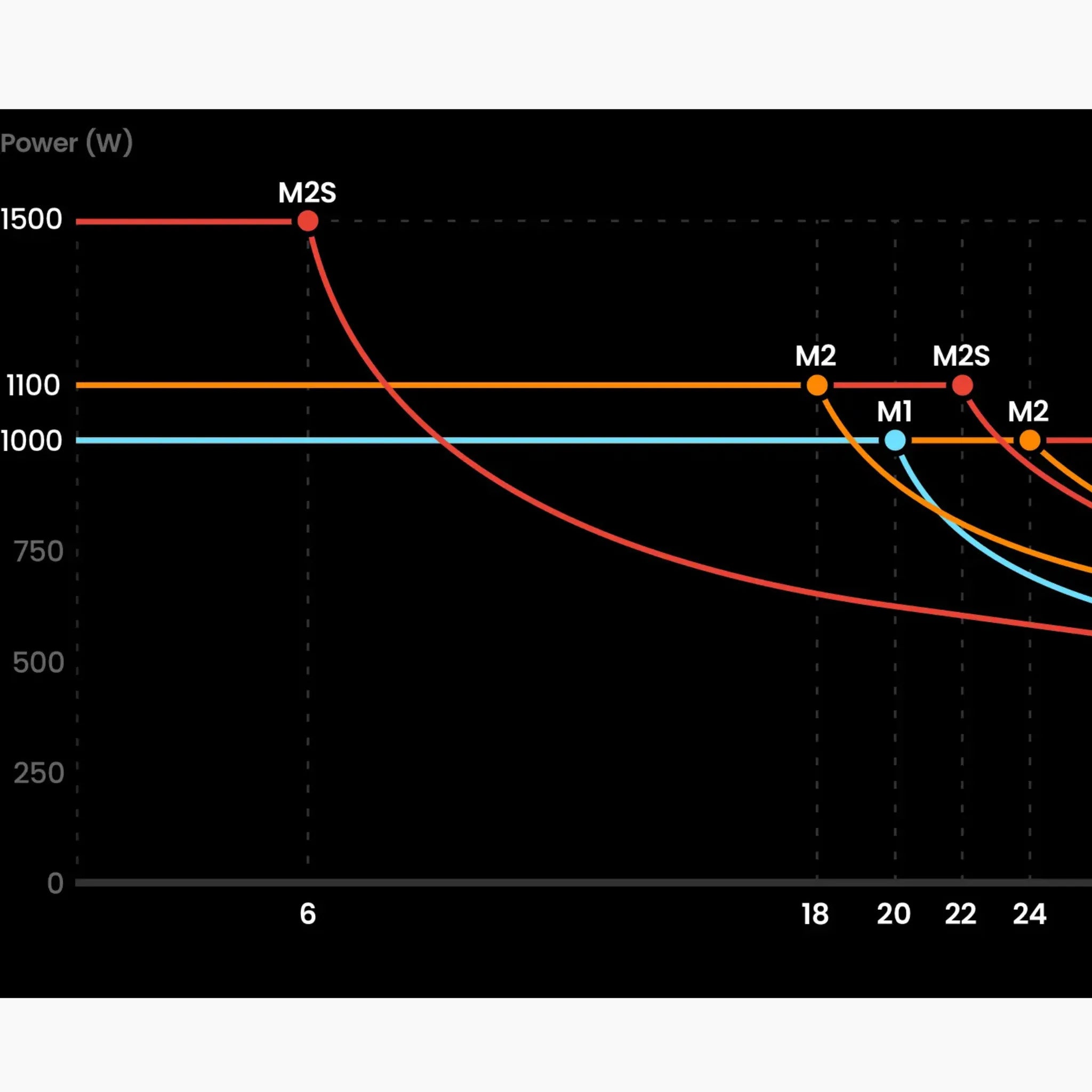

Significantly more performance
- M2: up to 125 Nm & 1100 W
- M2S: up to 150 Nm & 1500 W
Higher efficiency
The efficiency has been noticeably improved:
- M1: approx. 78%
- M2/M2S: approx. 81%
That sounds like a small amount, but in the e-bike sector, it is a massive leap and has a direct impact on range and performance.
Completely redesigned engine architecture
Key technical updates include:
- flat wire winding (more power in the same size)
- dual-gear design
- reduced friction losses
- optimized electrical resistance
The goal: more power combined with better efficiency.
Better thermal management
The new motor maintains its power output for longer – even under continuous load.
Especially for:
- long climbs
- bike park use
- aggressive riding styles
a decisive advantage.
Increased robustness
- IP66 certification
- improved sealing
- sturdier components
An overview of the evolution of Avinox drive systems
Avinox M1 vs. M2 vs. M2S – the direct comparison
From a powerful entry-level to uncompromising high performance: M1, M2, and M2S show how power, efficiency, and character evolve within a single generation. Here you can see at a glance which drive system suits your field of application.
Avinox M1
Avinox M2
Avinox M2S
120 Nm
125 Nm
150 Nm
1000 W
1100 W
1500 W
approx. 2.5 kg
2.6 kg
2.6 kg
~78%
~81%
~81%
600 / 800 Wh
700 / 800 Wh
700 / 800 Wh
strong
stronger
extremely powerful
Who is the new Avinox motor of interest to?
The focus is clearly defined. The motor is primarily aimed at sporty riders who actively use their e-bike off-road and value performance.
If you spend a lot of time on trails, enduro, or in the bike park and are looking for a system that offers maximum support while providing good control, the M2 or M2S is exactly the right setup.
For classic applications such as city traffic or relaxed tours, however, the power offered is often more than necessary.
Which models have the new Avinox motor?

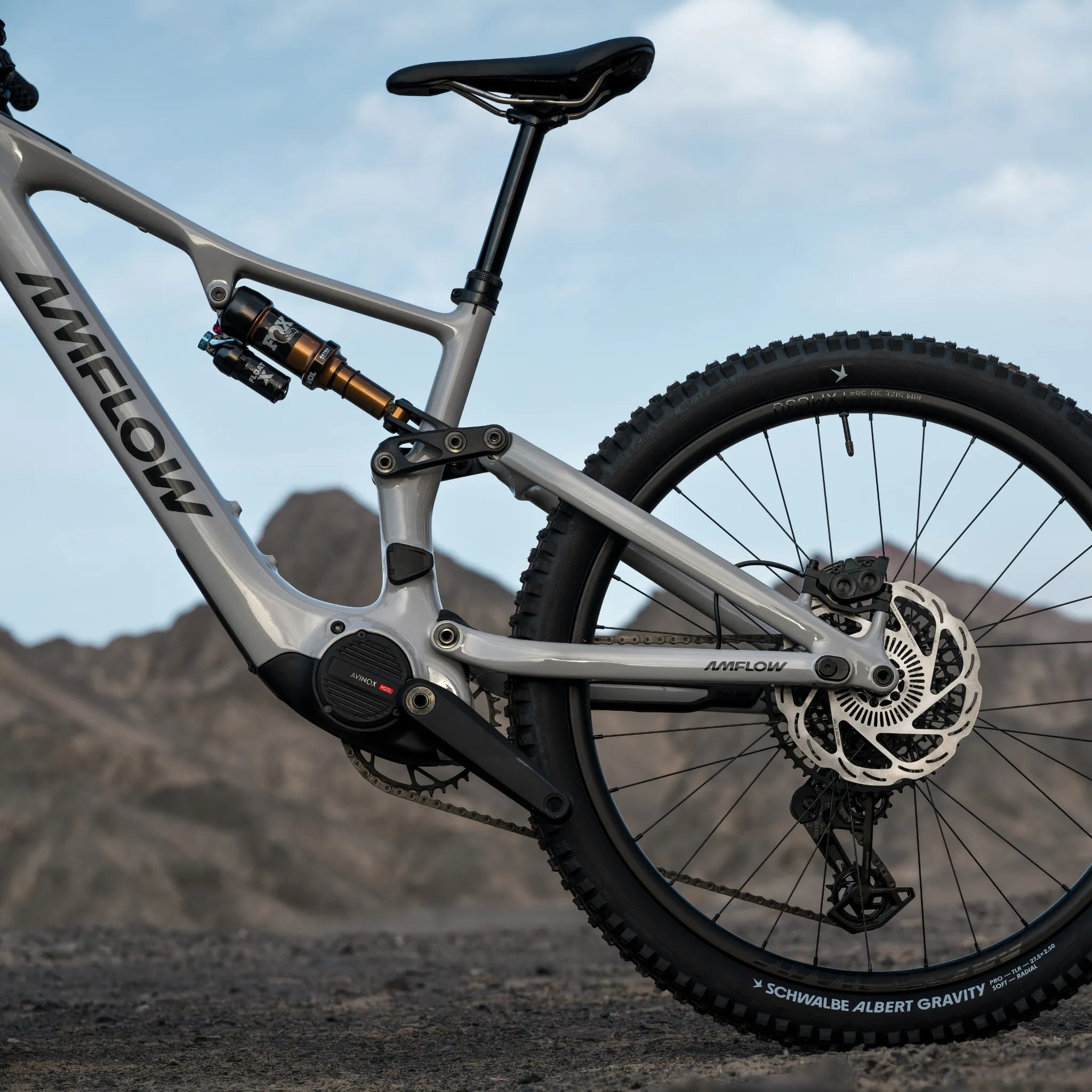

With the new Avinox motor, the first bikes are now coming onto the market that truly exploit the full potential of the system. Particularly exciting here are the Crussis e-Full 11.11, the Crussis e-Full 12.11, and the Amflow PX Carbon.
What is especially exciting is that these bikes show the direction in which the market is heading. The motor is no longer just support; it is increasingly becoming the central performance factor. Bikes like the Crussis e-Full or the Amflow PX Carbon are designed precisely for this and get the absolute maximum out of the Avinox system.
Avinox system in detail: Motor, battery, display & software working in harmony
In addition to the new motor, Avinox has introduced several other new features, innovations, and upgrades. Here is an overview of the most important ones:
Top feature: Thanks to a 12A fast charger, the batteries charge in record time – the 800 Wh battery is back to 75% in approx. 90 minutes.
Smart features for practical use
- Security: Native integration of Apple "Find My" for bike tracking.
- Ecosystem: DJI action cams can be controlled directly via the display. Ride data is automatically overlaid on the video.
- Connectivity: 4G connectivity and 65W USB-C charging port on the display (depending on the model).

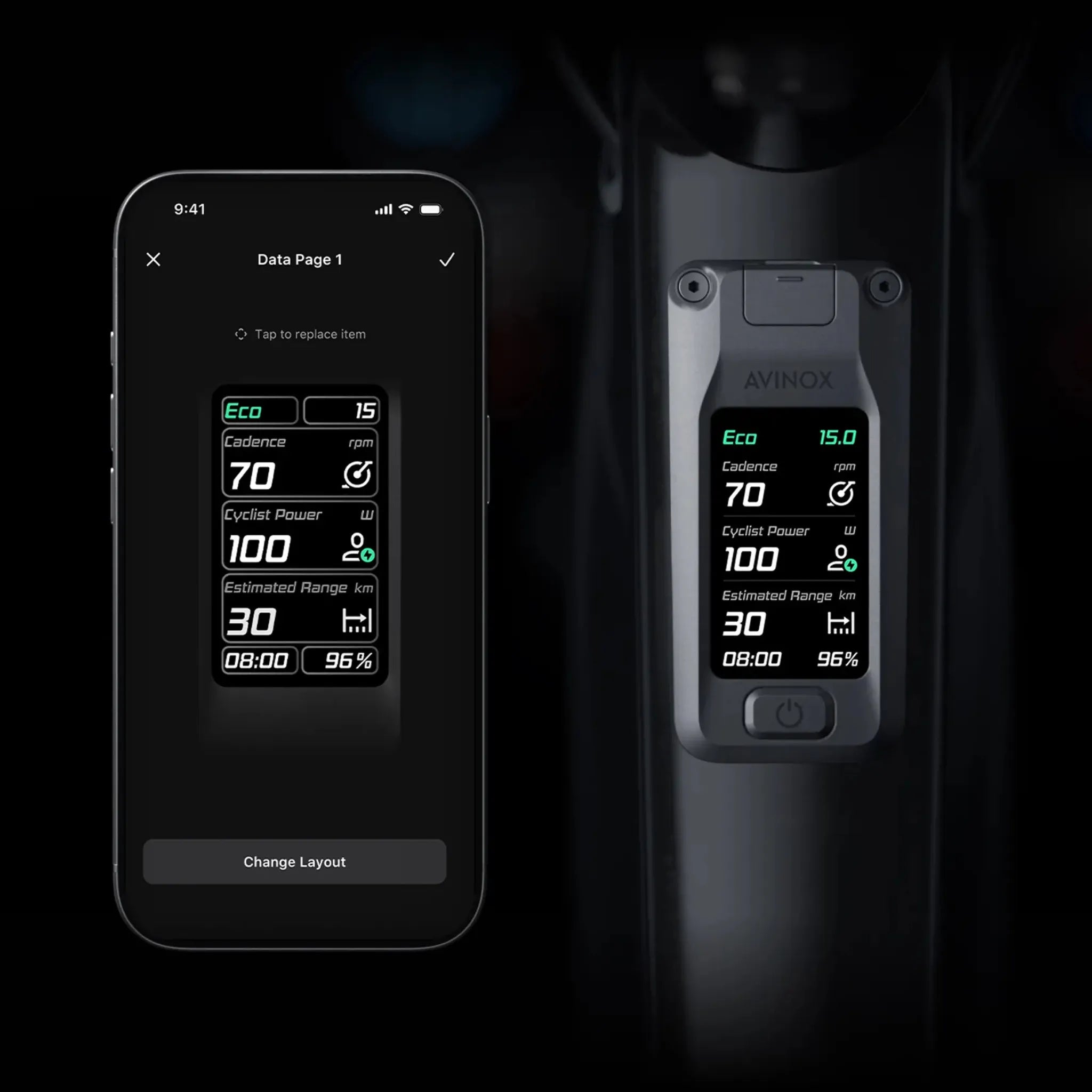

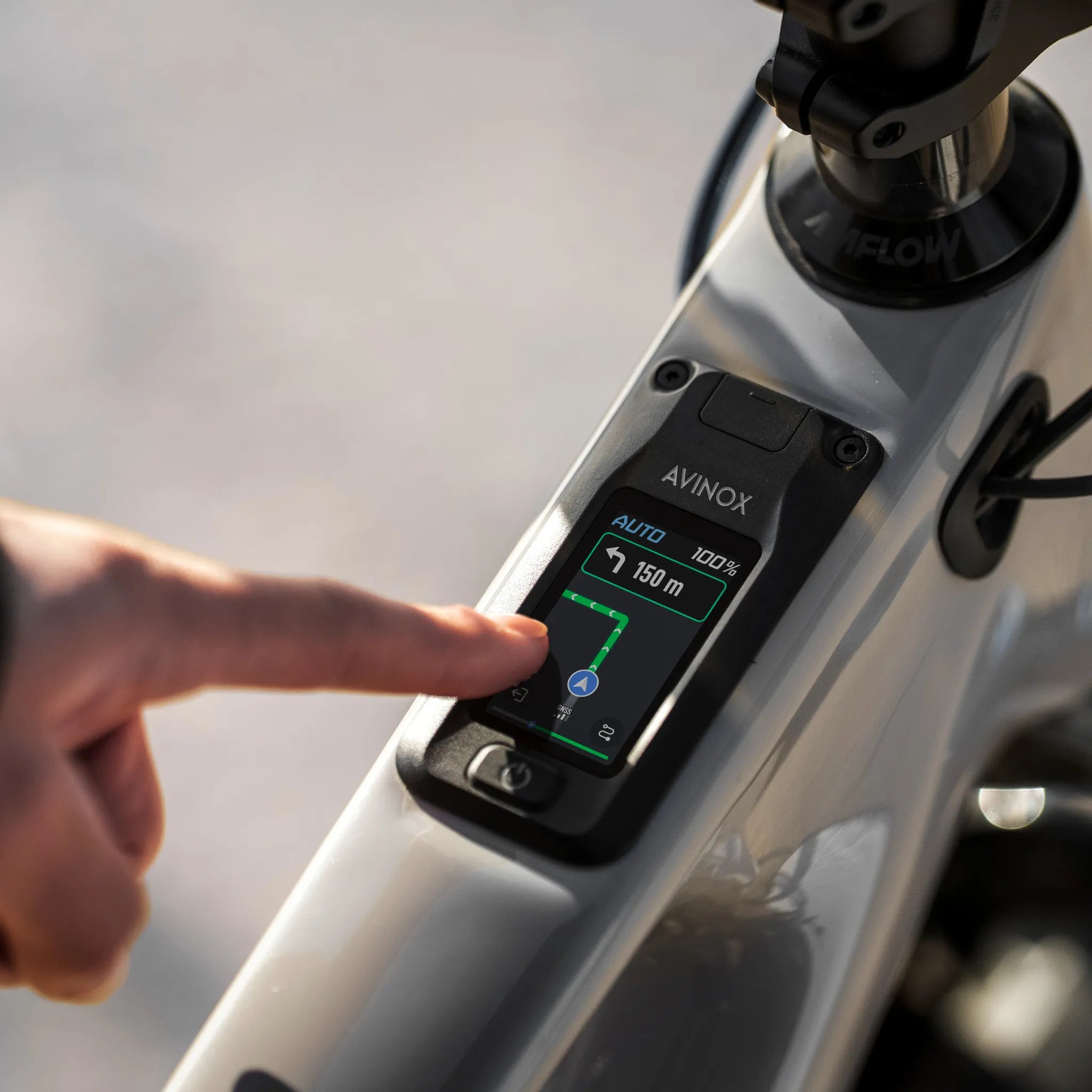

Avinox Control Display: Your smart e-MTB cockpit
The Avinox Control Display is much more than a simple screen – it is the intelligent command center of your e-bike. Seamlessly integrated into the top tube, it combines state-of-the-art display technology with intuitive operation, allowing you to focus entirely on the trail.
Technical Brilliance & Intuitive Control:
- Crystal-clear OLED touch display: The 2-inch OLED display offers extremely high brightness (up to 800 nits). All data remains perfectly readable even in direct sunlight.
- Smart & Robust: The surface is scratch-resistant and designed so that the touchscreen responds reliably even when wet or when wearing gloves.
- Wireless freedom: The display communicates via Bluetooth with the wireless controllers on the handlebars. This means: a clean cockpit without cumbersome cables and maximum ergonomics.
Features that leave no questions unanswered:
- Real-time data analysis: View speed, range, cadence, power, and even altitude. You can individually arrange up to eight data fields per screen.
- Custom motor setups: Change parameters such as maximum torque, walk assist, or motor overrun directly via the display – no smartphone needed while riding.
- Security through connectivity: Thanks to the integrated 4G module (optional via Nano-SIM), the system offers GPS tracking, motion alarms, and a digital lock directly via the Control Display.
The Avinox app: Your e-bike, perfectly personalized
With the Avinox app, your smartphone becomes the ultimate command center. It connects you seamlessly to your e-bike and allows for deep configuration that goes far beyond standard settings. Whether it's performance tuning, security, or ride data analysis – you have everything under control.
Key features for maximum control:
- Individual motor profiles: Precisely adjust the assistance levels (Eco, Trail, Turbo) as well as the powerful Boost mode to your preferences. You decide on the maximum torque, acceleration, and overrun.
- Smart keyless system: Activate the Phone as Key (PAK) feature. Your bike recognizes you automatically via Bluetooth and unlocks as soon as you are nearby – no key, no stress.
- Real-time security & theft protection: Always keep an eye on your bike. In the event of unauthorized movement, the app immediately sends you a push notification and shows you your bike's GPS location in real time.
- Comprehensive data analysis: Analyze your rides down to the smallest detail. From your own pedaling power to calorie consumption and elevation statistics, everything is clearly presented.
Experience the Avinox M2S in its most powerful form
Do you want maximum power without compromise? The M2S stands for performance at a new level. Discover the bikes now that fully realize this potential – made for demanding trails and the highest standards.
