Newmen wheel Streem C.38 VONOA 622 FADE R 12x142 SH

Newmen wheel Streem C.38 VONOA 622 FADE R 12x142 SH

Whether on the test bench, in the legendary spring classics, or on long tours, Newmen's Streem series professional wheels deliver top-level performance in every situation. Their development began back in 2020 with the goal of finding the best compromise between aerodynamics, low weight, stability, and comfort. And the results are definitely impressive. Both technically and visually, the wheels showcase the expertise and meticulous attention to detail of Newmen's engineers. Furthermore, they already secured several victories in professional races during the testing phase.
Is the high mountains your preferred terrain? Then the C.35, where C stands for Climbing, is the ideal front wheel for you. Its relatively shallow rim depth saves weight, yet it's still stiff enough to ensure you don't waste any energy, even when standing and pedaling hard. It pairs perfectly with the C.38 rear wheel.

Streem Carbon rim
The Newmen carbon rim is manufactured exclusively from the highest quality UD carbon fibers. Its shape achieves excellent performance in all wind conditions, and the profile remains neutral even in crosswinds. Thanks to its generous 22 mm internal width, it is aerodynamically optimized for 28 mm and 30 mm wide tires. This allows for lower tire pressure, resulting in increased grip and greater comfort. Newmen has opted for a hooked rim profile. This provides a secure hold for both tubeless tires and traditional clincher tires with inner tubes. To preserve the high-quality UD carbon look and save weight, only an ultra-thin layer of clear coat is applied after production.

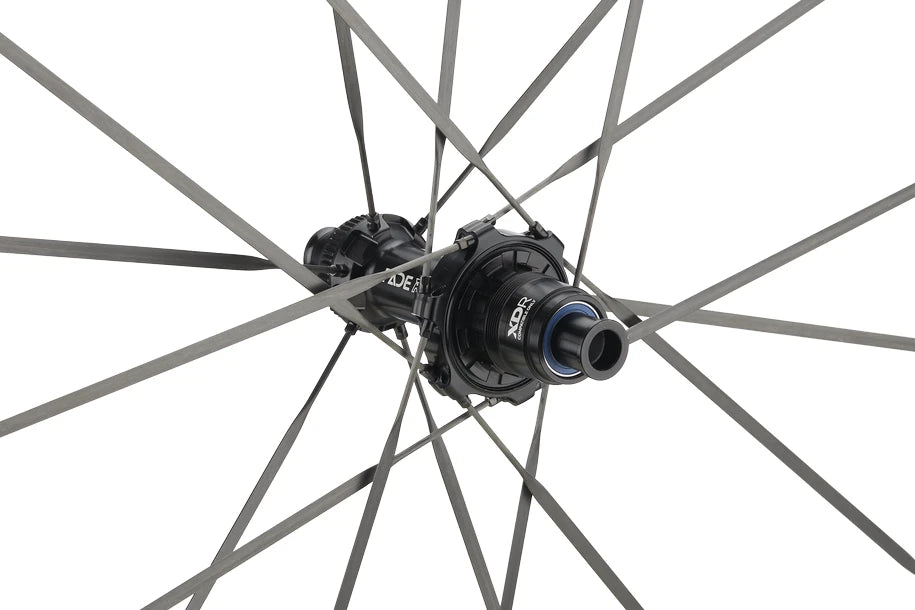

Fade R CS hub
At the heart of the hub are Newmen's own Fade R CS hubs. Equipped with high-quality, double-sealed industrial bearings, they stand for durability under all conditions. Unlike the already proven FADE Road hubs, this version has been internally reinforced. This allows for better compensation of forces and makes it even approved for use on e-road bikes. Externally, the slim design remains, which avoids drag-inducing air turbulence and improves aerodynamics. The flanges have been redesigned to accommodate VONOA carbon spokes and are visually striking. Furthermore, Newmen uses a special grease that has 25% higher water absorption capacity and a very high bleed-out temperature, protecting the bearings from premature wear and corrosion.
The 15-hole front hub is a new development specifically for road wheels with VONOA carbon spokes.

VONOA Aerowide Carbon Spokes
The highlight of this front wheel is definitely the spokes. Unlike the usual steel spokes, these are made of carbon fibers and are approximately 40% lighter each. Together with the lightweight rims, they deliver incredible acceleration and superior uphill performance. Furthermore, their aerodynamic shape offers minimal wind resistance, allowing you to conserve valuable energy. They also boast exceptional tensile strength, enabling a very stable and durable wheel even with just 15 spokes.

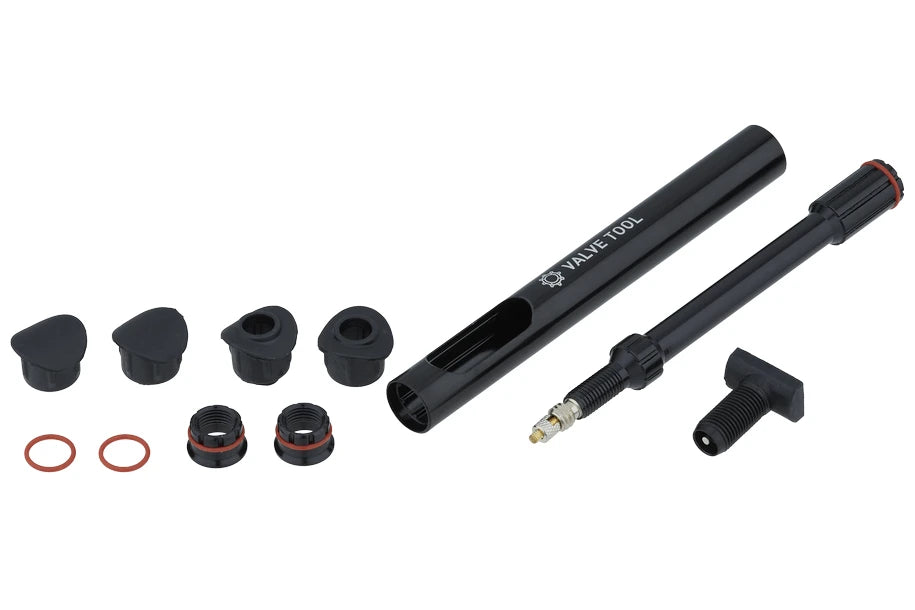

Stream valve
The world's first internal (tubeless) valve ensures even better aerodynamics and a clean look. To inflate or deflate, simply screw on the included valve extender by hand. Thanks to the supplied adapters, the hybrid system can also be used with a conventional valve.

Technical data:

Intended use: Road bike, e-road bike up to 60 Nm torque
Wheel size: 28" (ETRTO: 622 x 22 mm)
Rim type: Clincher (wire and folding tires)
Brake type: for disc brakes only
Brake disc mount: Center Lock (max. disc size: 160 mm)
Material:
Rim: UD Carbon; Hub: aluminum
Inner width: 22 mm
Outer width: 29.5 mm
Rim height: 35 mm
Number of holes: 15
Axle standard: 12x100 mm thru axle
Storage: 2x industrial warehouses
Spokes: 15x VONOA Aerowide carbon spokes, straight pull
Spoke pattern: Disc side: 1-cross | Non-disc side: radial
Tubeless compatible: yes
Recommended tire width: 25 - 32 mm, aerodynamically optimized for 28 and 30 mm widths
Maximum air pressure: n/a
Maximum system weight: 130 kg (rider, bike, clothing and any luggage)
Rim color: matte black with grey decals
Hub color: matte black

Weight according to manufacturer: 460g
