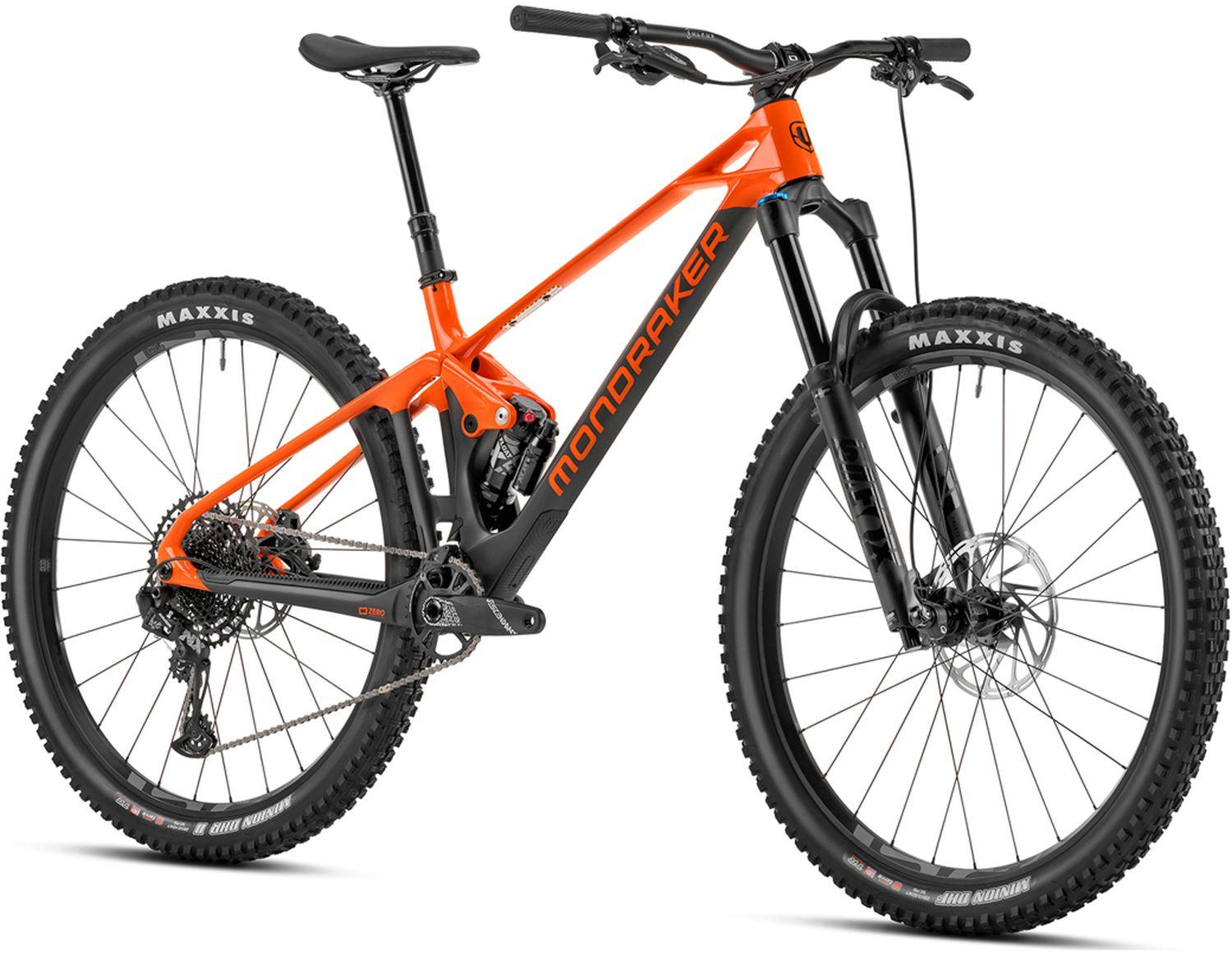

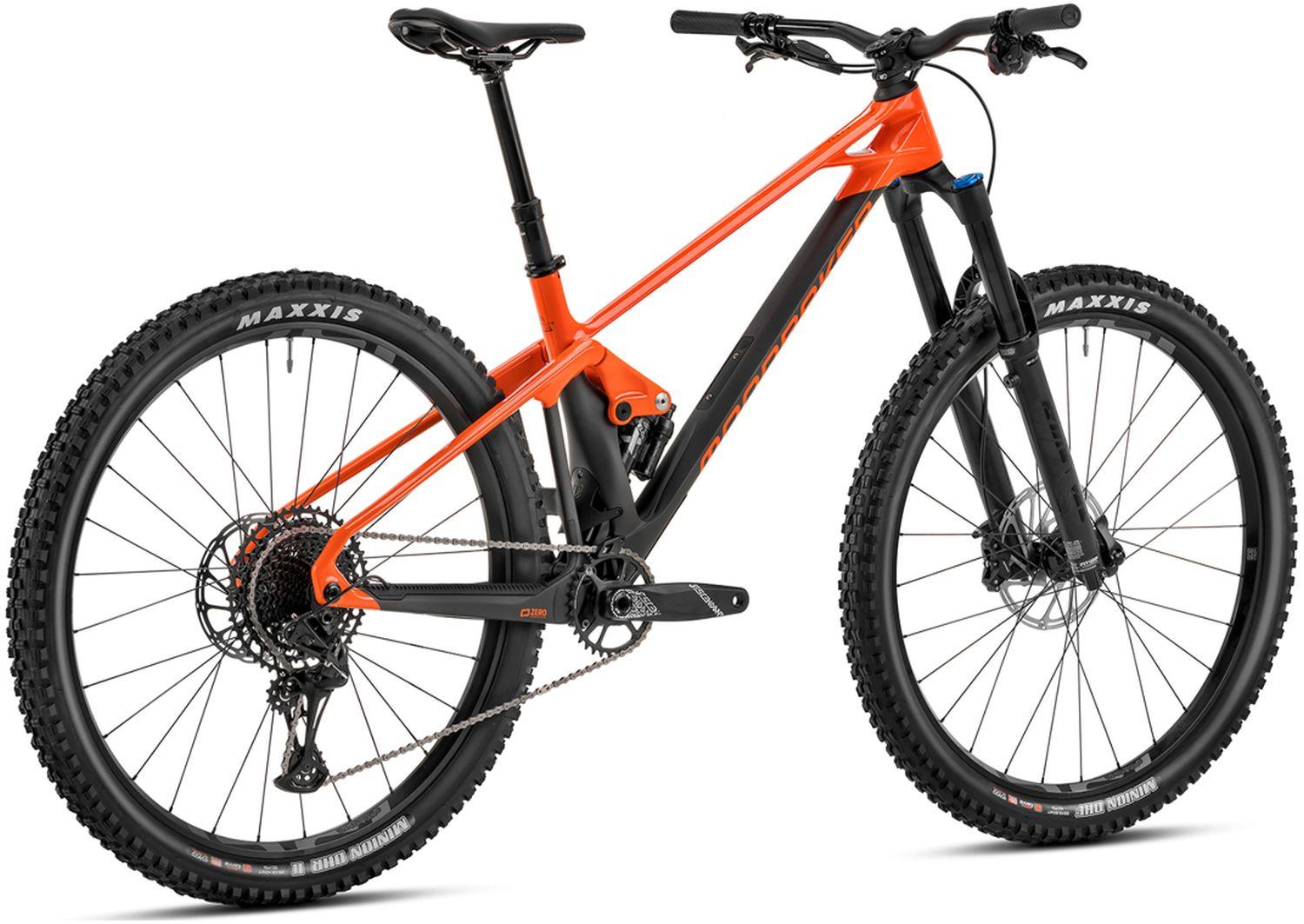

Mondraker Foxy Carbon R 29 Matte Carbon / Gloss Orange 2023 | Mountain bike
The FOXY CARBON R is the cheapest of all carbon models. And yet it has the same frame as the XR and RR Carbon. It offers aFox chassis with 160mm travel at the front and 150mm at the rear, a SRAM NX Eagle 12-speed drive, e*thirteen LG1 Plus Enduro wheels, SRAM G2 R 4-piston brakes and ONOFF components including a retractable Pija seat post. Adjustable geometry is optional for this bike.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Foxy 29 Stealth Air full carbon, Zero Suspension System, 150mm travel, Alloy CSC rocker with carbon middle section, Boost 12x148mm rear axle, 73mm BSA bottom bracket, specific design for 1-speed drives, HHG internally routed cables and cables, ISCG 05
Steuersatz
Acros Custom for 1-1/2" head tube, angular contact ball bearings 40x52x7, internal cable routing
Gabel
Fox 36 29 Float Performance GRIP, 160mm, 3 position, butted head tube, Boost 15x110mm axle, 44mm offset. Settings: Sweep Adjust compression, low-speed rebound, air pressure
Dämpfer
Fox Float-X LV Performance, 205x65mm. Settings: compression via two-stage lever, low-speed rebound, air pressure. Upper mounting: Trunnion, lower bearings 30x8mm
Felge
e*thirteen LG1 Enduro, IW30 Hookless, 6069 aluminum welded, 30mm inner width, tubeless ready, 28 spokes
Naben
Front: e*thirteen Boost 15x110mm, triple sealed, milled aluminum, IS 6-hole HR: e*thirteen Boost 12x148mm, triple sealed, milled aluminum with 6° teeth, IS 6-hole, Shimano freewheel
Reifen
VR:Maxxis Minion DHF 29x2.5 WT, Tubeless Ready, 3C MAXX TERRA Compound, EXO+ puncture protection, 120 TPI, foldable HR:Maxxis Minion DHR II 29x2.4 WT, Tubeless Ready, 3C MAXX TERRA Compound, EXO+ Protection, 120 TPI, foldable
Laufradgröße
29"
Schaltwerk
Sram NX Eagle, Roller Bearing Clutch Type 3, Cage Lock, 1x12-speed, X-Actuation 1:1
Schalthebel
Sram Trigger NX Eagle, 12-speed, X-Actuation 1:1
Kette
Sram NX Eagle, 12-speed, Powerlock
Kurbel
Truvativ Descendant 6K Eagle, Boost, DUB axle, direct mount chainring, size S/M: 170mm, size L/XL: 175mm
Kassette
Sram XG-1230, 11-50T, 12-speed
Bremsen
Sram G2 R, 4-piston brake caliper, one-piece 200mm (front) / 180mm (rear) 6-hole Centerline brake disc, organic brake pads with steel backplate
Lenker
Onoff Sulfur 1.0, double butted 6061 aluminum, rise: 20mm, width: 800mm, 9º horizontal offset/backsweep, 5º vertical offset/upsweep, 31.8mm handlebar diameter
Griffe
Onoff Desert, lock-on single, 135mm
Vorbau
Onoff Sulfur FG 30mm 0º, forged 6061 aluminum, 31.8mm handlebar diameter
Sattel
SDG BEL-AIR 3.0, LPU foam, steel struts
Sattelstütze
Onoff Pija retractable, internal cable routing, diameter 31.6mm, size S: 405x95-125mm, size M 458x120-150mm, size L: 498x140-170mm, size XL: 498x140-170mm
Pedale
Nicht im Lieferumfang enthalten
