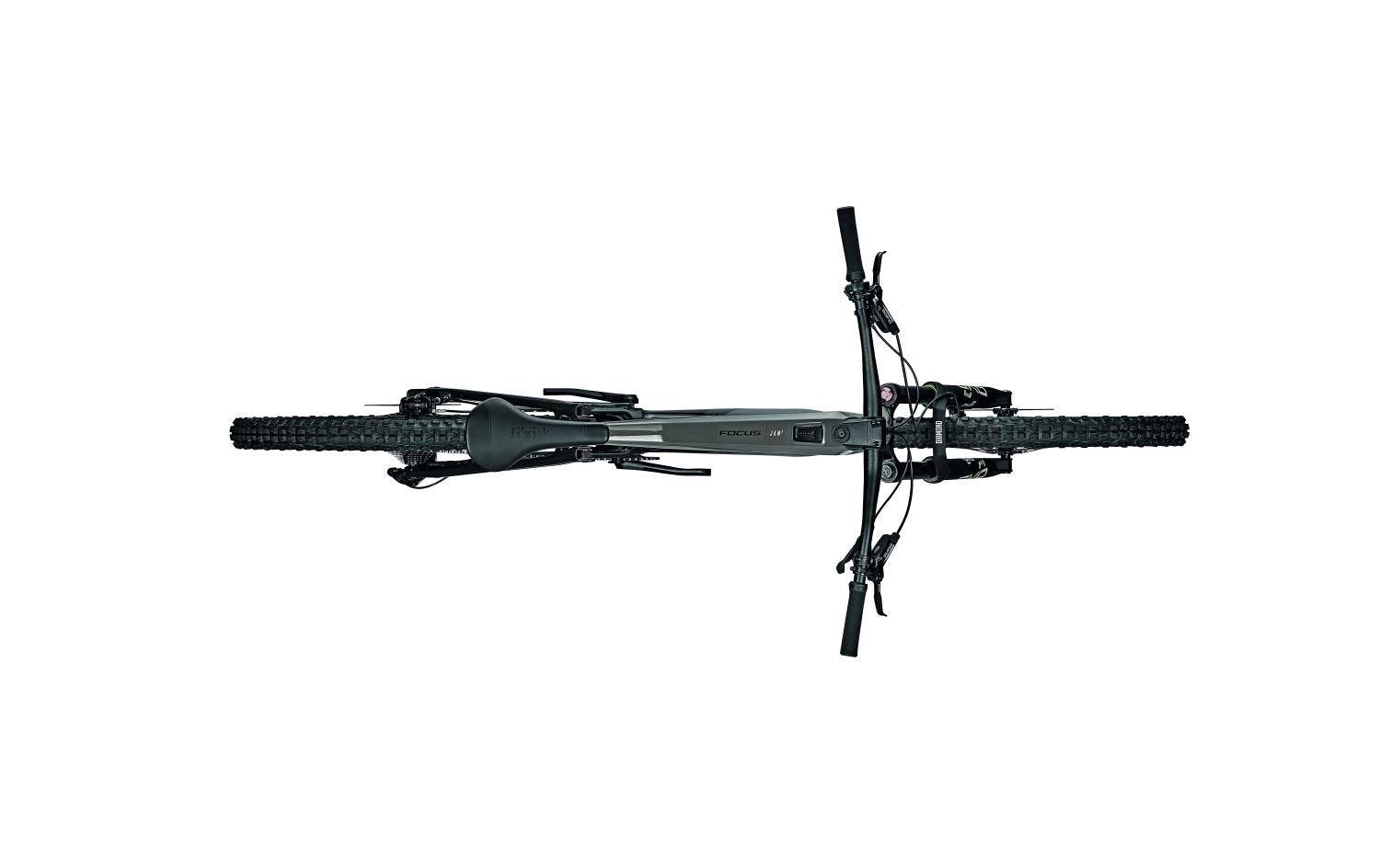

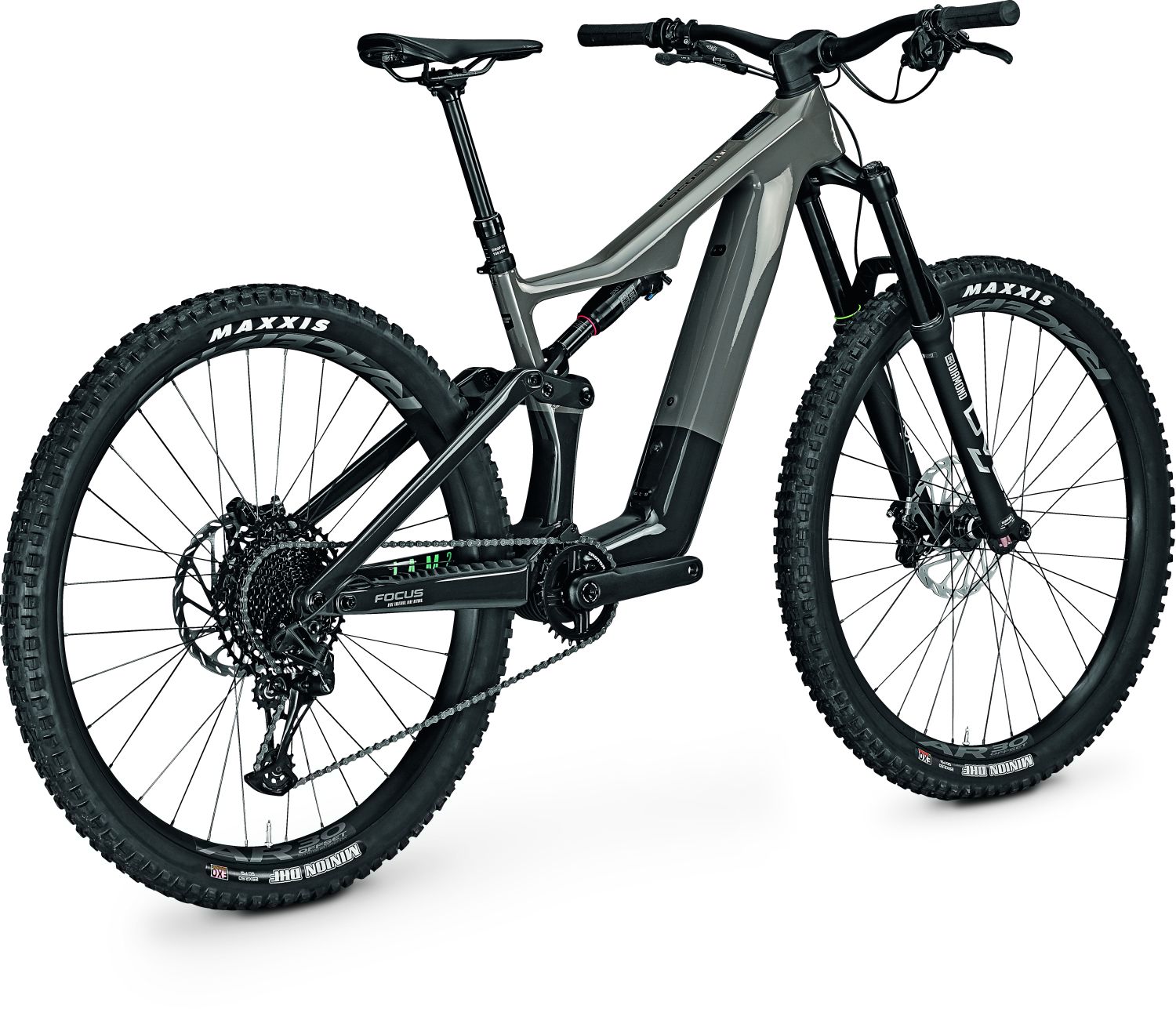

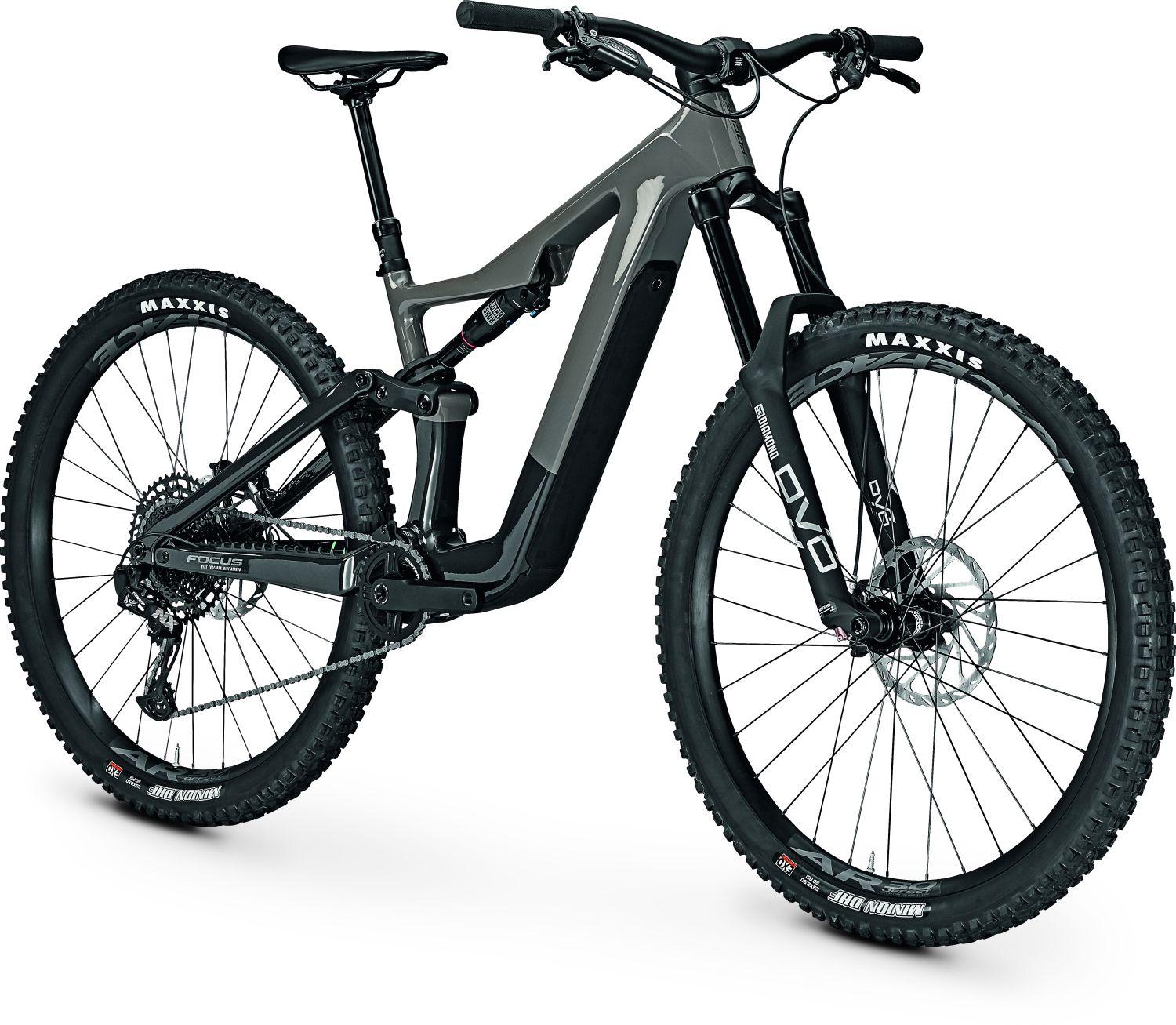

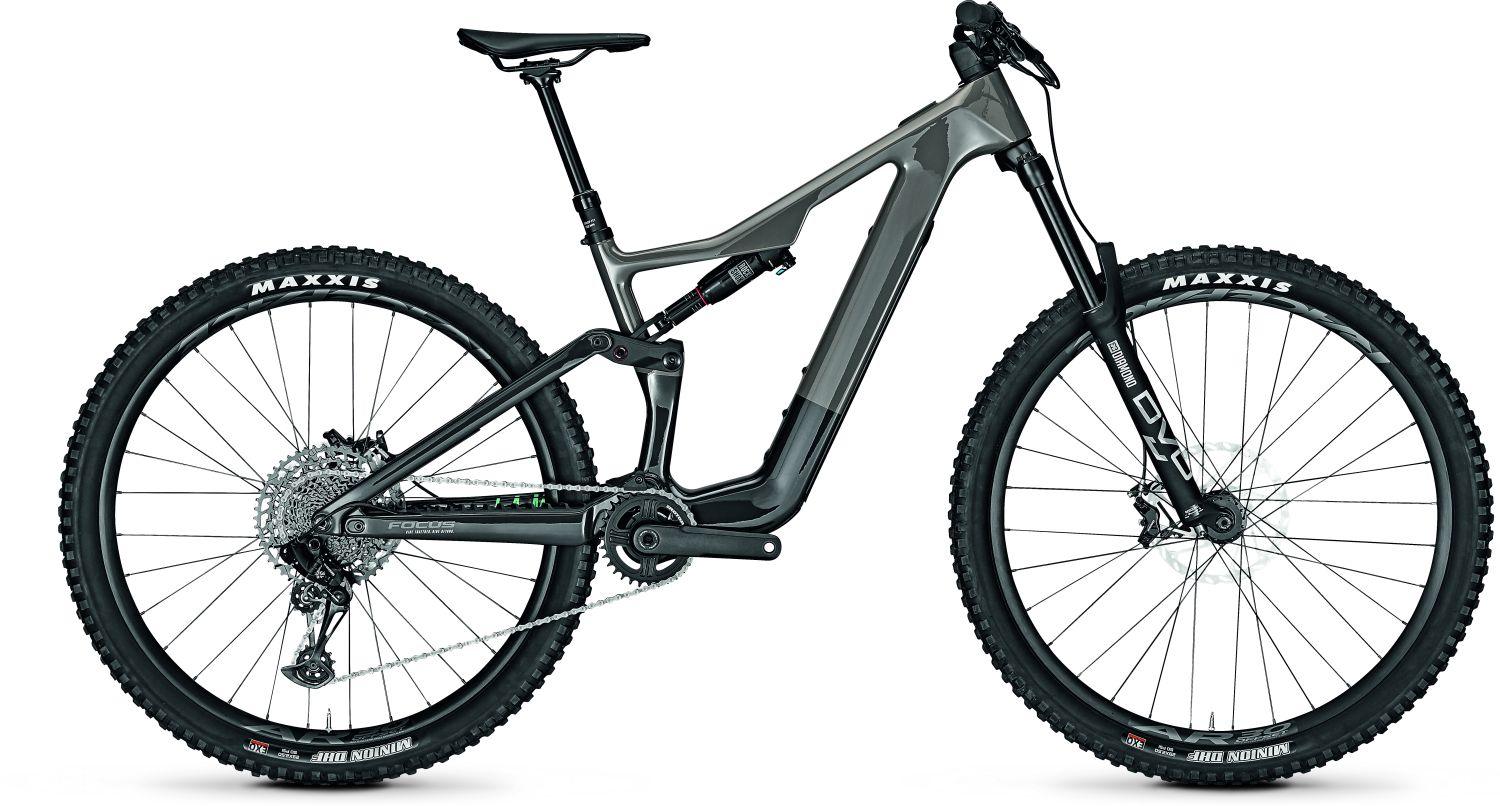

Focus 23 JAM² SL 8.7 2023 | Light E-MTB Fully
The JAM² SL 8.7 is the perfect entry-level bike into the world of light e-MTBs and ready for any trail. The full carbon frame optimizes weight without compromising stiffness and usability. The top tube is optimized in the most radical and minimalist way. Thanks to the partial integration of the damper, the JAM² SL 8.7 has a low standover height, which offers you plenty of freedom of movement. Despite the integration, all adjustment elements of the damper are easy to access. Since the motor and battery of our JAM² SL 8.7 are completely integrated into the down tube, this e-MTB not only rides like a pure bike, but also looks like one. The FAZUA Ride 60 drive system offers you a natural driving experience and still gives you full support. The compact and light, yet powerful drive unit has 60 Nm of torque and a maximum power of 450 W. Thanks to the boost function, you can tackle even the steepest climbs. Thanks to the high efficiency of the FAZUA system and a 430 Wh battery, your ride won't stop until you've reached your very own rider's high. If you still need more energy, a range extender offers another 210 Wh. The drive system already has three different driving modes. You can also adjust the motor support to suit your driving preferences using the FAZUA app. This means you can adjust the maximum power (Max Power), the support ratio (Support Relation) as well as the responsiveness and acceleration (Ramp-up) according to your personal needs. The geometry of the JAM² SL 8.7 can be adjusted via two points: steering angle and chainstay length. The steeper head angle of 65.5° results in more agile handling of the bike, while the flatter position of 64.5° ensures a more downhill-oriented setting. Adjusting the chainstays from 440 to 447 mm via the FLIP CHIPs changes the entire set-up of your bike. If you set the FLIP CHIPs to a long position, the JAM² SL 8.7 is more stable and makes steep climbs easier, while the short setting results in a more agile geometry. For the JAM² SL 8.7 we have adapted our FOLD (FOCUS Optimized Linkage Design) and reduced the number of joint parts, thereby significantly saving weight. The new kinematics further reduces the influence of braking and gives you maximum control over your bike in every situation.
Technische Spezifikationen
* Spezifikationen sind Änderungen vorbehalten
Rahmen
Carbon technology frame, 150mm FOLD GEN3 kinematics, 148x12 thru axle, internal cable routing, post mount 180 mm
Steuersatz
ACROS ZS56/ZS56 (ICR), FOCUS CIS Integrated, 1.5/1.5" angle headset
Gabel
DVO Diamond E3, 110x15 mm, 44 mm rake
Dämpfer
Rock Shox Deluxe Select+, 210/55 mm, hardware: 25.0 x 8.0 mm, no bushing
Antrieb
Fazua Ride 60, 60 Nm, 450 W max.
Akku
430 Wh
Display
Fazua LED Hub + Ring Control
Felge
RaceFace AR30 Offset
Naben
VR: Novatec D041, 15x110 mm | HR: Novatec D462, 12x148 mm
Reifen
Maxxis Minion DHF, EXO, 63-622
Laufradgröße
29"
Schaltwerk
SRAM NX Eagle, 12-speed
Schalthebel
SRAM SX Eagle, 12-speed
Kette
SRAM SX Eagle, 12-speed
Kurbel
Samox EC40 ISIS
Kassette
SRAM NX Eagle, 12-speed
Bremsen
SRAM GUIDE T
Lenker
Aluminum, 800 mm, rise: 30 mm, backsweep: 9°
Vorbau
FOCUS CIS integrated, 50 mm, 0°, 35 mm, aluminum
Sattel
fi'zi:k Taiga
Sattelstütze
Post Modern dropper post PM-MT171, 31.6 mm
Pedale
MTB, with reflector
